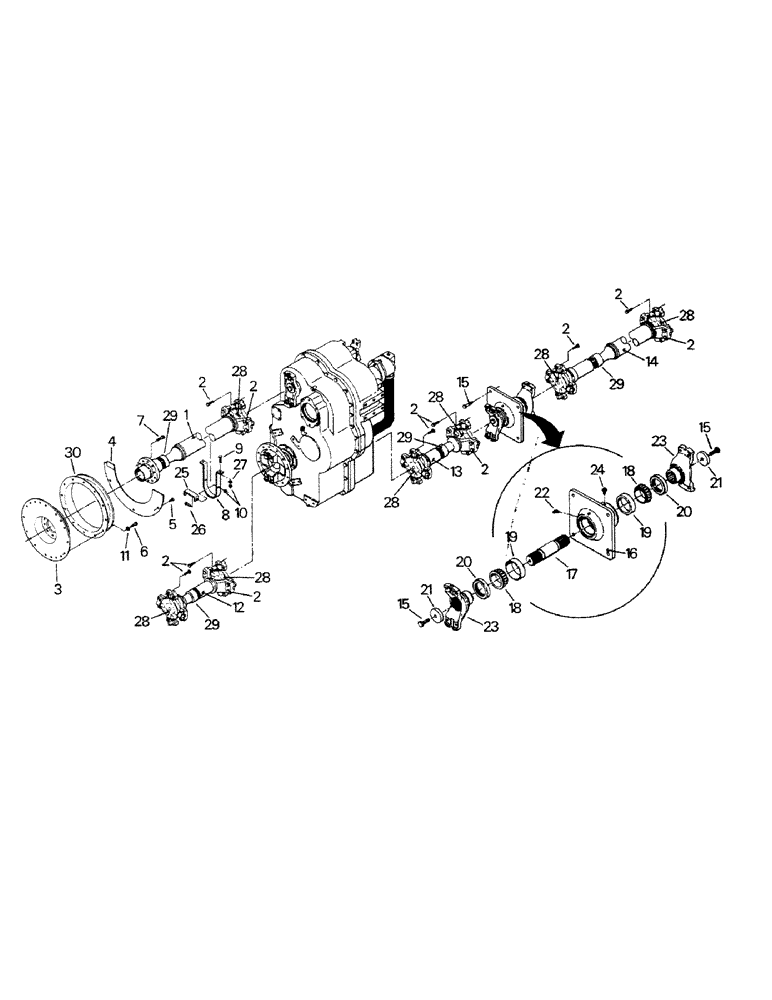

Запчасти Case IH CP-1325 (04-39) - DRIVESHAFTS AND MOUNTING (04) - Drive Train

1

90-2880T91

DRIVE SHAFT

DRIVESHAFT ASSY

1шт.

2

19-477

BOLT,Hex, 1/2" - 20 x 2", Gr 8

CAPSCREW

56шт.

3

90-2883T2

DAMPER

VIBRATION DAMPER

1шт.

4

90-4390T1

COVER

FLYWHEEL COVER, Replaces 90-2881T1

2шт.

Superseded - old P/N is not used any longer; the new P/N is to be used in all cases. Old P/N should be removed from existing inventory. It is recommended that the old part not be used under any circumstances.

1шт.

Part of P/N 35-1554T91 dust slinger kit

1шт.

5

9423155

BOLT,7/16" - 14 x 3/4", Gr 8

CAPSCREW

6шт.

6

9427321

BOLT,3/8" - 16 x 1", Gr 8

CAPSCREW

12шт.

7

9419153

BOLT,5/8" - 11 x 1 1/2", Gr 5

CAPSCREW

10шт.

8

90-4004T2

BRACKET

1шт.

9

19-42

BOLT,1/2" - 13 x 2 1/4", Gr 5

CAPSCREW

2шт.

10

19-81

NUT,1/2"-13, G5

4шт.

11

19-860

WASHER

12шт.

12

90-1901T91

DRIVE SHAFT

DRIVESHAFT ASSY

1шт.

13

90-1902T91

DRIVE SHAFT

DRIVESHAFT ASSY

1шт.

14

90-1903T91

DRIVE SHAFT

DRIVESHAFT ASSY

1шт.

90-1863T91

BEARING ASSY

HANGER BEARING, consists of 15-24

1шт.

15

19-822

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8, Full Thd

CAPSCREW

6шт.

16

90-1929T1

HOUSING

1шт.

17

90-1930T1

SHAFT

1шт.

18

90-1862T1

ROLLER BEARING,2.625" ID x 1.183"

2шт.

19

90-1322T1

BEARING, CUP,4.4375" OD x 1.1875"

BEARING CUP

2шт.

20

90-1934T2

SEAL

Replaces 90-1934T1

2шт.

Superseded - old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

21

19-5733

WASHER

2шт.

22

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

NIPPLE, LUBE, 45º, 1/8" NPT x 7/8" lg

1шт.

23

90-1489T1

YOKE

2шт.

24

178779

FITTING

RELIEF FITTING (not used on later models)

2шт.

25

90-3706T1

STRAP

this strap has been factory installed since 12-1-82, however it may be retrofitted into early models built before that date

1шт.

26

19-44

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

CAPSCREW

2шт.

27

19-463

WASHER,1/2", SAE

2шт.

28

1-9994T1

U-JOINT SPIDER

SPIDER & BEARING ASSY

1шт.

29

2-3842T1

SEAL RETAINER

STUFFING CAP ASSY (incl P/N's 17-170, 17-172 & 17-171 which may no longer be purchased separately)

1шт.

30

90-4389T1

SLINGER

FLYWHEEL SLINGER, Replaces 90-2881T1

1шт.

Superseded - old P/N is not used any longer; the new P/N is to be used in all cases. Old P/N should be removed from existing inventory. It is recommended that the old part not be used under any circumstances.

1шт.

Part of P/N 35-1554T91 dust slinger kit

1шт.

35-1554T91

FLYWHEEL

DUST SLINGER KIT, consists of ref. 4 and 30

1шт.
