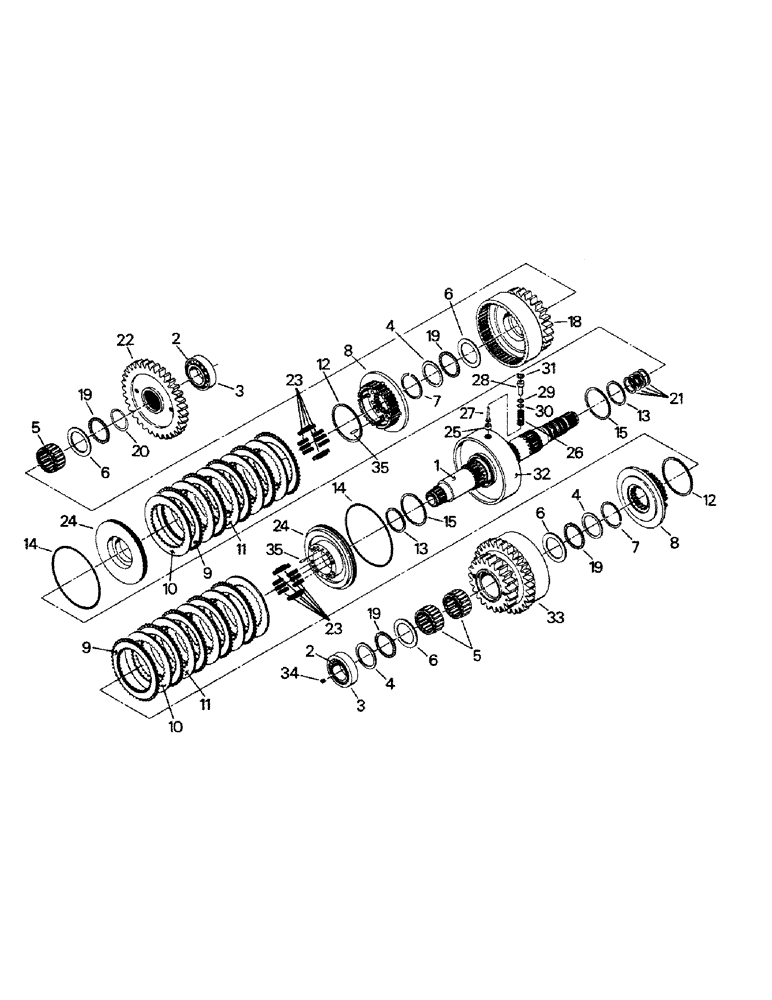

Запчасти Case IH CP-1325 (04-32) - 7" CLUTCH PACK ASSEMBLY (04) - Drive Train

90-3001T91

CLUTCH PACK

7" CLUTCH PACK ASSY, consists of ref. nos. 1-35

1шт.

1

90-3269T91

SHAFT

CLUTCH SHAFT ASSY (refs. 16, 17, 32 & 34)

1шт.

2

1-3297

ROLLER BEARING,2.1654" ID x 1.1417"

BEARING CONE

2шт.

3

1-3296

BEARING CUP,3.7402" OD x 0.9252"

2шт.

4

90-3027T1

WASHER

THRUST WASHER

3шт.

5

90-3226T1

BEARING CUP,2.5" ID x 2.8767" OD x 1.5"

ROLLER BEARING

3шт.

6

90-3028T1

WASHER

THRUST WASHER

4шт.

7

90-3293T1

RING, SNAP

SNAP RING

2шт.

8

90-3167T1

HUB

CLUTCH HUB

2шт.

9

90-3047T1

LARGE PLATE

FACED PLATE

10шт.

10

90-3048T1

LARGE PLATE

STEEL PLATE (coned)

4шт.

11

90-3049T1

LARGE PLATE

STEEL PLATE (flat)

6шт.

12

90-3216T1

OIL SEAL

PISTON RING

2шт.

Wire harness connector kit P/N 20-1839T1 is available for field replacement of the engine wire harness end where it connects to the main cab wire harness at the firewall. The kit contains all necessary connectors and terminals for the replacement.

1шт.

Part of trans gasket overhaul kit P/N 90-3842T91

1шт.

13

90-3213T1

OIL SEAL

PISTON RING

2шт.

Wire harness connector kit P/N 20-1839T1 is available for field replacement of the engine wire harness end where it connects to the main cab wire harness at the firewall. The kit contains all necessary connectors and terminals for the replacement.

1шт.

Part of trans gasket overhaul kit P/N 90-3842T91

1шт.

14

90-3316T1

SEALING RING

SEALING RING

2шт.

Part of trans gasket overhaul kit P/N 90-3842T91

1шт.

15

90-3215T1

OIL SEAL

PISTON RING

2шт.

Part of trans gasket overhaul kit P/N 90-3842T91

1шт.

16

NSS

NOT SOLD SEPARAT

DOWEL PIN (not shown) ( see ref. 1)

1шт.

17

NSS

NOT SOLD SEPARAT

SNAP RING (not shown) (ref. 1)

2шт.

18

90-3243T1

GEAR

& RING ASSY

1шт.

19

90-3227T1

THRUST BEARING,2.507" ID x 3.24" OD x 0.781"

THRUST BEARING

4шт.

20

90-3296T1

OIL SEAL

SNAP RING

1шт.

21

90-3273T1

SEALING RING

SEALING RING

4шт.

Part of trans gasket overhaul kit P/N 90-3842T91

1шт.

22

90-3143T1

GEAR

INPUT GEAR

1шт.

23

90-3013T1

SPRING

RETURN SPRING

24шт.

24

90-3258T1

PISTON

CLUTCH PISTON

2шт.

90-2977T1

VALVE

DUMP VALVE KIT, consists of ref. nos. 25-30

2шт.

25

NSS

NOT SOLD SEPARAT

FEEDBACK VALVE

2шт.

26

NSS

NOT SOLD SEPARAT

DUMP VALVE SPRING

2шт.

27

NSS

NOT SOLD SEPARAT

DUMP VALVE STEM

2шт.

28

NSS

NOT SOLD SEPARAT

DUMP VALVE SLEEVE

2шт.

29

NSS

NOT SOLD SEPARAT

SHIM

1шт.

30

NSS

NOT SOLD SEPARAT

SHIM

1шт.

31

19-5823

RING

SNAP RING

2шт.

32

NSS

NOT SOLD SEPARAT

PISTON HOUSING ASSY (see ref. 1)

1шт.

33

90-3239T1

GEAR, RING

GEAR & RING ASSY

1шт.

34

90-3219T1

PLUG

ORIFICED PLUG (see ref. 1)

2шт.

35

454512

SHIM

3/16" x 3/4", Slotted, on later models these pins will now be located inside the return springs, ref. 23, the P/N will change to 455598 and the qty will be 24

4шт.

Ref. 35 roll pin - Per conversation with Steve Bergeson/Fargo-Eng. this pin goes inside of spring and is loose, this pin keeps the spring from bending over, gives resistance as piston tries to turn it.

1шт.

90-3842T91

GASKET KIT

OVERHAUL KIT trans gasket, consists of ref. 12 - 15 and 21

1шт.
