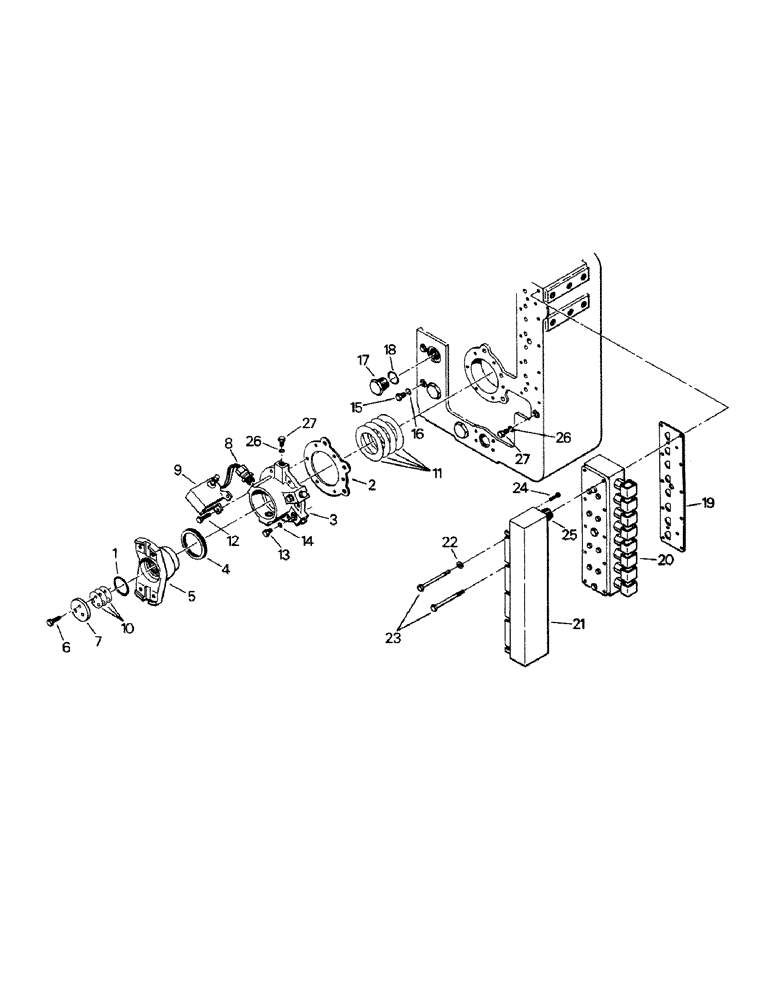

Запчасти Case IH CP-1325 (04-29) - TRANSMISSION ASSEMBLY (04) - Drive Train

1

90-2983T1

SEAL

O-RING

1шт.

Part of trans gasket overhaul kit P/N 90-3842T91

1шт.

2

90-3078T2

GASKET

replaces 90-3078T1

1шт.

Superseded - old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

3

90-3267T1

BEARING RETAINER, Used before S/N 2660, Serial Range: -2660

1шт.

Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

90-4182T1

RETAINER

BEARING RETAINER, Used after S/N 2659 (approx 4-4-83), Start Serial: 2659

1шт.

The difference between the two bearing retainers, ref. 3, is in the threads for the magnetic pickup, ref. 8, bearing retainer P/N 90-4182T1 will replace P/N 90-3267T1, however, magnetic pickup P/N 20-1912T1 must also be used.

1шт.

4

90-3312T1

OIL SEAL

SEAL

1шт.

Part of trans gasket overhaul kit P/N 90-3842T91

1шт.

5

90-3195T1

FORK

OUTPUT YOKE

1шт.

6

19-479

CAPSCREW,Hex, 3/8" - 24 x 1", Gr 5

3шт.

7

90-3205T1

WASHER

RETAINER WASHER

1шт.

8

90-3232T1

SENSOR

MAGNETIC PICKUP, 3/4" threads, Used before S/N 2660, Serial Range: -2660

1шт.

The difference between the two bearing retainers, ref. 3, is in the threads for the magnetic pickup, ref. 8, bearing retainer P/N 90-4182T1 will replace P/N 90-3267T1, however, magnetic pickup P/N 20-1912T1 must also be used.

1шт.

20-1912T1

MAGNET

IC PICKUP, 5/8" threads, Replaces 20-1854T1, Used after S/N 2659 (approx 4-4-83), Start Serial: 2659

1шт.

Superseded - old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

9

90-3162T1

GUARD

MAGNETIC PICKUP GUARD, early models only

1шт.

10

90-3060T1

SHIM

.003

1шт.

90-3061T1

SHIM

.010

1шт.

11

90-3109T1

SHIM

.010

1шт.

90-3110T1

SHIM

.0125

1шт.

90-2971T1

SHIM

.015

1шт.

90-3111T1

SHIM

.020

1шт.

12

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAPSCREW

6шт.

13

9410356

PLUG

4

3шт.

14

90-3304T1

O-RING,0.356" ID x 0.495" OD x 0.075"

3шт.

Part of trans gasket overhaul kit P/N 90-3842T91

1шт.

35-1481T91

BOLT

OIL LEVEL GAUGE KIT, replace oil leve gauge P/N 90-3233T1, consists of ref. 15 and 16

1шт.

Superseded - old P/N is not used any longer; the new P/N is to be used in all cases. Old P/N should be removed from existing inventory. It is recommended that the old part not be used under any circumstances.

1шт.

15

19-633

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

CAPSCREW

2шт.

16

90-3835T1

SEALING WASHER

SEAL WASHER

2шт.

17

31-1871

PLUG

20, qty. 3 on early models

2шт.

18

90-3305T1

O-RING,1.485" ID x 1.711" OD x 0.122"

qty. 3 on early models

2шт.

Part of trans gasket overhaul kit P/N 90-3842T91

1шт.

19

90-3154T1

GASKET

1шт.

Part of trans gasket overhaul kit P/N 90-3842T91

1шт.

20

TRANS RANGE SELECTOR VALVE ASSY., see Figure 04-38

1шт.

21

90-3187T1

JUNCTION BOX

1шт.

22

90-3310T1

WASHER

3шт.

23

19-725

BOLT,Hex, 5/16" - 18 x 3 1/4", Gr 5

CAPSCREW

10шт.

24

159229

SCREW,Cross Pan Hd, #6 - 32 x 1/4"

MACHINE SCREW

4шт.

25

90-3157T1

CONNECTION,ELECTRIC

RECEPTACLE ASSY

1шт.

26

90-3303T1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.

Part of trans gasket overhaul kit P/N 90-3842T91

1шт.

27

9410358

PLUG

6

3шт.

90-3842T91

GASKET KIT

OVERHAUL KIT trans gasket, consists of ref. 1, 4, 14, 19 and 26

1шт.
