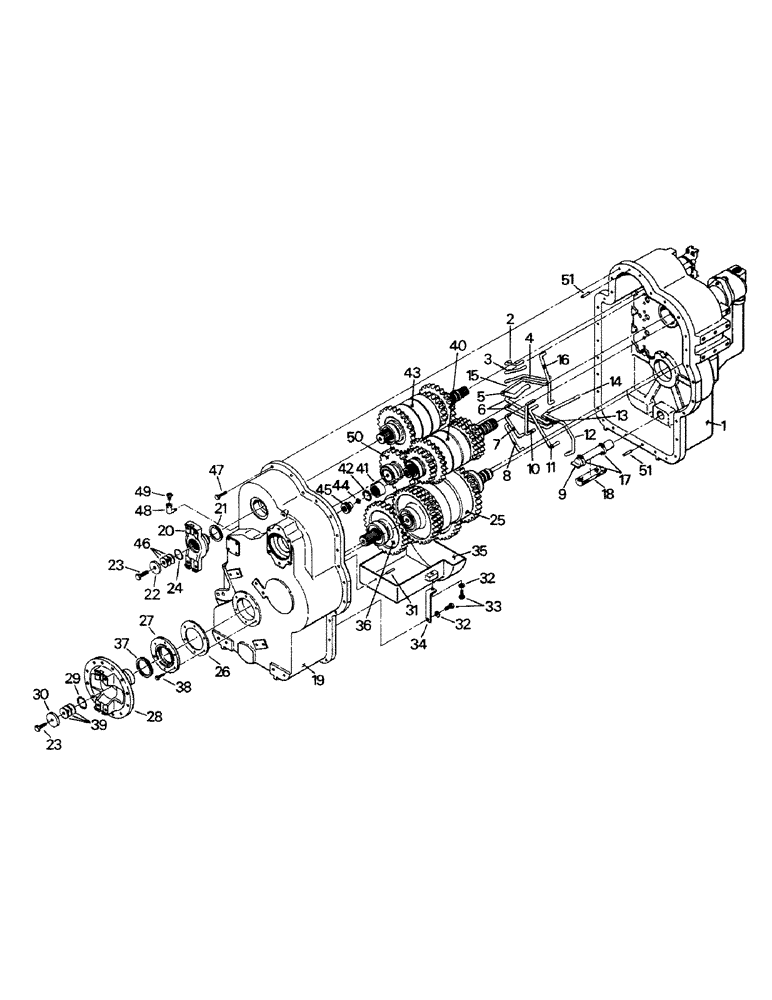

Запчасти Case IH CP-1325 (04-25) - TRANSMISSION ASSEMBLY (04) - Drive Train

90-1350T92

PAN

TRANS ASSY (incl all refs. on figures 4-20 to 4-32) Replaces 90-1350T91, Use before S/N 2660, Includes: Ref. 1 - 16

1шт.

Can be used together; they cannot be intermixed.

1шт.

Superseded - old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

90-3008T91

VALVE

TRANS REAR HOUSING ASSY, Used after S/N 2659 (approx 4-4-83), Includes: Ref. 1 - 16

1шт.

These rear housing assys, refs. 1 - 16, are interchangeable, however, the individual parts are not, the items noted before the S/N break can be used togethet and those marked after the S/N break can be used together, they cannot be intermixed, no S/N break indicates usage on both rear housing assys.

1шт.

Can be used together; they cannot be intermixed.

1шт.

Superseded - old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

90-4161T91

HOUSING

TRANS REAR HOUSING ASSY (see fig. note), consists of ref. 1 - 16

1шт.

These rear housing assys, refs. 1 - 16, are interchangeable, however, the individual parts are not, the items noted before the S/N break can be used togethet and those marked after the S/N break can be used together, they cannot be intermixed, no S/N break indicates usage on both rear housing assys.

1шт.

Can be used together; they cannot be intermixed.

1шт.

Superseded - old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

1

NSS

NOT SOLD SEPARAT

REAR HOUSING

1шт.

2

90-3104T1

TUBE, Used before S/N 2660, Serial Range: -2660

1шт.

90-4162T1

TUBE, Used after S/N 2659 (approx 4-4-83), Start Serial: 2659

1шт.

3

90-3105T1

REVERSE CONTROL TUBE, Used before S/N 2660, Serial Range: -2660

1шт.

90-4163T1

TUBE

REVERSE CONTROL TUBE, Used after S/N 2659 (approx 4-4-83), Start Serial: 2659

1шт.

4

90-3277T1

TUBE, Used before S/N 2660, Serial Range: -2660

1шт.

90-4166T1

TUBE, Used after S/N 2659 (approx 4-4-83), Start Serial: 2659

1шт.

5

90-3108T1

MAIN TUBE

1шт.

6

90-3118T1

TUBE, Used before S/N 2660, Serial Range: -2660

2шт.

90-4164T1

TUBE, Used after S/N 2659 (approx 4-4-83), Start Serial: 2659

1шт.

7

90-3120T1

RANGE CONTROL TUBE, Used before S/N 2660, Serial Range: -2660

1шт.

90-4168T1

RANGE CONTROL TUBE, Used after S/N 2659 (approx 4-4-83), Start Serial: 2659

1шт.

8

90-3119T1

RANGE CONTROL TUBE, Used before S/N 2660, Serial Range: -2660

1шт.

90-4167T1

RANGE CONTROL TUBE, Used after S/N 2659 (approx 4-4-83), Start Serial: 2659

1шт.

9

90-3281T1

TUBE

SUCTION TUBE

1шт.

10

90-3280T1

TUBE

LUBE TUBE

1шт.

11

90-3279T1

TUBE

LUBE TUBE

1шт.

12

90-3278T1

TUBE

LUBE TUBE

1шт.

13

90-3121T1

TUBE

1шт.

14

9-3106T1

LUBE TUBE

1шт.

15

90-3276T1

TUBE, Serial Range: -2660

1шт.

90-4165T1

TUBE, Start Serial: 2659

1шт.

16

90-3275T1

TUBE

LUBE TUBE

1шт.

17

32-245

HOSE CLAMP,#24, 1.06/2.00 Type F Worm

CLAMP

2шт.

18

90-3055T1

SCREEN

SUCTION SCREEN

1шт.

19

90-3265T91

FRONT HOUSING ASSY., included ref. 51

1шт.

20

90-3196T1

FORK

INPUT YOKE

1шт.

21

90-3313T1

OIL SEAL

1шт.

22

90-3207T1

WASHER

RETAINER WASHER

1шт.

23

223736

BOLT,Hex, 5/8" - 18 x 1.50", Gr 8

CAPSCREW

2шт.

24

90-3306T1

O-RING,0.21" Thk x 1.725" ID, -327, Cl 5, 75 Duro

1шт.

Part of trans gasket overhaul kit P/N 90-3842T91

1шт.

25

9" CLUTCH PACK ASSY., see Figure 04-34

1шт.

26

90-3075T1

GASKET

1шт.

Part of trans gasket overhaul kit P/N 90-3842T91

1шт.

27

90-3158T1

RETAINER

BEARING RETAINER

1шт.

28

90-3197T1

FLANGE

OUTPUT/BRAKE YOKE

1шт.

29

90-2983T1

SEAL

O-RING

1шт.

Part of trans gasket overhaul kit P/N 90-3842T91

1шт.

30

90-3209T1

WASHER

RETAINER WASHER

1шт.

31

9418057

PIN,3/8" x 2 1/4", Slotted

1шт.

32

90-3204T1

WASHER

4шт.

33

9409258

BOLT (SPREADER),1/2" - 13 x 1", Gr 8

CAPSCREW

4шт.

34

90-3116T1

STRAP

OIL BAFFLE STRAP

2шт.

35

90-3150T1

BAFFLE

OIL BAFFLE

1шт.

36

8" CLUTCH PACK ASSY., see Figure 04-33

1шт.

37

90-3312T1

OIL SEAL

SEAL

1шт.

Part of trans gasket overhaul kit P/N 90-3842T91

1шт.

38

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAPSCREW

6шт.

39

90-3058T1

SHIM

.003

1шт.

90-3059T1

SHIM

.10

1шт.

40

7" CLUTCH PACK ASSY., see Figure 04-32

1шт.

41

90-3093T1

COUPLING

PUMP COUPLING

1шт.

42

19-5775

RING

SNAP RING

1шт.

43

7" CLUTCH PACK ASSY., see Figure 04-31

1шт.

44

19-5837

RING, SNAP

SNAP RING

1шт.

45

90-3070T1

ADAPTER

PUMP DRIVE ADAPTER

1шт.

46

90-3062T1

SHIM

.003

1шт.

90-3063T1

SHIM

.010

1шт.

90-3064T1

SHIM

.020

1шт.

47

19-221

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

CAPSCREW

30шт.

48

31-219

ELBOW

STREET ELBOW, not used on later models

1шт.

49

90-3231T1

BREATHER

1шт.

50

COMPOUND SHAFT, see Figure 04-30

1шт.

51

19-5840

DOWEL,1/2" x 1"

PIN, included with ref. 19

2шт.

90-3842T91

GASKET KIT

OVERHAUL KIT trans gasket, consists of ref. 24, 26, 29 and 37

1шт.
