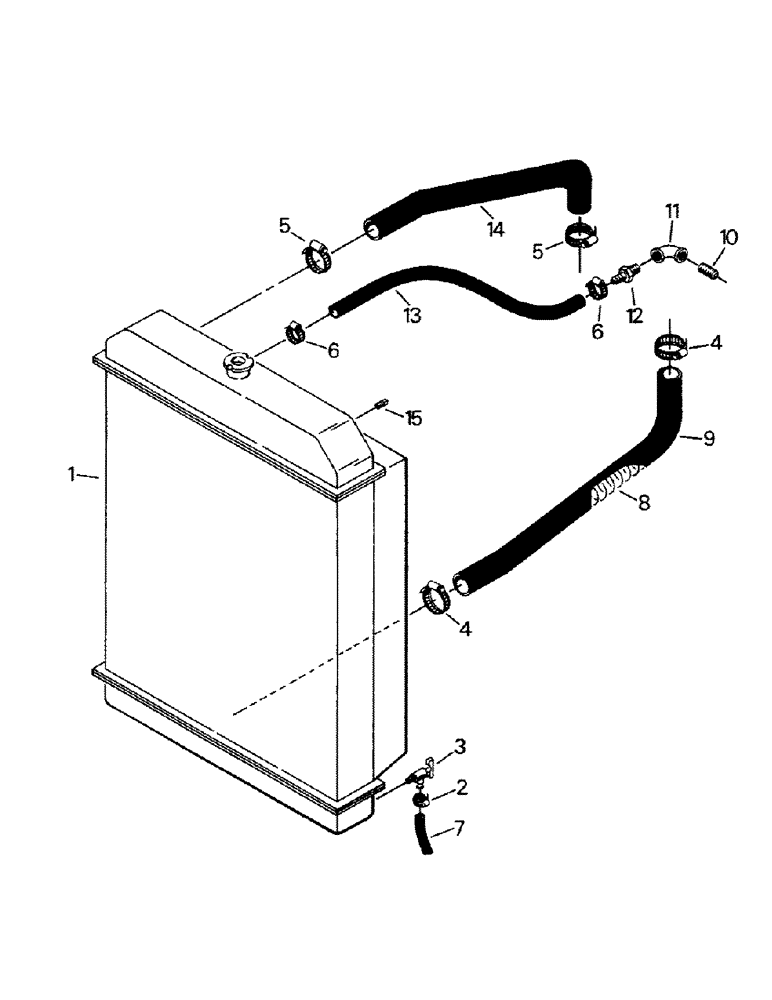

Запчасти Case IH CP-1325 (04-19) - RADIATOR AND HOSES, CAT 3406 ENGINE (04) - Drive Train

1

RADIATOR ASSY., see Figure 04-21)

1шт.

2

32-59

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP

1шт.

These Refs. 2 and 7, are only used on early models they are not needed and will not be used on later models.

1шт.

3

31-159

COCK, DRAIN

DRAIN COCK

1шт.

4

32-22

HOSE CLAMP,#52, 2.81/3.75 Type F Worm

CLAMP

2шт.

5

32-24

HOSE CLAMP,#40, 2.06/3.00 Type F Worm

CLAMP

2шт.

6

32-27

HOSE CLAMP,#20, 0.81/1.75 Type F Worm

CLAMP

2шт.

7

31-1208

HOSE,0.38" ID x 12.00"

1шт.

These Refs. 2 and 7, are only used on early models they are not needed and will not be used on later models.

1шт.

8

90-2289T1

SPRING

HOSE SPRING

1шт.

9

90-1516T1

RADIATOR HOSE,3.00" ID x 23.34", SAE 20R4

3.00" ID x 23.34", SAE 20R4

1шт.

10

31-275

LUBE NIPPLE

NIPPLE

1шт.

11

31-44

ELBOW

1шт.

12

31-318

HOSE

BARBED FITTING

1шт.

13

31-1505

HOSE,1.00" ID x 38.00"

1шт.

14

90-2275T1

RADIATOR HOSE,2.50" ID x 22.75", SAE 20R4

2.50" ID x 22.75", SAE 20R4

1шт.

15

31-37

PLUG

PIPE PLUG

1шт.
