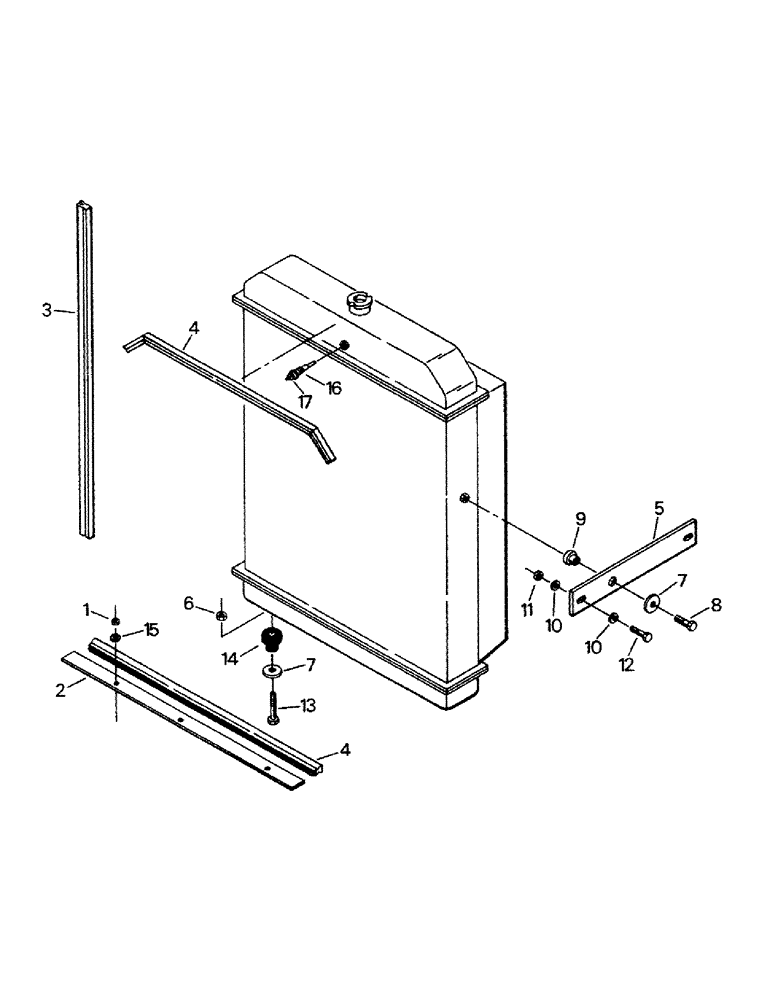

Запчасти Case IH CP-1325 (04-17) - RADIATOR MOUNTING, EARLY STYLE (04) - Drive Train

1

19-77

NUT,5/16"-18, G5

3шт.

2

90-3534T1

PLATE

1шт.

3

90-2895T1

SEAL

2шт.

4

90-2896T1

SEAL

2шт.

5

90-1665T1

RADIATOR SUPPORT

2шт.

6

19-82

LOCK NUT

LOCK NUT

2шт.

7

19-806

WASHER

4шт.

8

19-269

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

CAPSCREW

2шт.

9

18-511

MOUNTING PARTS

CENTER MOUNT

2шт.

10

19-107

WASHER

8шт.

11

19-78

SPECIAL NUT,3/8"-16, G5

4шт.

12

19-18

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

CAPSCREW

4шт.

13

19-47

BOLT,1/2" - 13 x 2 1/2", Gr 5

CAPSCREW

2шт.

14

47-4208

RUBBER BUSHING

RUBBER MOUNT

2шт.

15

19-700

WASHER,5/16"

3шт.

16

20-1248T1

SENSOR

PROBE

1шт.

17

19-481

SERRATED NUT

KEP NUT

1шт.
