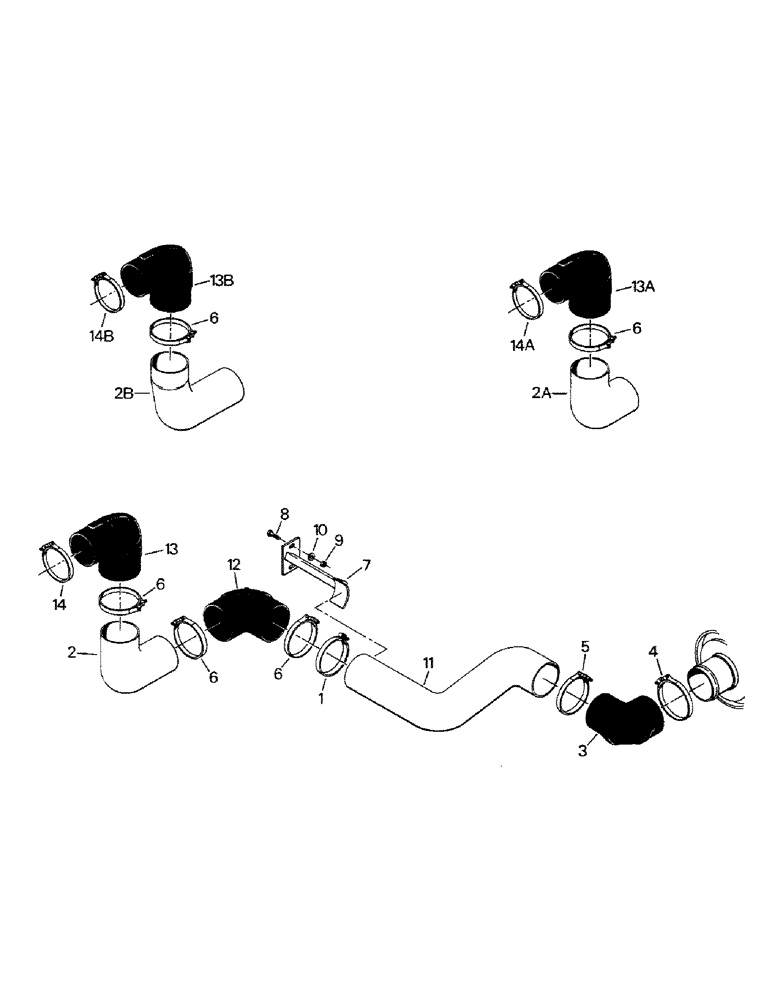

Запчасти Case IH CP-1325 (04-15) - AIR INTAKE SYSTEM (04) - Drive Train

1

1-2635

CLAMP

1шт.

2

90-2907T1

ELBOW, Cat 3406 engine, 325 HP

1шт.

2a

90-2906T1

TUBE

ELBOW, Cat 3406 engine, 360 and 400 HP

1шт.

2b

90-2908T2

TUBE,6" OD

ELBOW, Cummins 855 engine, Replaces 90-2908T1

1шт.

Superseded - old P/N is not used any longer; the new P/N is to be used in all cases. Old P/N should be removed from existing inventory. It is recommended that the old part not be used under any circumstances.

1шт.

3

47-3309

ELBOW

for 16" air cleaner

1шт.

9-22

ELBOW

for 14"air cleaner

1шт.

4

32-287

CLAMP,#212, 7.50"-7.71", T-Bolt

for 16" air cleaner

1шт.

32-129

CLAMP,#172, 6.25"-6.56", T-Bolt

Replaces 21-2269, for 14" air cleaner

1шт.

When using the replaced clamps use qty 2 per joint, when using the other clamps use qty 1 per joint, they are interchangeable

1шт.

5

32-1020

COTTER PIN,5/32" x 1 1/4"

CLAMP, for 16" air cleaner

1шт.

32-129

CLAMP,#172, 6.25"-6.56", T-Bolt

Replaces 31-2269, for 14" air cleaner

1шт.

When using the replaced clamps use qty 2 per joint, when using the other clamps use qty 1 per joint, they are interchangeable

1шт.

6

32-129

CLAMP,#172, 6.25"-6.56", T-Bolt

Replaces 31-2269

3шт.

When using the replaced clamps use qty 2 per joint, when using the other clamps use qty 1 per joint, they are interchangeable

1шт.

7

90-3525T1

MOUNT

1шт.

8

19-45

BOLT,1/2" - 13 x 1 1/2", Gr 5

CAPSCREW

2шт.

9

19-82

LOCK NUT

LOCK NUT

2шт.

10

19-463

WASHER,1/2", SAE

2шт.

11

90-2905T1

INTAKE TUBE, for 16" air cleaner 6 mm OD x 41.35, 12.46 mm L

1шт.

90-3978T1

TUBE,6 mm OD x 43.60, 15.40 mm L

INTAKE TUBE, for 14" air cleaner

1шт.

12

9-22

ELBOW

1шт.

13

90-1536T1

ELBOW

Cat 3406 engine, 325 HP

1шт.

13a

9-22

ELBOW

Cat 3406 engine, 360 and 400 HP

1шт.

13b

9-45

ELBOW

Cummins 855 engine

1шт.

Heat shield P/N 90-3716T1, not shown, is now used between ref. 13B and the exhaust manifold on all Cummins 855 engines

1шт.

14

32-128

CLAMP,#140, 5.25"-5.56", T-Bolt

Replaces 31-2267, Cat 3406 engine, 325 HP

1шт.

When using the replaced clamps use qty 2 per joint, when using the other clamps use qty 1 per joint, they are interchangeable

1шт.

14a

32-129

CLAMP,#172, 6.25"-6.56", T-Bolt

Replaces 31-2269, Cat 3406 engine, 360 and 400 HP

1шт.

When using the replaced clamps use qty 2 per joint, when using the other clamps use qty 1 per joint, they are interchangeable

1шт.

14b

32-133

CLAMP,#156, 5.75"-6.06", T-Bolt

Replaces 31-2268, Cummins 855 engine

1шт.

When using the replaced clamps use qty 2 per joint, when using the other clamps use qty 1 per joint, they are interchangeable

1шт.
