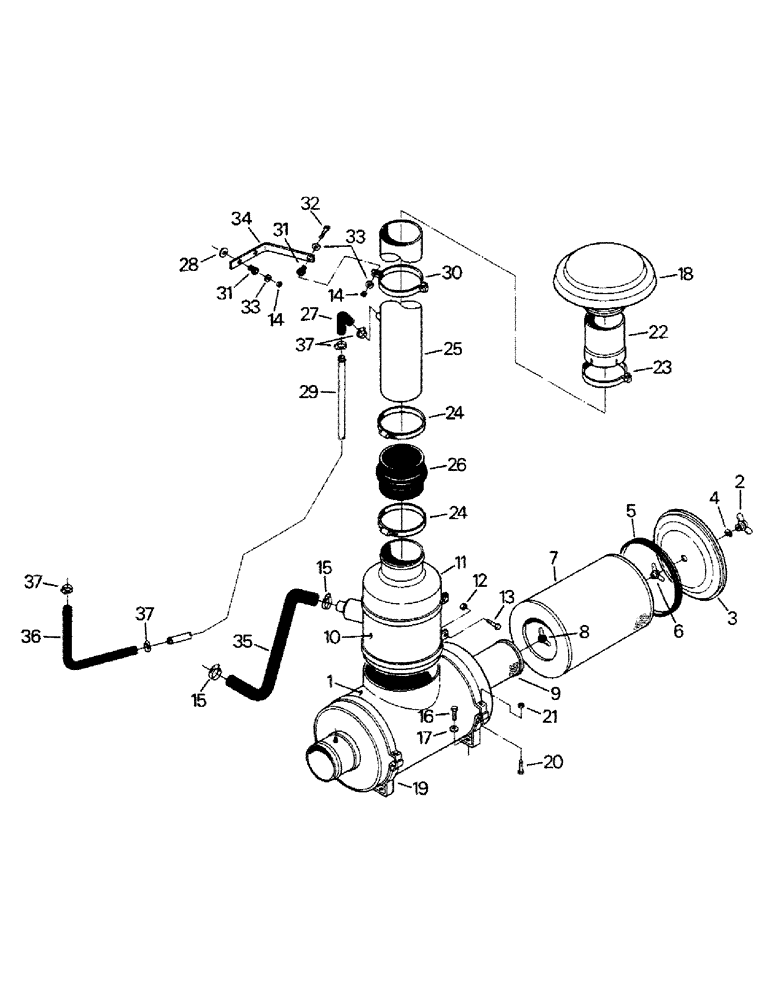

Запчасти Case IH CP-1325 (04-14) - AIR CLEANER AND MOUNTING, 14" AIR CLEANER (04) - Drive Train
№
Артикул
Название
Примечание
Количество
90-3845T91
AIR CLEANER
ASSY, consists of ref. nos. 1-13
1шт.
90-4206T91
AIR CLEANER
ASSY, consists of ref. nos. 1-9
1шт.
1
NSS
NOT SOLD SEPARAT
BODY
1шт.
90-4205T91
COVER
ASSY, consists of ref. nos. 2-5
1шт.
2
90-4230T1
NUT
WING NUT
1шт.
3
NSS
NOT SOLD SEPARAT
COVER
1шт.
4
90-4231T1
CLIP,ELECTRICAL
CLIP
1шт.
5
90-4232T1
GASKET
1шт.
6
45-218
NUT
WING NUT
1шт.
90-4203T1
ELEMENT
PRIMARY ELEMENT (1000 hr change interval)
1шт.
8
7-1006
NUT
WING NUT
1шт.
9
90-4204T1
AIR CLEANER
SAFETY ELEMENT
1шт.
10
90-4207T1
PRECLEANER
ASSY (incl refs. 12 & 13)
1шт.
11
90-4208T1
ADAPTER
ASSY
1шт.
12
19-78
SPECIAL NUT,3/8"-16, G5
2шт.
13
19-21
BOLT,Hex, 3/8" - 16 x 2", Gr 5
CAPSCREW
2шт.
14
232-4136
LOCK NUT,3/8"-16, GC
3шт.
15
32-25
HOSE CLAMP,#36, 1.81/2.75 Type F Worm
CLAMP
2шт.
16
19-17
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
CAPSCREW
4шт.
17
19-117
LOCK WASHER,3/8"
3/8"
4шт.
18
9-120
CAP ASSY.
AIR INLET HOOT
1шт.
19
90-3871T1
CLIP
MOUNTING BAND
2шт.
20
19-39
BOLT,5/16" - 18 x 1 3/4", Gr 5
CAPSCREW
2шт.
21
19-508
LOCK NUT
LOCK NUT
2шт.
22
90-3980T1
TUBE,7.0"-7.03" OD x 9.12" L
EXTENSION TUBE
1шт.
23
1-2634
CLAMP
1шт.
24
31-2271
HOSE CLAMP,6.25/7.625 HD Worm, W/liner
CLAMP
2шт.
25
90-3976T1
AIR INTAKE TUBE
AIR INTAKE STACK
1шт.
26
9-73
HOSE
HUMP HOSE
1шт.
27
90-3473T1
HOSE,1.00" ID
1шт.
28
19-110
WASHER,9/16"
2шт.
29
90-3977T1
TUBE,1" OD
ASPIRATOR TUBE
1шт.
30
60-2764T1
MOUNTING CLIP
CLAMP
1шт.
31
1-3528
MOUNTING PARTS
RUBBER MOUNT
3шт.
32
19-20
BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5
CAPSCREW
1шт.
33
19-107
WASHER
4шт.
34
60-2763T1
MOUNTING PARTS
MOUNT
1шт.
35
90-3979T1
HOSE,2.00" ID
Mount 2.00" ID
1шт.
36
31-1504
HOSE,1.00" ID x 31.00"
1шт.
37
32-27
HOSE CLAMP,#20, 0.81/1.75 Type F Worm
CLAMP
4шт.
38
19-135
CABLE TIE
TY RAP (not shown)
2шт.
Выбрано товаров: 42
