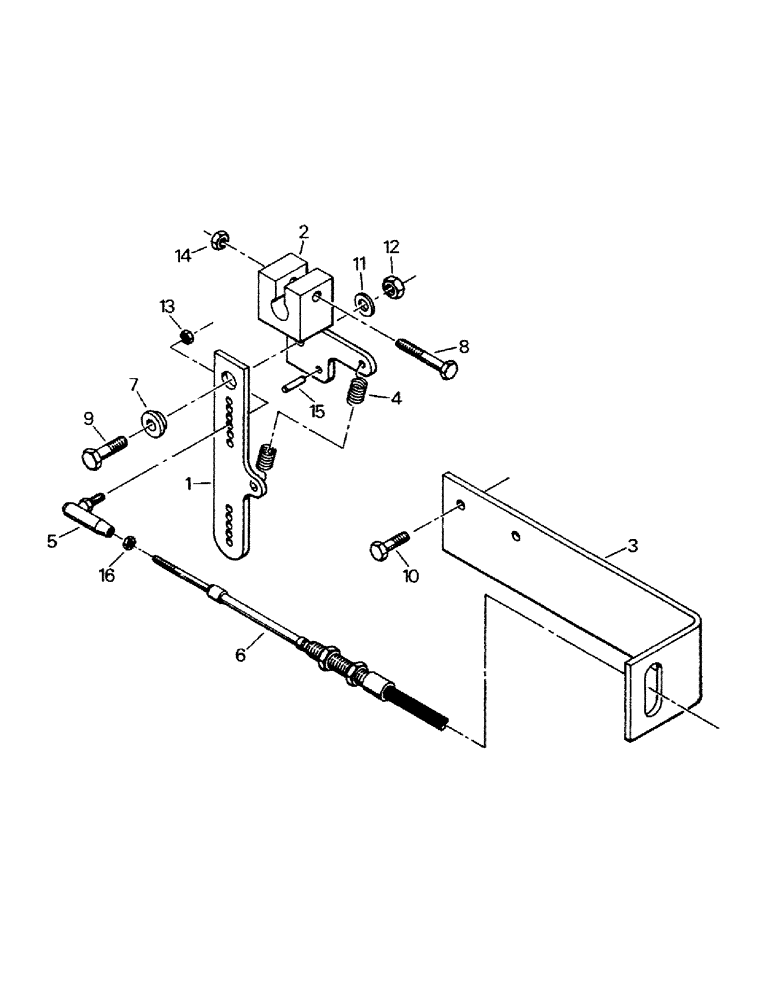

Запчасти Case IH CP-1325 (04-11) - ENGINE THROTTLE CONTROLS, CAT 3406 ENGINE, LATER STYLE (04) - Drive Train

1

90-3955T1

LEVER

THROTTLE LEVER

1шт.

2

90-3957T1

PIVOT

1шт.

3

90-3958T1

BRACKET

1шт.

4

11-16

SPRING

1шт.

5

6-1431

BALL JOINT

1шт.

6

60-2841T1

CABLE

THROTTLE CABLE

1шт.

7

2-2386T2

BUSHING

1шт.

8

19-550

BOLT,Hex, M16 x 35mm, Cl 10.9

CAPSCREW

1шт.

9

19-723

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

CAPSCREW

1шт.

10

19-5846

LOCK SCREW,Lock, 5/16" - 18 x 0.625", Gr 5, Full Thd

LOCK CAPSCREW

2шт.

11

19-106

WASHER,5/16", SAE

1шт.

12

231-1445

NUT,5/16"-18, GB

NUT, LOCK, 5/16"-18, GB

1шт.

13

9411893

LOCK NUT,#10-32, GB

1шт.

14

19-6082

JAM NUT

LOCK JAM NUT

1шт.

15

19-5368

PIN,1/4" x 1/2", Coiled

1шт.

16

19-308

NUT,#10 - 32

1шт.
