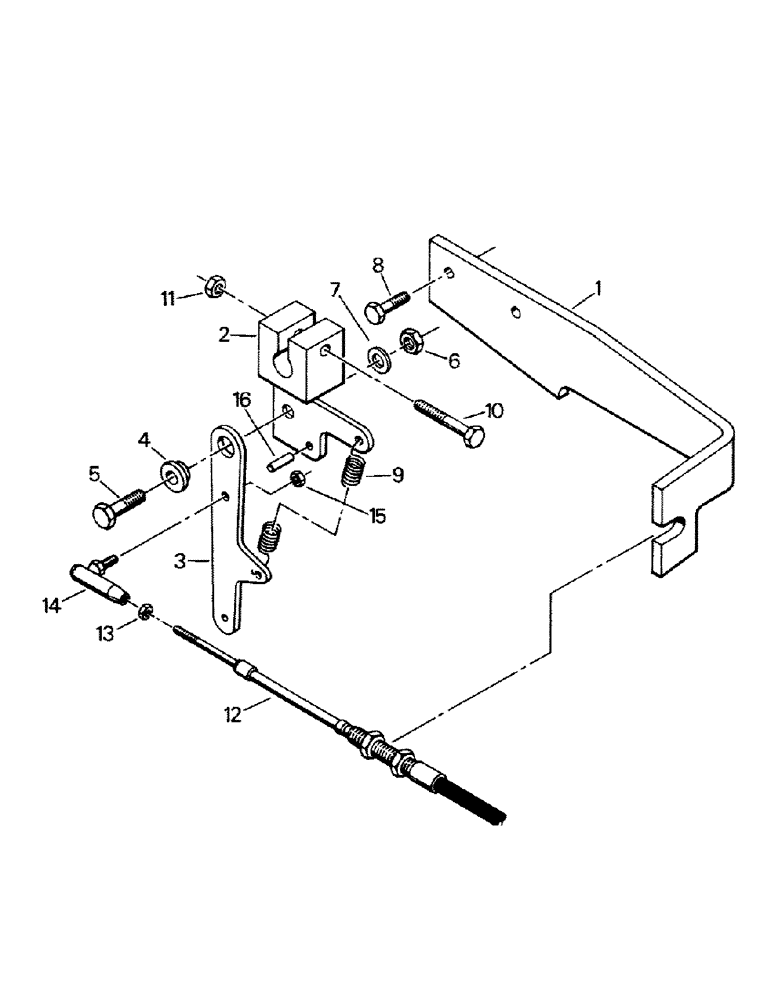

Запчасти Case IH CP-1325 (04-10) - ENGINE THROTTLE CONTROLS, CAT 3406 ENGINE, EARLY STYLE (04) - Drive Train

1

90-2433T1

BRACKET

1шт.

2

90-2434T1

PIVOT

1шт.

3

90-2436T2

LEVER

THROTTLE LEVER

1шт.

4

2-2386T2

BUSHING

1шт.

5

19-723

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

CAPSCREW

1шт.

6

231-1445

NUT,5/16"-18, GB

NUT, LOCK, 5/16"-18, GB

1шт.

7

19-106

WASHER,5/16", SAE

1шт.

8

19-1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

CAPSCREW

2шт.

9

11-16

SPRING

1шт.

10

19-550

BOLT,Hex, M16 x 35mm, Cl 10.9

CAPSCREW

1шт.

11

19-1081

LOCK NUT

LOCK NUT

1шт.

12

60-2841T1

CABLE

THROTTLE CABLE

1шт.

13

19-308

NUT,#10 - 32

1шт.

14

6-1431

BALL JOINT

1шт.

15

9411893

LOCK NUT,#10-32, GB

1шт.

16

19-5368

PIN,1/4" x 1/2", Coiled

1шт.
