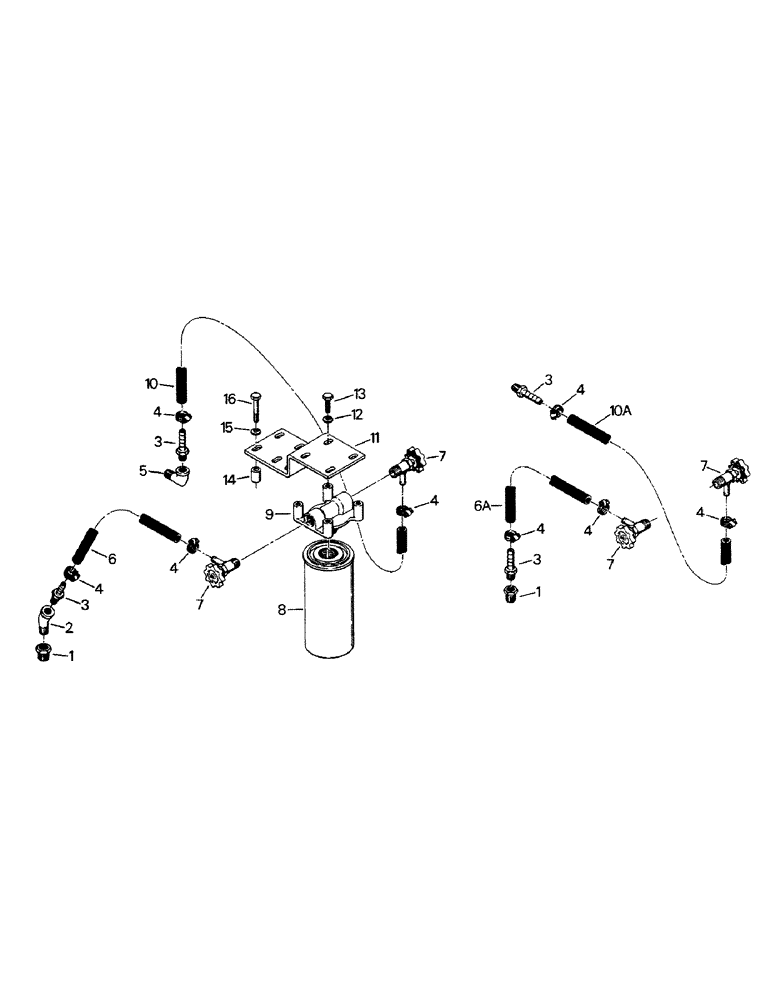

Запчасти Case IH CP-1325 (04-08) - WATER FILTER AND MOUNTING, CAT 3406 ENGINE, EARLY STYLE (04) - Drive Train

1

31-178

BUSHING

REDUCER

1шт.

2

31-76

ELBOW

1шт.

3

31-218

CONNECTING ROD

BARBED FITTING

2шт.

4

32-29

HOSE CLAMP

CLAMP

4шт.

5

31-219

ELBOW

STREET ELBOW

1шт.

6

31-1306

HOSE,9.5 mm ID x 406.40 mm, SAE 30R2

9.5mm ID x 406.40 mm, SAE 30R2 (325 HP engine)

1шт.

6a

31-1659

HOSE,9.65 mm ID x 495.30, SAE 30R6

9.65 mm ID x 495.30 mm, SAE 30R6

1шт.

7

1-1610

VALVE

2шт.

8

28-31

FILTER

ELEMENT (see note)

1шт.

1-7834

FILTER

ELEMENT (precharged)

1шт.

9

1-1612

HEAD

FILTER BASE

1шт.

10

32-203

HOSE

(325 HP engine)

1шт.

10a

31-1659

HOSE,9.65 mm ID x 495.30, SAE 30R6

9.65 mm ID x 495.30 mm, SAE 30R6

1шт.

11

90-2897T1

BRACKET

FILTER BASE BRACKET

1шт.

12

19-117

LOCK WASHER,3/8"

3/8"

4шт.

13

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAPSCREW

4шт.

14

4-118

SPACER

4шт.

15

19-117

LOCK WASHER,3/8"

(325 HP engines) 3/8"

1шт.

19-116

LOCK WASHER,5/16"

(360 & 400 HP engines) 5/16"

1шт.

16

19-20

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

CAPSCREW (325 HP engine)

4шт.

19-535

BOLT,5/16" - 18 x 2 3/4", Gr 5

CAPSCREW (360 & 400 HP engines)

1шт.
