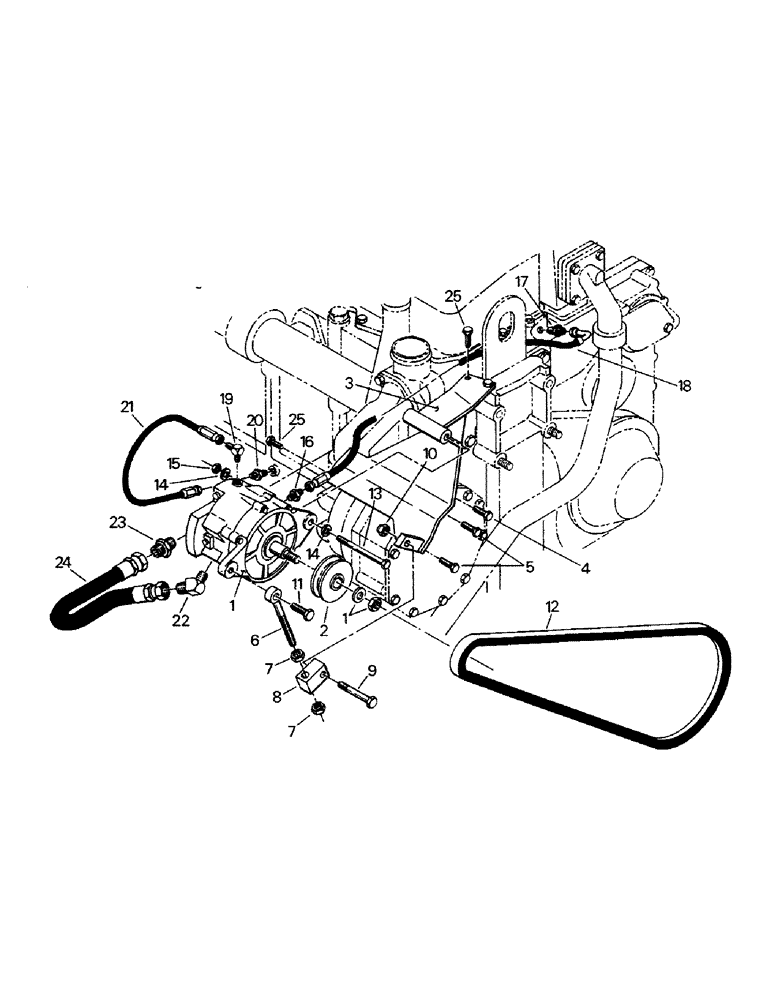

Запчасти Case IH CP-1325 (04-04) - ALTERNATOR AND MOUNTING, CAT 3406 ENGINE, LATER STYLE (04) - Drive Train

1

ALT ASSY (see figure 2-6)

1шт.

2

22-1085

PULLEY

ALT PULLEY

1шт.

3

90-3823T1

MOUNTING PARTS

ALT MOUNT

1шт.

4

9423067

CAPSCREW,3/8" - 16 x 4 3/4", Gr 8

1шт.

5

19-799

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

CAPSCREW

2шт.

6

22-1086T1

ROD

ADJUSTING ROD

1шт.

7

19-1060

JAM NUT,1/2" - 20, Gr 8

2шт.

8

1-6899T1

BLOCK

ADJUSTING BLOCK

1шт.

9

19-680

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 8

CAPSCREW

1шт.

10

19-653

LOCK NUT

LOCK NUT

1шт.

11

19-941

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

CAPSCREW

1шт.

12

90-3807T1

V-BELT,0.69" W x 75.40" L

Alt 0.69" W x 75.40" L

1шт.

REF. 12 THE BELT MEASURES ABOUT 75.40"

1шт.

13

19-1258

BOLT,Hex, 1/2" - 13 x 7", Gr 8

CAPSCREW

1шт.

14

19-5801

WASHER

2шт.

15

19-81

NUT,1/2"-13, G5

1шт.

16

31-377

HYD CONNECTOR,9/16"-18, 37 Degree x 1/4"-18, NPTF

FITTING

1шт.

17

31-268

ADAPTER,9/16"-18, 37 Degree x 3/8"-18, NPTF

FITTING

1шт.

18

31-2279

HOSE

1шт.

19

31-2206

ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/8"-27, NPTF

1шт.

20

31-2207

HYD CONNECTOR,1/2"-20, 37 Degree x 3/8"-18, NPTF

FITTING

1шт.

21

31-2294

HOSE

1шт.

22

18-568

ELBOW,45 Degree, 1 1/16-12" 37 Degree x 3/4"-14, NPTF

1шт.

23

31-448

ADAPTER,1 1/16"-12, 37 Degree x 3/4"-14, NPTF

FITTING

1шт.

24

31-1589

HOSE

1шт.

25

NAP

CAPSCREW (existing engine hardware)

3шт.
