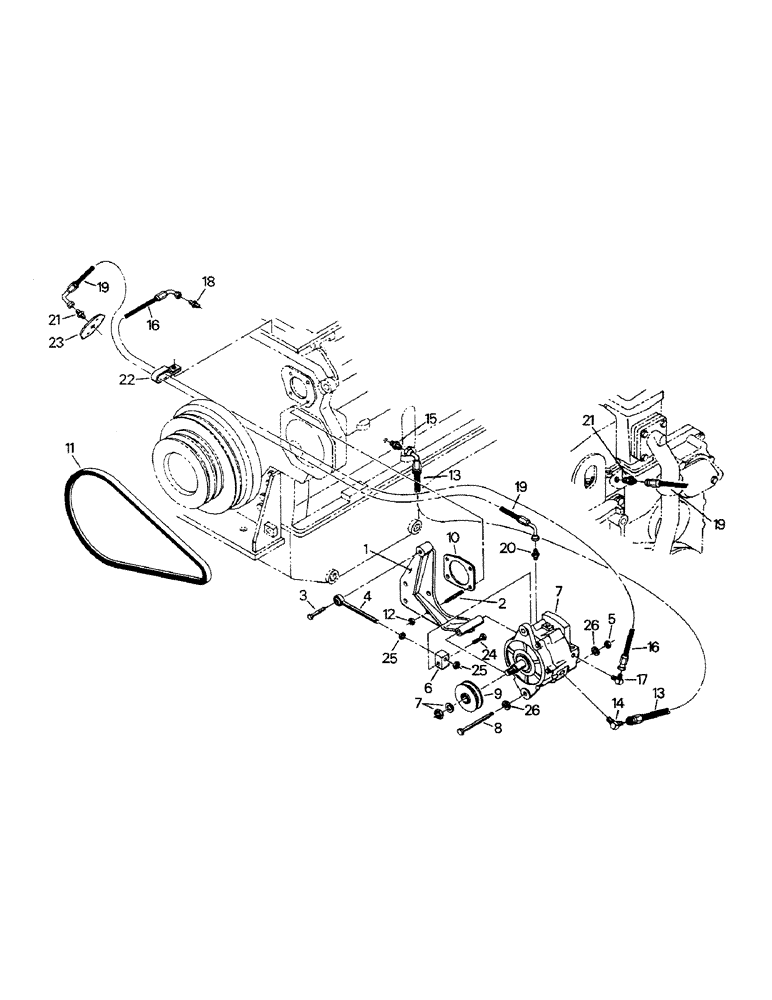

Запчасти Case IH CP-1325 (04-03) - ALTERNATOR AND MOUNTING, CAT 3406 ENGINE, EARLY STYLE (04) - Drive Train

1

1-6892T1

ALT MOUNT

1шт.

2

19-5667

STUD

4шт.

3

19-543

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8

CAPSCREW

1шт.

4

22-1086T1

ROD

ADJUSTING ROD, Replaces 22-10866

1шт.

Superseded - old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

5

19-81

NUT,1/2"-13, G5

1шт.

6

1-6899T1

BLOCK

ADJUSTING BLOCK

1шт.

7

ALT ASSY., see Figure 02-06

1шт.

8

19-1258

BOLT,Hex, 1/2" - 13 x 7", Gr 8

CAPSCREW

1шт.

9

22-1085

PULLEY

ALT PULLEY

1шт.

10

1-6917T1

GASKET

1шт.

11

1-6908T1

BELT,0.69" W x 73.00" L

V-BELT, 0.69" W x 73.00" L

1шт.

12

19-598

LOCK NUT

4шт.

13

31-1662

HOSE, straight end, shown above

1шт.

13a

31-2312

HOSE

90 deg. end

1шт.

The "A" versions of refs. 13, 14, 16 and 17 must be used together and will only be used on models just prior to the change to the alt mounting arrangement shown on the following Figure 04-04.

1шт.

14

31-399

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 3/4"-14, NPTF

shown above

1шт.

14a

31-448

ADAPTER,1 1/16"-12, 37 Degree x 3/4"-14, NPTF

FITTING

1шт.

The "A" versions of refs. 13, 14, 16 and 17 must be used together and will only be used on models just prior to the change to the alt mounting arrangement shown on the following Figure 04-04.

1шт.

15

18-608

HYD CONNECTOR,1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

FITTING

1шт.

16

31-2202

HOSE, straight end, shown above

1шт.

16a

31-2313

HOSE, 90 deg. end

1шт.

The "A" versions of refs. 13, 14, 16 and 17 must be used together and will only be used on models just prior to the change to the alt mounting arrangement shown on the following Figure 04-04.

1шт.

17

31-2206

ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/8"-27, NPTF

shown above, on some models, swivel elbow P/N 31-2322 and fitting P/N 31-2204 were used instead or ref. 17 in order to properly alighn the hose, ref. 16

1шт.

17a

31-2204

ADAPTER,1/2"-20, 37 Degree x 1/8"-27, NPTF

FITTING

1шт.

The "A" versions of refs. 13, 14, 16 and 17 must be used together and will only be used on models just prior to the change to the alt mounting arrangement shown on the following Figure 04-04.

1шт.

18

31-2207

HYD CONNECTOR,1/2"-20, 37 Degree x 3/8"-18, NPTF

FITTING

1шт.

19

31-1661

HOSE, for Cat 3406 engine, with fan idler pulley

1шт.

31-2278

HOSE, for Cat 3406 engine, without fan idler pulley

1шт.

20

31-608

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

FITTING, for Cat 3406 engine, with fan idler pulley

1шт.

31-377

HYD CONNECTOR,9/16"-18, 37 Degree x 1/4"-18, NPTF

FITTING, for Cat 3406 engine, without fan idler pulley

1шт.

21

31-1028

HYD CONNECTOR,7/16"-20, 37 Degree x 1/8"-27, NPTF

FITTING, for Cat 3406 engine, with fan idlet pulley

1шт.

31-268

ADAPTER,9/16"-18, 37 Degree x 3/8"-18, NPTF

FITTING, for Cat 3406 engine, without fan idler pulley

1шт.

22

31-1070

CLAMP,5/8", 3/8" Bolt, Double

for Cat 3406 engine, with fan idler pulley

1шт.

23

90-3523T1

COVER., for Cat 3406 engine, with fan idler pulley

1шт.

24

19-909

BOLT,Hex, 1/2" - 13 x 2", Gr 8

CAPSCREW

1шт.

25

19-1060

JAM NUT,1/2" - 20, Gr 8

2шт.

26

19-5801

WASHER

2шт.
