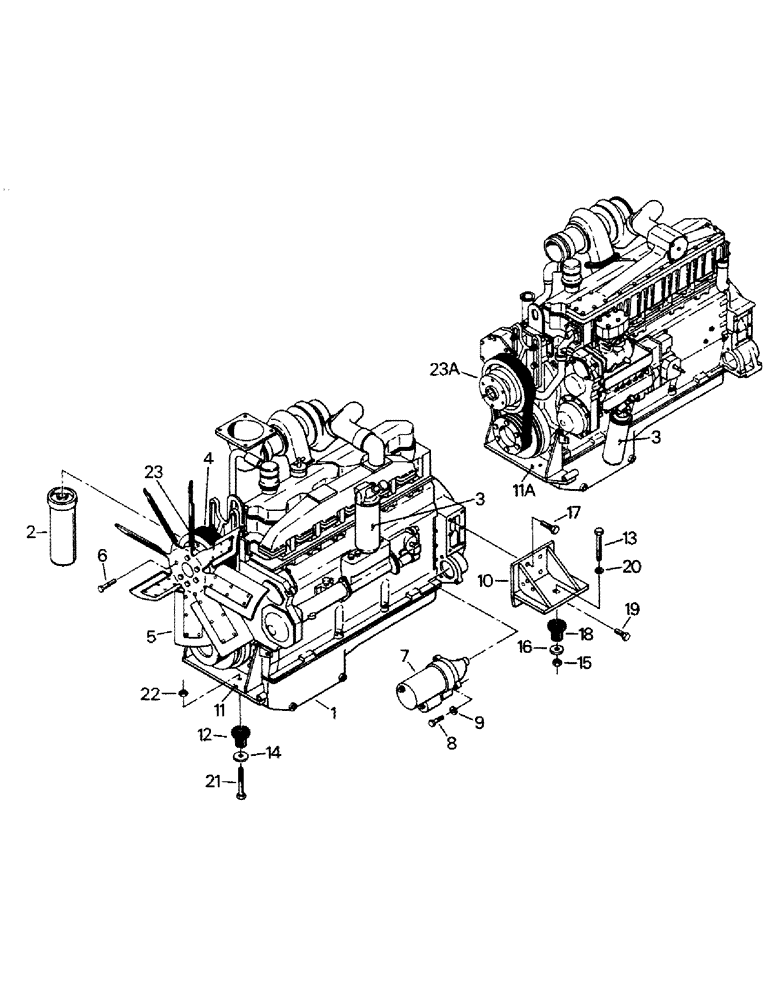

Запчасти Case IH CP-1325 (04-01) - ENGINE AND ATTACHING PARTS, CAT 3406 ENGINE (04) - Drive Train

1

90-1729T1

ENGINE, 3406 DIT, 325 HP, Used before S/N 3008, Serial Range: -3008

1шт.

90-3923T1

ENGINE, 3406 DIT, 325 HP, Used before S/N 3008, Serial Range: -3008

1шт.

90-1730T1

ENGINE, 3406 DITA, 360 HP, Used before S/N 3008, Serial Range: -3008

1шт.

90-3924T1

ENGINE, 3406 DITA, 360 HP, Used after S/N 3007 (approx 9-1-83), Start Serial: 3007

1шт.

90-1574T1

ENGINE, 3406 DITA, 400 HP, Used before S/N 3008, Serial Range: -3008

1шт.

90-3925T1

ENGINE, 3406 DITA, 400 HP, Used after S/N 3007 ( approx 9-1-83), Start Serial: 3007

1шт.

2

1-2335

FILTER, ENGINE OIL

OIL FILTER

1шт.

3

1-2334

FILTER

FUEL FILTER

1шт.

4

90-1163T1

SET OF BELTS,0.69" W x 67.00" L

V-Belt, Fan (2), Used before S/N 2600 0.69" W x 67.00" L, Serial Range: -2600

1шт.

Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

90-3861T1

V-BELT,0.59" W x 58.70" L

Fan, Set of 2, Used after S/N 2599 (approx 3-1-83) 0.59" W x 58.70" L, Start Serial: 2599

1шт.

Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

5

90-1720T1

FAN

325 and 360 HP engines

1шт.

90-1733T1

FAN

400 HP engines

1шт.

6

19-2694

CAPSCREW,Hex, 1/2" - 13 x 2 3/4", Gr 8

Used before S/N 3008, Serial Range: -3008

6шт.

Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

19-821

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

CAPSCREW, Used after S/N 3007 ( approx 9-1-83), Start Serial: 3007

1шт.

Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

7

STARTER, see Figure 02-04

1шт.

8

19-907

12 PT SCREW,Flg, 5/8" - 11 x 2", Gr 8

CAPSCREW

3шт.

9

19-912

WASHER

3шт.

10

90-1443T1

MOUNTING PARTS

ENGINE MOUNT, left

1шт.

90-1444T1

MOUNTING PARTS

ENGINE MOUNT, right

1шт.

11

2-3423T2

ENGINE MOUNT, Used before S/N 3008, Serial Range: -3008

1шт.

Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

11a

2-5320T1

ENGINE MOUNT, Used after S/N 3007 (approx 9-1-83), Start Serial: 3007

1шт.

Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

12

24-231

RUBBER MOUNTING

RUBBER MOUNT

2шт.

13

19-769

BOLT,Hex, 3/4" - 10 x 4", Gr 5

CAPSCREW

2шт.

14

19-408

WASHER

2шт.

15

19-85

LOCK NUT

LOCK NUT

2шт.

16

19-112

WASHER,3/4"

2шт.

17

19-839

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

CAPSCREW

10шт.

18

47-4172

SHOCK ABSORBER

RUBBER MOUNT

2шт.

19

19-822

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8, Full Thd

CAPSCREW

2шт.

20

19-712

WASHER,3/4", SAE

2шт.

21

19-256

BOLT,Hex, 5/8" - 11 x 4", Gr 5

CAPSCREW

2шт.

22

19-222

LOCK NUT,5/8" - 11, GB

2шт.

23

90-1721T1

SPACER

FAN SPACER, Used before 3008, Serial Range: -3008

1шт.

Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

23a

NAP

FAN SPACER, Cat part, Used after 3007 (approx 9-1-83), Start Serial: 3007

1шт.

Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.
