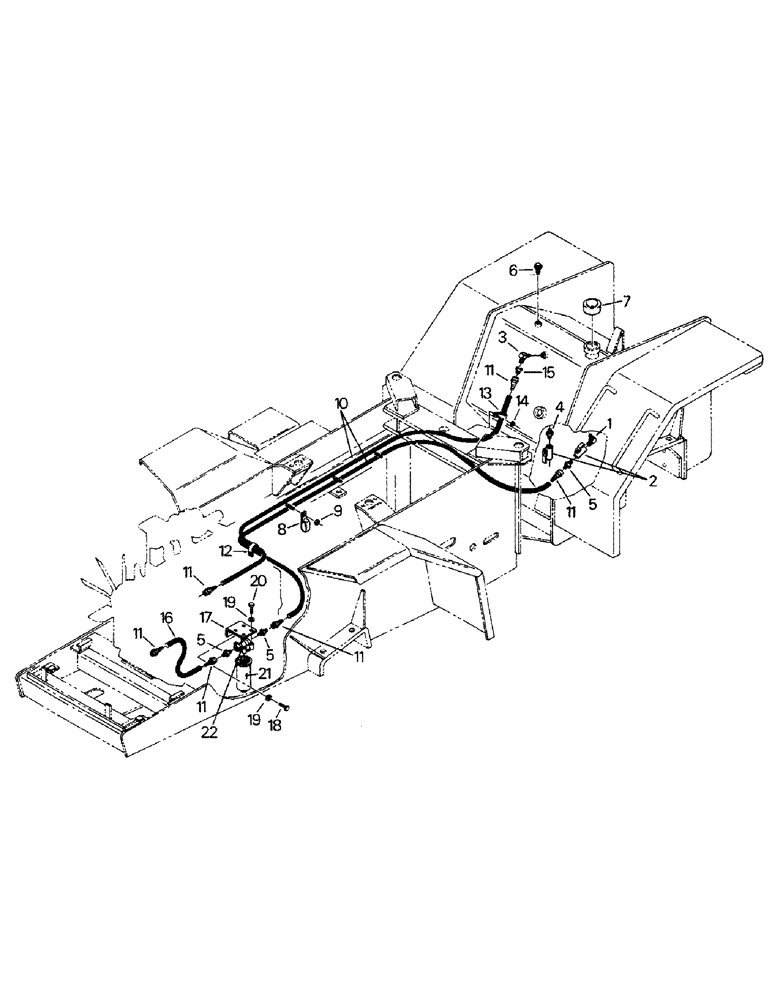

Запчасти Case IH CP-1325 (07-04) - FUEL SYSTEM, CAT 3406 ENGINE, LATER STYLE (02) - FUEL SYSTEM

1

31-1585

FITTING

ELBOW

1шт.

2

31-1267

SHUT-OFF VALVE

BALL VALVE

2шт.

3

31-528

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/2"-14, NPTF

1шт.

4

31-345

FITTING

1шт.

5

31-375

HYD CONNECTOR,9/16"-18, 37 Degree x 1/2"-14, NPTF

FITTING

3шт.

6

31-1536

BREATHER

VENT

1шт.

7

2-3679T1

FILLER CAP

FUEL CAP

1шт.

8

31-1070

CLAMP,5/8", 3/8" Bolt, Double

(90-1406T1 - code B)

3шт.

9

19-77

NUT,5/16"-18, G5

6шт.

10

31-2288

HOSE,0.38" ID x 206.00"

2шт.

11

31-311

INSERT

BARBED FITTING

6шт.

12

32-343

MOUNTING CLIP

CLAMP

1шт.

13

32-302

CLAMP,7/8", Insul, 3/8" Bolt

1шт.

14

19-78

SPECIAL NUT,3/8"-16, G5

1шт.

15

31-395

REDUCER,3/4"-14 Male NPTF x 1/2"-14 Female NPTF

1шт.

16

31-1306

HOSE,9.5 mm ID x 406.40 mm, SAE 30R2

1шт.

17

90-3858T1

BRACKET

FILTER BRACKET

1шт.

18

19-799

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

CAPSCREW

2шт.

19

19-117

LOCK WASHER,3/8"

3/8"

6шт.

20

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAPSCREW

4шт.

21

90-3941T1

SEPARATOR

FILTER ELEMENT

1шт.

22

90-3940T1

HEAD

FILTER HEAD

1шт.
