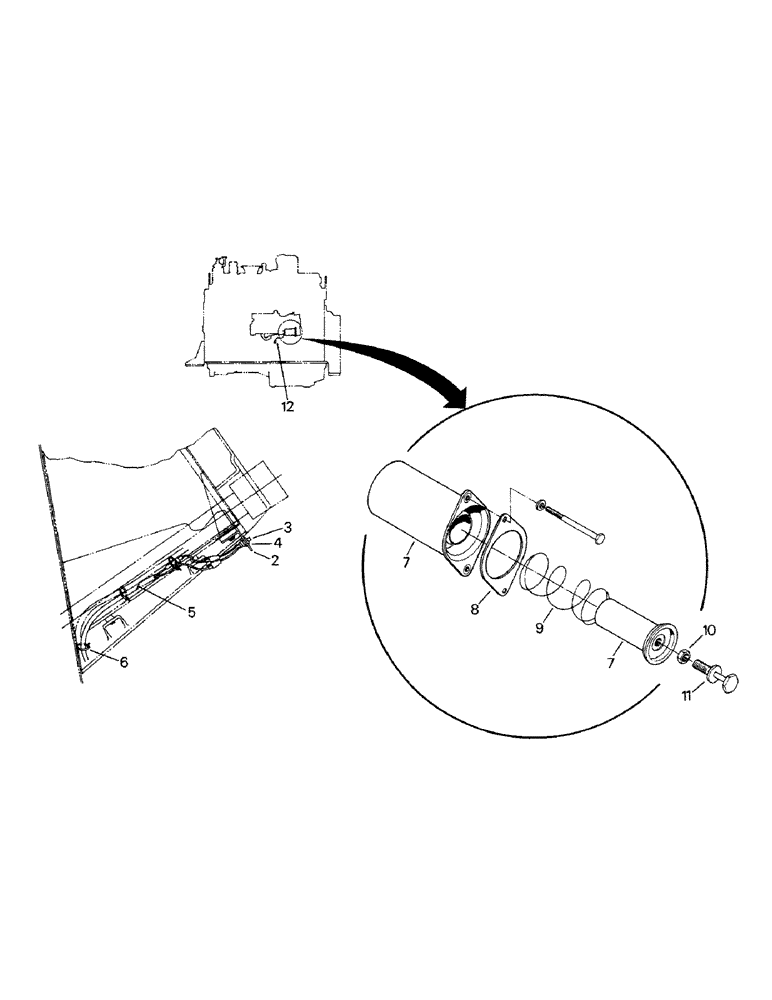

Запчасти Case IH CP-1325 (07-03) - FUEL SHUTOFF KIT, CAT 3406 ENGINE, EARLY STYLE (02) - FUEL SYSTEM

35-1570T91

KIT

FUEL SHUTOFF KIT, consists of ref. 1 - 13

1шт.

1

R90-5837

INSTALLATION DRAWING

1шт.

2

90-5838T1

BRACKET

1шт.

3

1-7128

IGNITION SWITCH

SWITCH ASSY

1шт.

4

2-4553T1

DECAL

1шт.

5

20-2097T1

HARNESS

STOP SWITCH WIRE HARNESS

1шт.

6

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP, CABLE, 3/16" x 7 1/4"

3шт.

7

90-5839T91

SOLENOID

1шт.

REF. 7 SOME CAT ENGINES MAY HAVE A SOLENOID WITH #6T8021 ON IT.THIS HAS TO BE PURCHASED FROM CAT.

1шт.

8

90-5834T1

GASKET

1шт.

9

90-5836T1

SPRING

1шт.

10

90-5840T1

NUT

1шт.

11

90-5835T1

SHAFT

1шт.

12

22-1080

ELECTRICAL WIRE

WIRE ASSY

1шт.

13

20-2099T1

TOOL

EXTRACTION TOOL (not shown)

1шт.
