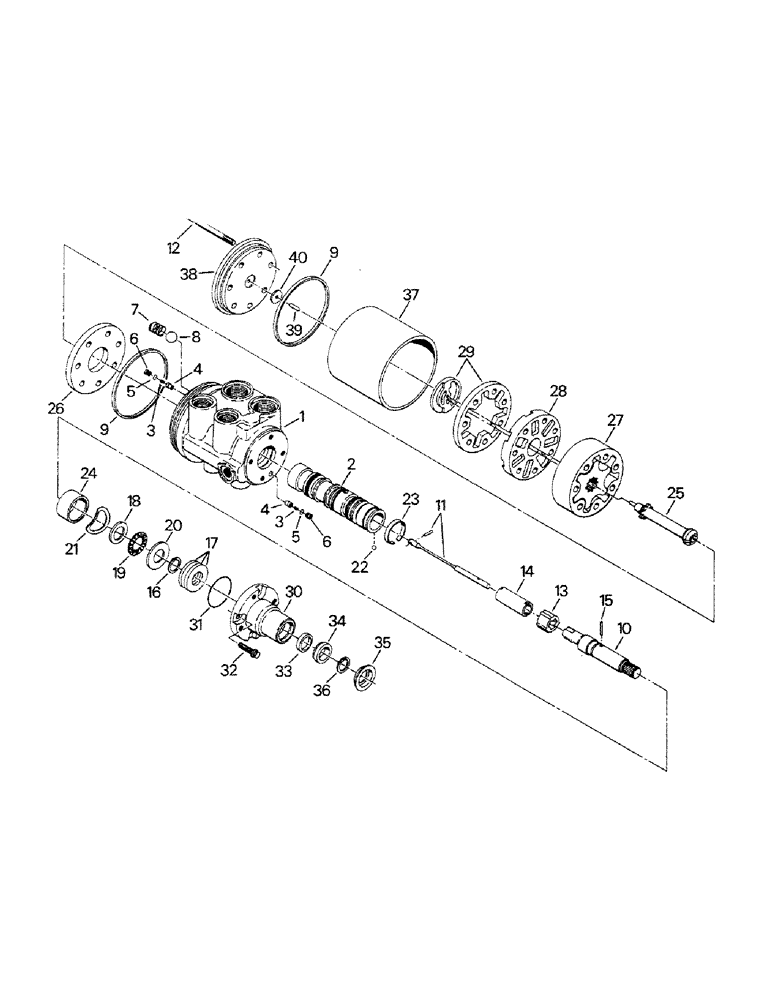

Запчасти Case IH CP-1325 (08-10) - STEERING CONTROL VALVE ASSEMBLY (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
50-1392T93
CONTROL
STEERING CONTROL VALVE ASSY, consists of 1-40
1шт.
1
NSS
NOT SOLD SEPARAT
HOUSING
1шт.
2
NSS
NOT SOLD SEPARAT
VALVE SPOOL
1шт.
3
NSS
NOT SOLD SEPARAT
SCREEN
2шт.
4
NSS
NOT SOLD SEPARAT
ORIFICE
2шт.
5
50-1942T91
PLUG
ASSY (incl ref. 6)
2шт.
6
50-1914T1
O-RING
2шт.
7
50-1941T1
SPRING
1шт.
8
50-1915T1
BALL
STEEL BALL
1шт.
9
50-1940T1
SEALING RING
RING
2шт.
10
50-1916T1
SHAFT
INPUT SHAFT
1шт.
11
50-1944T1
BAR
TORSION BAR ASSY
1шт.
12
50-1939T1
CAPSCREW
7шт.
13
50-1917T1
OIL SEAL
DRIVE RING
1шт.
14
50-1918T1
SPACER
DRIVE LINK SPACER
1шт.
15
50-1919T1
NEEDLE
ROLLER
1шт.
16
50-1920T1
RING, SNAP
SNAP RING
1шт.
17
50-1950T1
SHIM
(.0025)
1шт.
.
50-1949T1
SHIM
(.005)
1шт.
50-1948T1
SHIM
(.010)
1шт.
50-1951T1
SHIM
(.030)
1шт.
18
50-1921T1
SPRING WASHER
BEARING RACE
1шт.
19
50-1922T1
BEARING
THRUST BEARING
1шт.
20
50-1923T1
WASHER
THRUST WASHER
1шт.
21
50-1924T1
WASHER
WAVE WASHER
1шт.
22
104919
BALL
STEEL BALL
1шт.
23
50-1925T1
KIT
PRELOAD SPRING KIT
1шт.
24
50-1926T1
SPACER
1шт.
25
50-1927T1
LINK
DRIVE LINK
1шт.
26
50-1928T1
WEAR PLATE
1шт.
27
50-1929T1
ROTOR
SET
1шт.
28
50-1930T1
MANIFOLD
1шт.
29
50-1945T1
COMMUTATOR
ASSY
1шт.
30
50-1931T1
COVER
UPPER COVER
1шт.
31
50-1932T1
SEALING RING
RING
1шт.
32
50-1933T1
SCREW
FLANGED CAPSCREW
4шт.
50-1946T91
SEAL KIT
HYDRAGUIDE SEAL KIT, consists of 33-35
1шт.
33
NSS
NOT SOLD SEPARAT
SEAL
1шт.
34
NSS
NOT SOLD SEPARAT
BACKUP WASHER
1шт.
35
50-1934T1
SEALING RING
1шт.
36
50-1935T1
OIL SEAL
SNAP RING
1шт.
37
50-1936T1
SLEEVE
PROTECTOR SLEEVE
1шт.
50-1947T91
COVER
END COVER ASSY, consists of 38-40
1шт.
38
NSS
NOT SOLD SEPARAT
END COVER
1шт.
39
50-1937T1
NEEDLE
ROLLER
1шт.
40
50-1938T1
WASHER
1шт.
Выбрано товаров: 46
