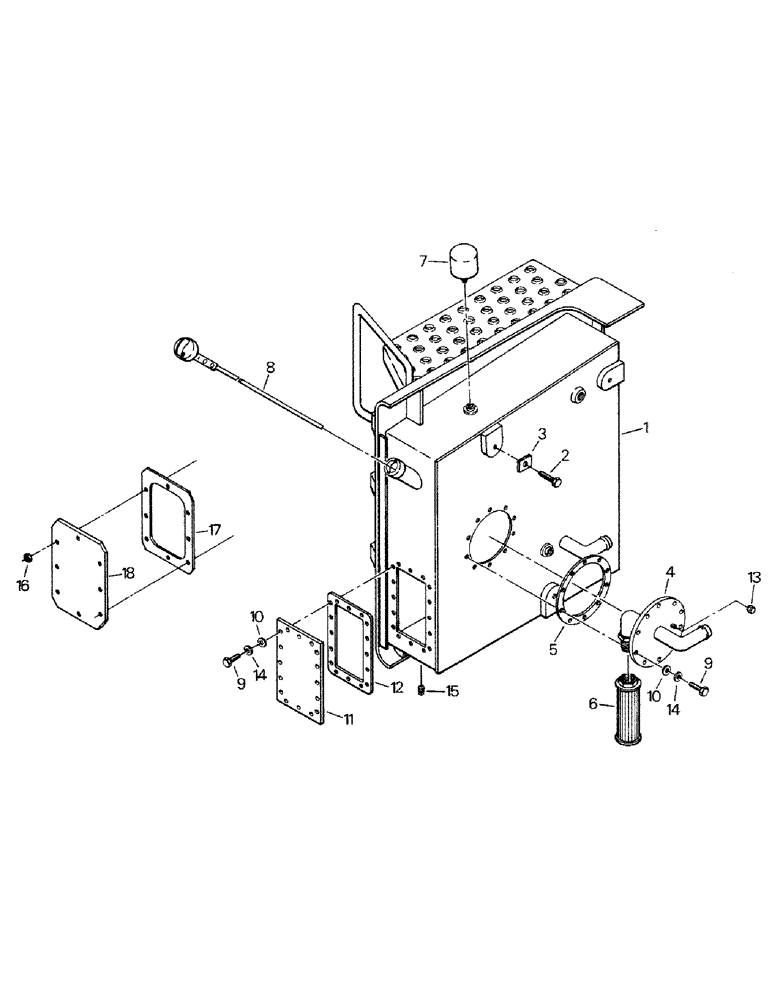

Запчасти Case IH CP-1325 (08-09) - HYDRAULIC RESERVOIR AND MOUNTING (07) - HYDRAULICS

1

50-1897T1

HYDRAULIC RESERVOIR, Ref, 4, 5, 9 - 12 and 14 are unique to this P/N, Ref 2, 3, 6 - 8, 13 and 15 are used on both Reservoir versions

1шт.

Superseded - old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

50-1897T2

HYDRAULIC RESERVOIR, Ref 16 - 18 are unique to this P/N, Ref 2, 3, 6 - 8, 13 and 15 are used on both Reservoir versions

1шт.

Superseded - old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

2

19-45

BOLT,1/2" - 13 x 1 1/2", Gr 5

CAPSCREW, Replaces 19-044

3шт.

Superseded - P/N is superseded on this model or models only. Old P/N can be used for other applications and models but new P/N must always be used in this code.

1шт.

3

70-4268T1

RECTANGULAR WASHER, Replaces 19-109

3шт.

Superseded - P/N is superseded on this model or models only. Old P/N can be used for other applications and models but new P/N must always be used in this code.

1шт.

4

50-1338T1

TUBE

1шт.

For use on P/N 50-1897T1 Reservoir

1шт.

5

50-1333T1

GASKET

1шт.

For use on P/N 50-1897T1 Reservoir

1шт.

6

50-1509T1

FILTER

SUCTION SCREEN

1шт.

50-2029T1

FILTER SCREEN

SUCTION SCREEN, interchangeable with P/N 50-1509T1

1шт.

7

18-503

FILTER

PRESS. FILTER VALVE

1шт.

18-1633

BREATHER

ELEMENT

1шт.

8

47-3580

DIPSTICK

1шт.

9

19-234

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

CAPSCREW

26шт.

For use on P/N 50-1897T1 Reservoir

1шт.

10

19-5782

WASHER

CAPSCREW

26шт.

For use on P/N 50-1897T1 Reservoir

1шт.

11

50-1708T1

COVER

1шт.

For use on P/N 50-1897T1 Reservoir

1шт.

12

50-1709T1

GASKET

1шт.

For use on P/N 50-1897T1 Reservoir

1шт.

13

9403371

CAP,37 Degree, 9/16"-18

1шт.

14

19-106

WASHER,5/16", SAE

26шт.

For use on P/N 50-1897T1 Reservoir

1шт.

15

31-35

PLUG

PIPE PLUG

1шт.

16

232-4136

LOCK NUT,3/8"-16, GC

8шт.

For use on P/N 50-1897T2 Reservoir

1шт.

17

2-1914

GASKET

1шт.

For use on P/N 50-1897T2 Reservoir

1шт.

18

1-4058

PLATE

COVER PLATE

1шт.

For use on P/N 50-1897T2 Reservoir

1шт.
