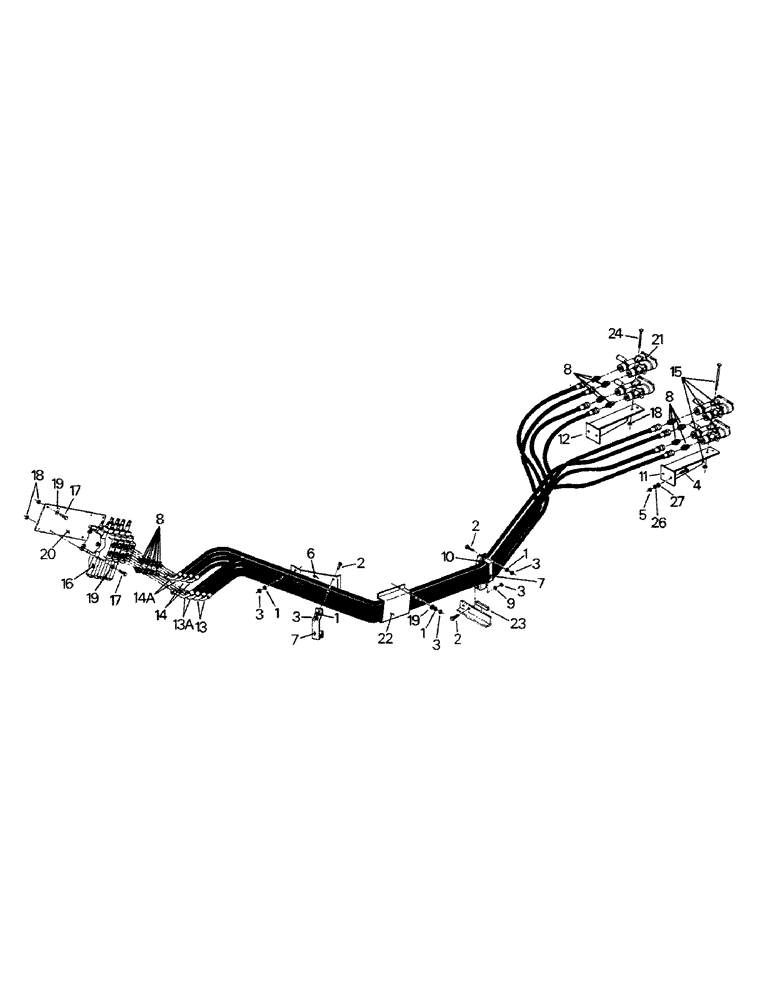

Запчасти Case IH CP-1325 (08-06) - HYDRAULIC SYSTEM, REAR FRAME, WITH OUT 3-POINT HITCH (07) - HYDRAULICS

1

19-117

LOCK WASHER,3/8"

3/8"

8шт.

2

19-18

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

CAPSCREW

6шт.

3

19-78

SPECIAL NUT,3/8"-16, G5

10шт.

4

19-45

BOLT,1/2" - 13 x 1 1/2", Gr 5

CAPSCREW used before S/N 3036, Serial Range: -3036

4шт.

Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

19-42

BOLT,1/2" - 13 x 2 1/4", Gr 5

CAPSCREW used after S/N 3035 (approx 1-1-84), Start Serial: 3035

4шт.

Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

5

19-81

NUT,1/2"-13, G5

4шт.

6

70-2502T1

PLATE

1шт.

7

50-1308T1

BRACKET

2шт.

8

18-570

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

FITTING (10) (qty 12 with 3-spool valve)

16шт.

9

19-224

WASHER,3/8", SAE

4шт.

10

50-1310T2

BRACE

Replaces 50-1310T1

1шт.

Superseded - old P/N is not used any longer; the new P/N is to be used in all cases. Old P/N should be removed from existing inventory. It is recommended that the old part not be used under any circumstances.

1шт.

11

70-2483T1

MOUNTING PARTS

COUPLER MOUNT, left, shown above, used before S/N 3036, Serial Range: -3036

1шт.

Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

70-3039T1

MOUNTING PARTS

COUPLER MOUNT, left, used after S/N 3035 (approx 1-1-84), Start Serial: 3035

1шт.

Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

12

70-2479T1

MOUNTING PARTS

COUPLER MOUNT, right, shown above, used before S/N 3036, Serial Range: -3036

1шт.

Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

70-3040T1

MOUNTING PARTS

COUPLER MOUNT, right, used after S/N 3035 (approx 1-1-84), Start Serial: 3035

1шт.

Superseded - old P/N must be used on models prior to S/N break. New P/N will fit models after the S/N break only.

1шт.

13

31-1767

HOSE ASSY.

HOSE, qty. 1 with 3-spool valve

2шт.

13a

31-2257

HOSE

2шт.

On early models, prior to about 4-20-83, ref. 13 and 13A were the same, P/N 31-1767, and ref 14 and 14A were the same, P/N 31-1768. To improve hose routing, the change to the different P/N's as shown below was made. When servicing those early models use the P/N's shown below.

1шт.

14

31-1768

HOSE ASSY.

HOSE, qty. 1 with 3-spool valve

2шт.

14a

31-2256

HOSE,15.88mm ID x 3505.2mm L, SAE 100R2

2шт.

On early models, prior to about 4-20-83, ref. 13 and 13A were the same, P/N 31-1767, and ref 14 and 14A were the same, P/N 31-1768. To improve hose routing, the change to the different P/N's as shown below was made. When servicing those early models use the P/N's shown below.

1шт.

15

COUPLER (qty 1 with 3-spool valve (see figure 8-17)

2шт.

16

HYDRAULIC VALVE ASSY (see figure 8-18)

1шт.

17

19-19

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

CAPSCREW

8шт.

18

232-4136

LOCK NUT,3/8"-16, GC

12шт.

19

19-107

WASHER

10шт.

20

50-1228T1

MOUNT PLATE

1шт.

21

COUPLER (used with 3-spool valve only) (see figure 8-17)

1шт.

22

50-2032T1

BRACKET

Replaces 70-2501T1

1шт.

Superseded - old P/N can be used for all models, but order new P/N when stock is depleted.

1шт.

23

50-2034T1

GROMMET

1шт.

24

19-23

BOLT,3/8" - 16 x 2 3/4", Gr 5

CAPSCREW (3-spool valve only)

2шт.

25

50-2037T1

STRAP

CABLE TIE (not shown)

4шт.

26

19-109

WASHER,1/2"

used after S/N 3035 (approx 1-1-84), Start Serial: 3035

4шт.

27

19-961

WASHER,17/32" x 1 1/2" x 1/8"

used after S/N 3035 (approx 1-1-84), Start Serial: 3035

4шт.
