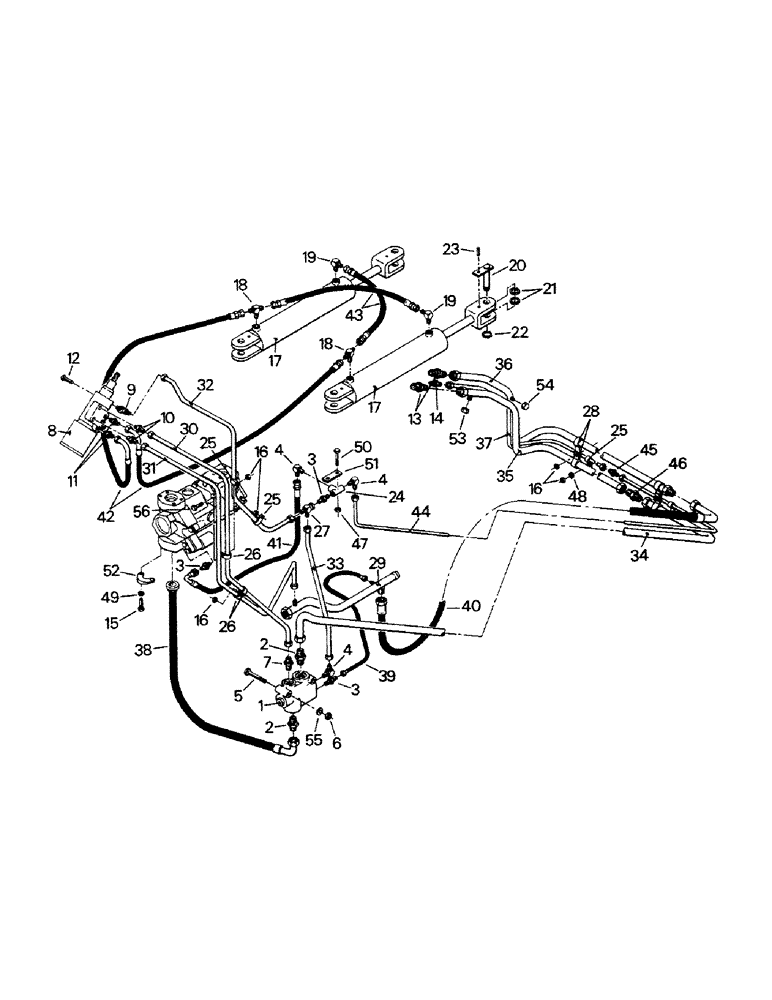

Запчасти Case IH CP-1325 (08-02) - HYDRAULIC SYSTEM, FRONT FRAME (07) - HYDRAULICS

1

PRIORITY VALVE ASSY (see figure 8-16)

1шт.

2

31-369

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring

FITTING (16)

2шт.

3

31-1751

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

FITTING (4)

3шт.

4

31-1753

ELBOW,90 Degree, 9/16"-18, 37 Degree x 7/16"-20, O-Ring

(4)

3шт.

5

19-725

BOLT,Hex, 5/16" - 18 x 3 1/4", Gr 5

CAPSCREW

2шт.

6

19-508

LOCK NUT

LOCK NUT

2шт.

7

18-608

HYD CONNECTOR,1 1/16"-12, 37 Degree x 7/8"-14, O-Ring

FITTING (10)

1шт.

8

STEERING CONTROL VALVE ASSY (see figure 8-10)

1шт.

9

31-2214

ADAPTER

ELBOW (4)

1шт.

10

18-783

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

FITTING (12)

2шт.

11

31-330

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

FITTING (10)

2шт.

12

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

CAPSCREW

4шт.

13

31-464

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 1/16"-12, O-Ring

FITTING (12)

2шт.

14

1-3211

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

FITTING (6)

1шт.

15

19-18

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

CAPSCREW

4шт.

16

19-78

SPECIAL NUT,3/8"-16, G5

7шт.

17

STEERING CYLINDER ASSY (see figure 8-15)

2шт.

18

31-1072

TEE,3/4"-16, 37 Degree x 3/4"-16, O-Ring Br

(8)

2шт.

19

31-324

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring

(8)

2шт.

20

50-1086T1

PIN

4шт.

21

2-3223T1

SPACER

8шт.

22

19-5619

RING, SNAP

SNAP RING

4шт.

23

19-5785

LOCK PIN,1/2" x 7/8", Slotted

Pin, 1/2" x 7/8", Slotted

4шт.

24

31-1778

VALVE

SHUTTLE VALVE

1шт.

25

22-1109

CLAMP

4шт.

26

31-1776

MOUNTING CLIP

CLAMP

3шт.

27

31-1757

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

28

2-4070T1

LEVER

CLAMP

8шт.

29

50-1374T2

TUBE ASSY.

TUBE

1шт.

30

50-1985T1

TUBE ASSY.

TUBE

1шт.

31

50-1986T2

TUBE

(50-1986T1 - code E)

1шт.

32

50-1987T2

TUBE

(50-1987T1 - code E)

1шт.

33

50-1379T2

TUBE

1шт.

34

50-1381T1

TUBE

1шт.

35

50-1382T4

TUBE

1шт.

36

50-1965T1

TUBE

1шт.

37

50-1384T3

TUBE

1шт.

38

31-1766

HOSE ASSY.

HOSE

1шт.

39

31-1994

HOSE ASSY.

HOSE

1шт.

40

31-2126

HOSE

1шт.

41

31-1764

HOSE ASSY.

HOSE

1шт.

42

31-1769

HOSE

1шт.

43

32-184

HOSE

2шт.

44

50-1372T1

TUBE

1шт.

45

31-1788

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FITTING

1шт.

46

31-565

UNION,1 5/16"-12, 37 Degree x 1 5/16"-12, 37 Degree

FITTING

1шт.

47

19-76

NUT,1/4"-20, G5

2шт.

48

19-224

WASHER,3/8", SAE

2шт.

49

19-117

LOCK WASHER,3/8"

(see fig. note) 3/8"

4шт.

50

19-719

BOLT,Hex, 1/4" - 20 x 2", Gr 5

CAPSCREW

2шт.

51

50-1572T1

MOUNT

1шт.

52

1-3526

COUPLING FLANGE

SPLIT FLANGE (P/N 31-1097)

2шт.

53

9403371

CAP,37 Degree, 9/16"-18

1шт.

54

9403373

CAP,37 Degree, 7/8"-14

1шт.

55

19-700

WASHER,5/16"

2шт.

56

19-16

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

CAPSCREW

1шт.
