Запчасти Case IH CM325 (04-27) - CLUTCH CONTROL AND LUBRICATION (04) - Drive Train

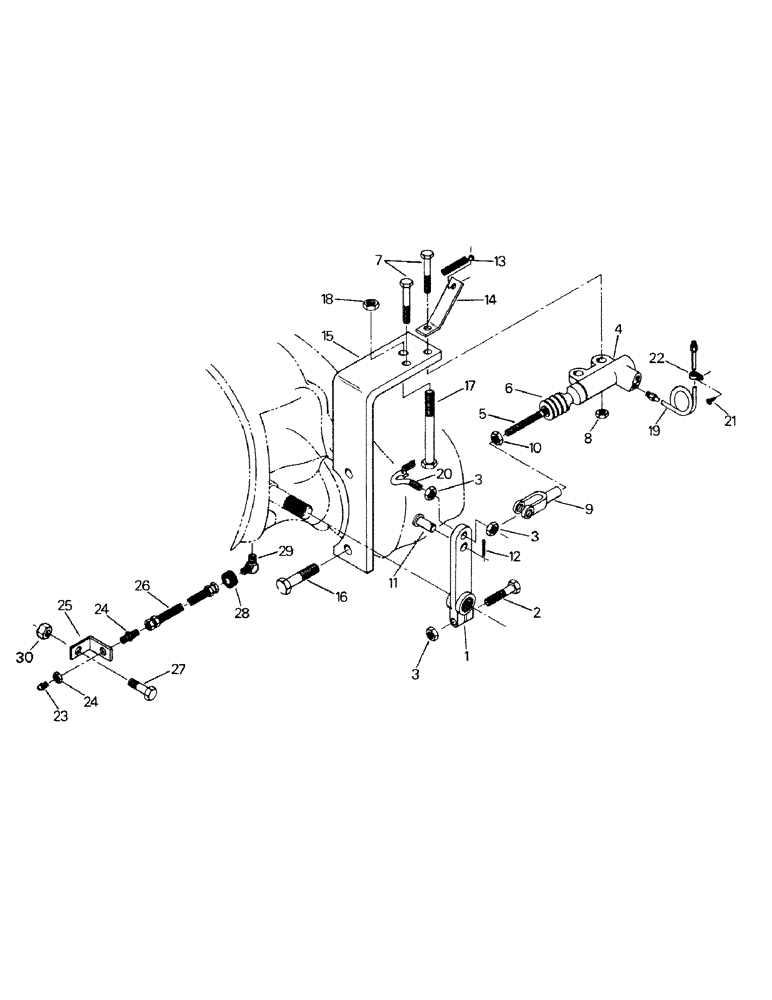

Схема запчастей Case IH CM325 - (04-27) - CLUTCH CONTROL AND LUBRICATION (04) - Drive Train
8
27
23
3
2
24
30
12
10
26
29
19
9
22
11
5
18
21
17
6
20
3
7
28
14
4
1
3
16
24
15
25
13

Артикул

Название

Примечание

Количество

1

54-298

LEVER

Clutch Lever

1шт.

2

19-21

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Capscrew

1шт.

3

19-78

SPECIAL NUT,3/8"-16, G5

3шт.

4

54-299

CYLINDER ASSY.,49.53mm Stroke

Slave Cylinder

1шт.

P/N 54-299 does not include 1-9436 push rod per ecn 20020.

1шт.

4

54-299R

REMAN-HYD CYLINDER

CM325, KM325, CM360, KM360 Steiger Series IV Panther, KM225 Steiger Series IV Bearcat, KM280 Steiger Series IV Cougar, SM-325 - STEIGER SERIES IV PANTHER TRACTOR all (1/84-12/84), STEIGER - SERIES IV BEARCAT TRACTOR, STEIGER - SERIES IV COUGAR TRACTOR - CM KM SM, STEIGER - SERIES IV PANTHER TRACTOR all (9/84-)

1шт.

4

54-299C

CORE-HYD CYLINDER

Return Number

1шт.

35-1009

KIT

Repair Kit

1шт.

5

1-9436

PUSH ROD

included with Ref. 4

1шт.

6

1-3082

BOOT

included with Ref. 4

1шт.

7

19-730

CAPSCREW,Hex, 7/16" - 14 x 2 1/2", Gr 5

2шт.

8

19-79

NUT,7/16"-14, G5

2шт.

9

19-139

YOKE

Clevis

1шт.

10

19-868

JAM NUT,Jam, 3/8"-24, G5

1шт.

11

1-145

CAPSCREW

Clevis Pin

1шт.

12

19-124

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

13

2-2027

SPRING

1шт.

14

2-2026

STRAP

1шт.

15

54-297

BRACKET

1шт.

16

19-817

SCREW,Hex, 5/8"-11 x 2", G8

Capscrew

2шт.

17

19-825

CAPSCREW,Hex, 1/2" - 13 x 4 1/2", Gr 8

1шт.

18

19-81

NUT,1/2"-13, G5

1шт.

19

25-1000

TUBE

1шт.

20

19-5574

EYEBOLT,3/8" - 16 x 275mm

Eye Bolt

1шт.

21

281-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

Tapping Screw

1шт.

22

32-68

COTTER PIN,3/32" x 1/2"

Clip

1шт.

23

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, , All except Komatsu engine 1/8"-27 x .66 lg

1шт.

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

NIPPLE, LUBE, , Komatsu engine only 45º, 1/8" NPT x 7/8" lg

1шт.

24

31-660

ADAPTER

1шт.

25

12-1518

BRACKET

all except Komatsu engine

1шт.

90-5994T1

SUPPORT

Bracket, Cummins 855 engine with starter, ASN 3975, 5-1-84

1шт.

4-550

BRACKET

Komatsu engine only

1шт.

26

32-309

HOSE

1шт.

27

19-479

CAPSCREW,Hex, 3/8" - 24 x 1", Gr 5

all except Komatsu engine

1шт.

19-17

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Capscrew, Komatsu engine only

1шт.

28

1-3031

GROMMET

1шт.

29

31-661

ELBOW,90 Degree, 7/16"-20, 37 Degree x 1/8"-27, NPTF

1шт.

30

232-4136

LOCK NUT,3/8"-16, GC

Nut, Komatsu engine only

1шт.

Выбрано товаров: 38
