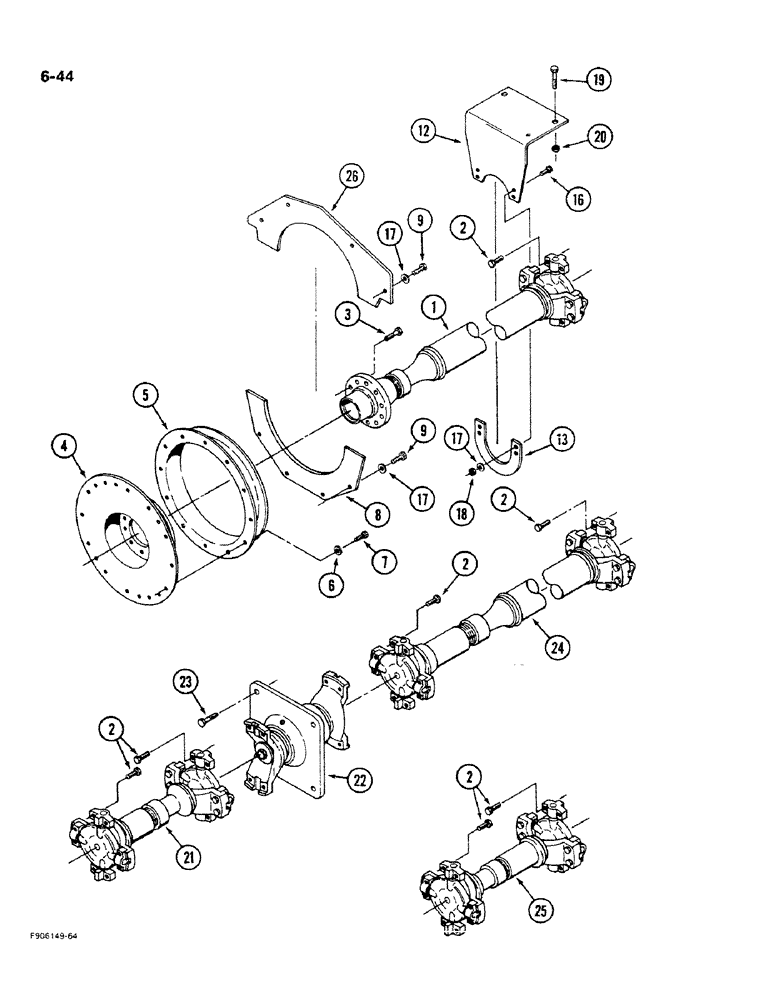

Запчасти Case IH 9280 (6-44) - DRIVE SHAFT MOUNTING (06) - POWER TRAIN

1

REF

INSTRUCTION

DRIVE SHAFT - input, 7C, engine to transmission, See Figure 6-46

1шт.

2

25279R1

BOLT,Hex, 1/2" - 20 x 2", Gr 8

- hex, 1/2 NF x 2 inch, Grade 8

28шт.

3

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

14шт.

4

90-2883T2

DAMPER

- vibration

1шт.

5

90-4389T1

SLINGER

- flywheel

1шт.

6

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

12шт.

7

326-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

12шт.

8

90-7116T1

COVER

- flywheel housing, lower

1шт.

9

313-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch, Grade 8

8шт.

12

90-6742T1

SHIELD

- top, drive shaft

1шт.

Ref #12A - 90-7521T1 Bracket for the (Ref #12) Shield

1шт.

13

90-6743T1

SHIELD

- bottom, driveshaft

1шт.

16

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

4шт.

17

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

12шт.

18

19-508

LOCK NUT

- hex lock, 5/16 inch NC

4шт.

19

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

2шт.

20

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

21

REF

INSTRUCTION

DRIVE SHAFT - intermediate rear, transmission to hanger bearing, See Figure 6-46

1шт.

22

REF

INSTRUCTION

BEARING - hanger, See Figure 6-46

1шт.

24

REF

INSTRUCTION

DRIVE SHAFT - rear, hanger bearing to rear axle, See Figure 6-46

1шт.

25

REF

INSTRUCTION

DRIVE SHAFT - front, transmission to front axle, See Figure 6-46

1шт.

26

90-7116T1

COVER

- flywheel housing, lower

1шт.
