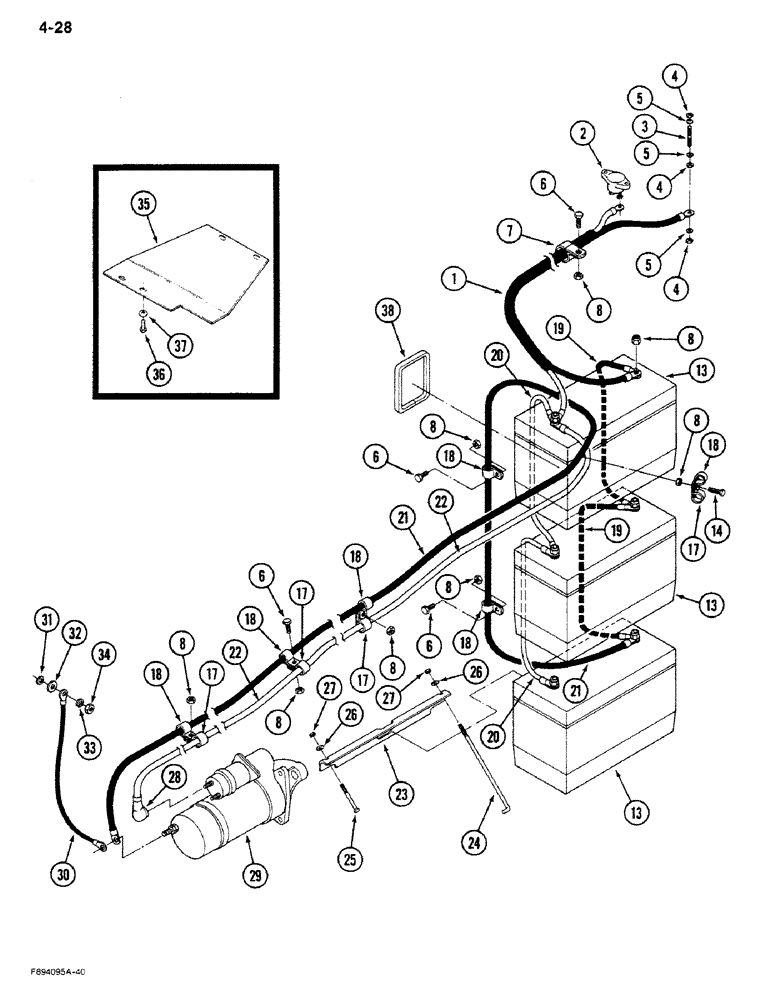

Запчасти Case IH 9280 (4-28) - BATTERIES AND CABLES (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
1
20-2458T1
HARNESS
ASSEMBLY - cab power
1шт.
2
20-2041T1
CIRCUIT-BREAKER
CIRCUIT BREAKER - electrical
1шт.
3
60-1880T1
STUD
- ground
1шт.
4
425-104
NUT,1/4"-20, Cl 5
- hex, 1/4 inch NC
4шт.
5
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
4шт.
6
413-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5
- hex, 3/8 NC x 1 inch
4шт.
7
31-1427
MOUNTING CLIP
CLAMP - harness, retaining
1шт.
8
19-341
LOCK NUT,3/8" - 16, GB
NUT - hex, lock, 3/8 inch NC
13шт.
13
BMF31FS
DRY BATTERY
BATTERY - tractor, 12 volt
3шт.
14
413-624
BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5
- hex, 3/8 NC x 1-1/2 inch
1шт.
17
299416C1
CLAMP
- retaining, harness
4шт.
18
299567C1
CLAMP,7/8", Insul, 3/8" Bolt
- retaining
6шт.
19
20-2459T1
CABLE
- battery
2шт.
20
20-2094T2
CABLE
- battery
2шт.
21
20-2456T1
CABLE
- battery
1шт.
22
20-2457T1
CABLE
- battery
1шт.
23
70-5548T1
ANGLE BAR
BRACKET - angle
3шт.
24
1-1946
TRUSS ROD
ROD - battery retaining
3шт.
25
413-540
BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5
- hex, 5/16 NC x 2-1/2 inch
3шт.
26
495-11034
WASHER,5/16", SAE
5/16" SAE (flat, 11/32 x 11/16 x 1/16")
6шт.
27
231-1445
NUT,5/16"-18, GB
NUT - hex lock, 5/16 inch NC
6шт.
28
20-2424T1
BOOT
- cable end
1шт.
29
REF
INSTRUCTION
STARTER - engine, See Figure 4-30 - 4-32
1шт.
30
22-33
CABLE
- starter, ground
1шт.
31
19-517
LOCK WASHER,Ext Tooth, 5/8"
WASHER - lock, external tooth, 5/8 inch NC
1шт.
32
495-11053
WASHER,1/2", SAE
(17/32" x 1-1/16" x 5/64") 1/2", SAE
1шт.
33
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
1шт.
34
19-81
NUT,1/2"-13, G5
- hex, 1/2 inch NC
1шт.
35
60-4661T1
COVER
- cab power supply
1шт.
36
413-412
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5
- hex, 1/4 NC x 3/4 inch
4шт.
37
495-11028
WASHER,1/4", SAE
(flat, 9/32 x 5/8 x 1/16") 1/4", SAE
4шт.
38
NSS
NOT SOLD SEPARAT
GROMMET - hose protection (Order 31-1785T1 and, Serial Range: cut-length)
1шт.
31-1785T1
GROMMET
- bulk, 10 foot roll
1шт.
Выбрано товаров: 33
