Запчасти Case IH 9280 (3-10) - THROTTLE CONTROLS, ENGINE ATTACHMENT (03) - FUEL SYSTEM

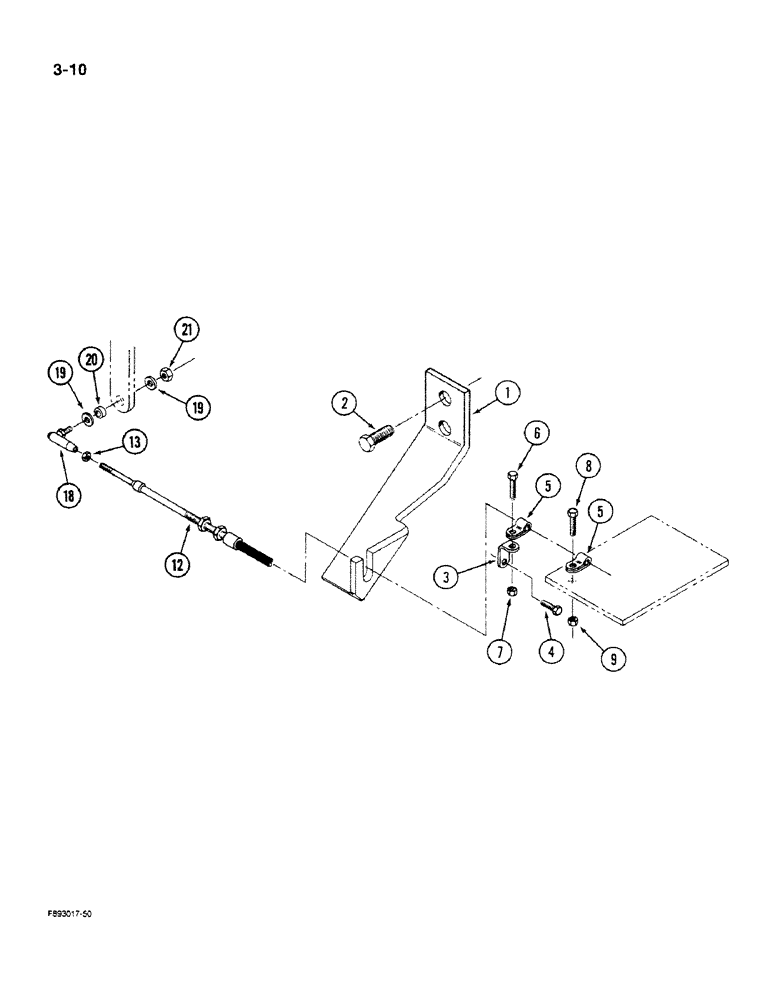

Схема запчастей Case IH 9280 - (3-10) - THROTTLE CONTROLS, ENGINE ATTACHMENT (03) - FUEL SYSTEM
3
5
19
5
12
13
7
8
19
20
9
6
18
4
2
1
21

Артикул

Название

Примечание

Количество

1

90-6777T2

SUPPORT

BRACKET - throttle cable

1шт.

2

19-683

BOLT,Hex, 9/16" - 18 x 1", Gr 5, Full Thd

- hex, 9/16 NF x 1 inch

2шт.

3

90-5994T1

SUPPORT

BRACKET - mounting, cable clamp

1шт.

4

24848R1

BOLT,Hex, 7/16" - 14 x 3/4", Gr 8

Hex, 7/16"-14 x 3/4", G8

1шт.

5

155850H1

CLAMP,3/8", 1/4" Bolt

- retaining

2шт.

6

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

7

425-106

NUT,3/8"-16, Cl 5

1шт.

8

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

1шт.

9

19-77

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

12

60-6425T1

CABLE,3048mm L

- throttle (Cab), Includes: Ref. 13

1шт.

12

60-6424T1

CABLE

- throttle (ROPS), Includes: Ref. 13

1шт.

13

19-308

NUT,#10 - 32

- hex, No.10

1шт.

18

A75447

BALL JOINT

JOINT - ball, throttle

1шт.

Bracket that no. 18 slips into is part no. 90-7644t1

1шт.

19

19-699

WASHER,3/16"

- flat, 7/32 x 1/2 x 3/64 inch

2шт.

20

90-4150T1

BUSHING

- pivot

1шт.

21

19-308

NUT,#10 - 32

- hex, No. 10 NF

1шт.

21

9411893

LOCK NUT,#10-32, GB

NUT - lock, No. 10-32

1шт.

Выбрано товаров: 18
