Запчасти Case IH 9280 (3-02) - FUEL LINE SYSTEM (03) - FUEL SYSTEM

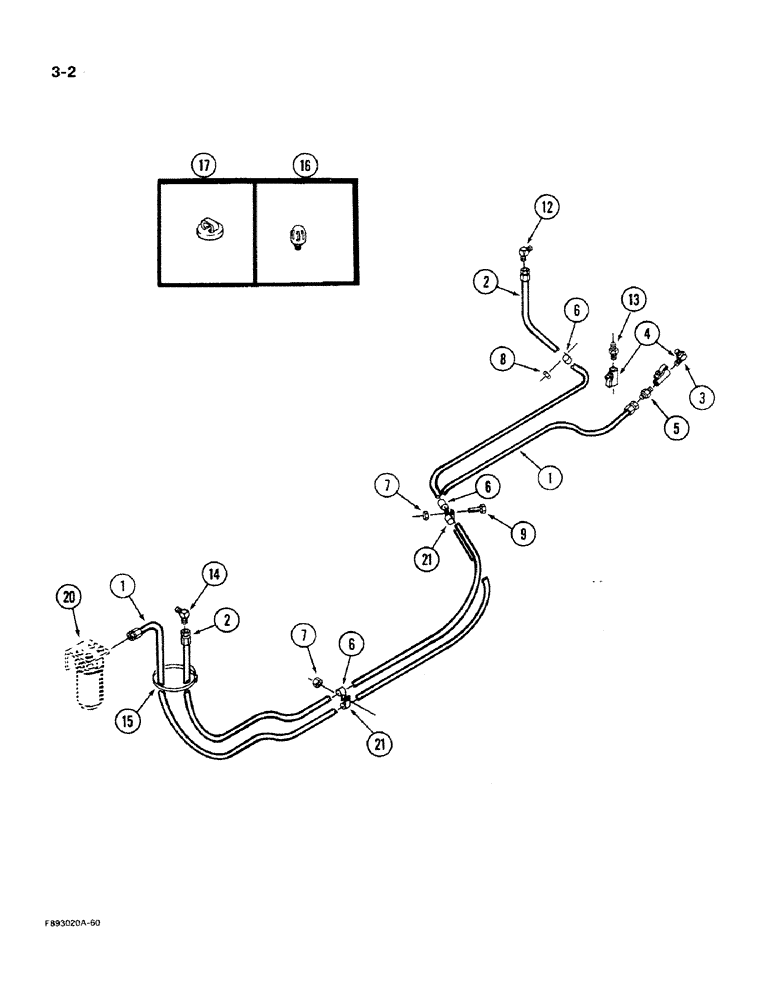

Схема запчастей Case IH 9280 - (3-02) - FUEL LINE SYSTEM (03) - FUEL SYSTEM
1
6
1
4
12
21
2
20
7
13
8
14
5
3
21
15
7
16
9
6
2
17
6

Артикул

Название

Примечание

Количество

1

31-2779

HOSE

- fuel supply, 178 inch

1шт.

2

31-2780

HOSE

- fuel return, 229 inch

1шт.

3

31-1585

FITTING

ELBOW - 90 degree, 1/2 inch PT

1шт.

4

31-1267

SHUT-OFF VALVE

VALVE - shut off, 1/2 inch PT

2шт.

5

31-449

HYD CONNECTOR,7/8"-14, 37 Degree x 1/2"-14, NPTF

ADAPTER - 7/8-14 male x 1/2 inch PT male..

1шт.

6

299567C1

CLAMP,7/8", Insul, 3/8" Bolt

- retaining

7шт.

7

425-106

NUT,3/8"-16, Cl 5

6шт.

8

19-341

LOCK NUT,3/8" - 16, GB

NUT - hex, lock, 3/8 inch NC

1шт.

9

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

12

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 1/2 PT x 7/8 inch thread

1шт.

13

31-345

FITTING

CONNECTOR - straight, 1/2 inch PT

1шт.

14

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel flare

1шт.

15

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch long

1шт.

16

1971726C1

BREATHER,1/4" - 18

VENT - breather, fuel tank

1шт.

17

A162191

CAP

- fuel

1шт.

20

REF

INSTRUCTION

ELEMENT - filter, fuel, See Figure 2-17

1шт.

21

308576R1

CLAMP

- retaining

6шт.

Выбрано товаров: 17
