(9-88) - SHIPPING AND LIFTING ACCESSORIES

Запчасти Case IH 9280 (9-88) - SHIPPING AND LIFTING ACCESSORIES (09) - CHASSIS/ATTACHMENTS

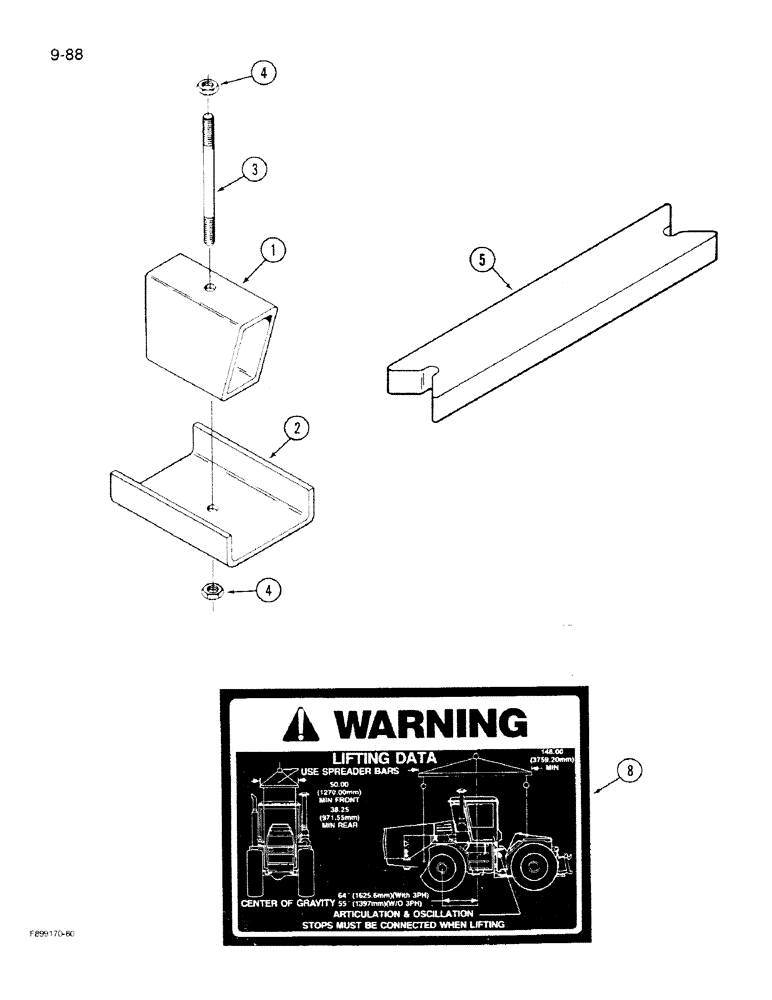

Схема запчастей Case IH 9280 - (9-88) - SHIPPING AND LIFTING ACCESSORIES (09) - CHASSIS/ATTACHMENTS
2
4
4
1
3
5
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

70-2020T2

TUBE - oscillation stop

2шт.

2

70-2021T1

CHANNEL - oscillation stop

2шт.

3

19-6106

STUD - threaded, 1/2 NC x 7 inch

2шт.

4

19-653

LOCK NUT

- hex lock, 1/2 inch NC

4шт.

5

70-5449T1

BAR

- lock, articulation stop

2шт.

8

2-6935T1

DECAL

- lifting data

1шт.
