Запчасти Case IH 9280 (9-48) - CLOTH SEAT, AIR RIDE SUSPENSION (CONTD) (09) - CHASSIS/ATTACHMENTS

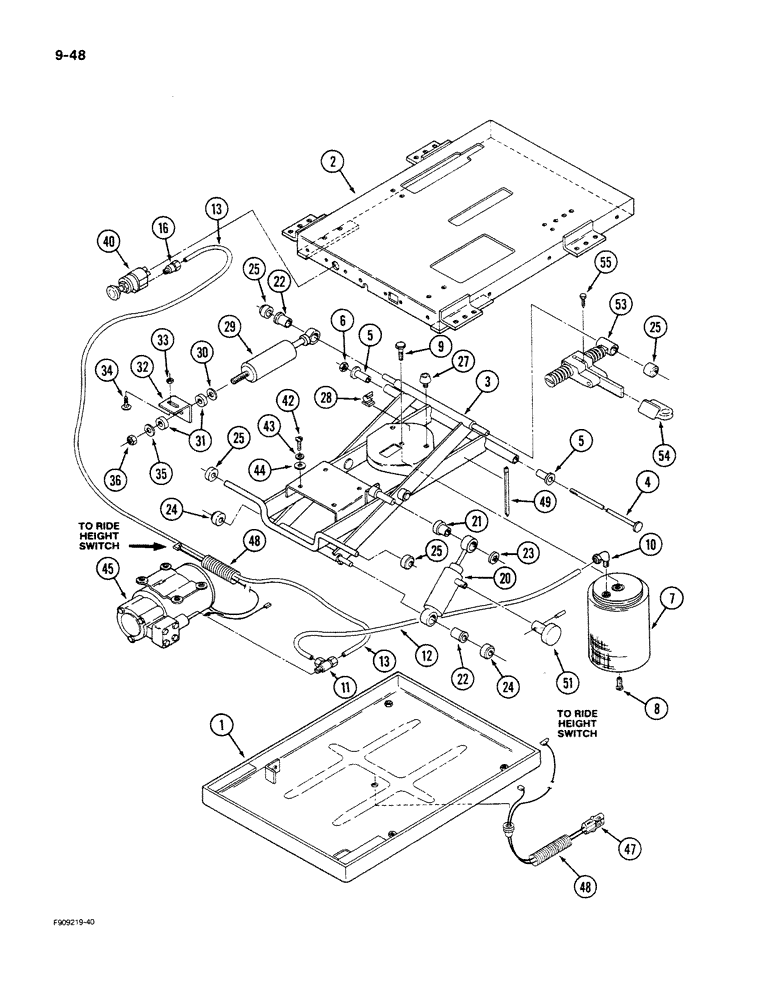

Схема запчастей Case IH 9280 - (9-48) - CLOTH SEAT, AIR RIDE SUSPENSION (CONTD) (09) - CHASSIS/ATTACHMENTS
25
31
42
53
27
2
16
6
21
3
8
5
48
13
24
9
48
49
35
28
34
12
43
1
54
30
36
25
44
29
22
7
25
20
24
33
22
23
25
13
47
40
32
11
4
5
10
55
45
51

Артикул

Название

Примечание

Количество

1987159C2

SEAT ASSY.

SEAT ASSEMBLY - air ride suspension, Includes: Ref. 1 - 55, 1 - 45 on Figure 9-42, 1 - 21 on Figure 9-44, and 1 - 41 on Figure 9-46

1шт.

1990641C1

PACKAGE

SUSPENSION KIT - seat, Includes: Ref. 1 - 55

1шт.

1

1981834C1

HOUSING

- lower, suspension

1шт.

2

1990642C1

HOUSING

- upper

1шт.

3

1990643C1

FRAME ASSY

ARM ASSEMBLY - suspension

1шт.

4

A49529

SHAFT

- bearing

2шт.

5

A47760

BUSHING

TUBE - bearing

2шт.

Part of P/N 1990644C1 Bearing Kit

1шт.

6

230-4216

LOCK NUT,3/8"-16, GA

NUT - hex lock, 3/8 inch NC

1шт.

7

1981842C1

SPRING

- air

1шт.

8

443-13812

SCREW,Cross Flat Hd, 3/8"-16 x 3/4"

- flat head cross slot machine, 3/8 NC x 3/4"

1шт.

9

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

1шт.

1990548C1

PACKAGE

REPAIR KIT - airline and fittings, Includes: Ref. 10 - 16

1шт.

10

NSS

NOT SOLD SEPARAT

ELBOW - 90 degree, 1/8 PT x 1/4 inch tube

1шт.

11

NSS

NOT SOLD SEPARAT

TEE - 1/8 PT x 1/4 inch tube

1шт.

12

NSS

NOT SOLD SEPARAT

TUBE - nylon, 1/4 OD x 9-1/2 inch

1шт.

13

NSS

NOT SOLD SEPARAT

TUBE - nylon, 1/4 OD x 28 inch

1шт.

16

NSS

NOT SOLD SEPARAT

ADAPTER - 1/4 OD x 1/8 PT

1шт.

1987218C1

PACKAGE

SHOCK KIT suspension, Includes: Ref. 20 - 22, 23, 51, 52 and 56

1шт.

20

1343854C1

DAMPER

SHOCK ABSORBER - seat

1шт.

21

A45501

BUSHING,0.504" ID x 0.87" OD x 1.417"

BEARING - shock absorber

1шт.

22

1981846C1

CYLINDER END CAP

BUSHING - shock

2шт.

23

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

1шт.

24

1981788C1

SHIFTER ROLLER

ROLLER - suspension

2шт.

Part of P/N 1990644C1 Bearing Kit

1шт.

25

NSS

NOT SOLD SEPARAT

ROLLER - suspension

4шт.

Part of P/N 1990644C1 Bearing Kit

1шт.

27

1981849C1

SHOCK ABSORBER

BUMPER - rubber

2шт.

28

NSS

NOT SOLD SEPARAT

CLIP - harness and tube

1шт.

1990646C1

SHOCK ABSORBER

SHOCK KIT - isolator (Includes quantity 1 of Ref. 22), Includes: Ref. 29

1шт.

29

NSS

NOT SOLD SEPARAT

SHOCK - isolator

1шт.

30

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

31

A49679

BUSHING

- rubber

2шт.

32

1981845C1

ANGLE

BRACKET - shock mounting

1шт.

33

131-1180

LOCK NUT,1/4"-20, GA

NUT, LOCK, 1/4"-20, GA

2шт.

34

434-38

BOLT

BOLT - round head square neck, 1/4 NC x 1/2 inch

2шт.

35

A49678

WASHER

- flat, 21/64 x 1 x 5/64 inch

1шт.

36

131-1169

LOCK NUT,5/16"-24, GA

NUT, LOCK, 5/16"-24, GA

1шт.

40

1981852C2

IGNITION SWITCH

SWITCH ASSEMBLY - air control

1шт.

42

440-1086

SCREW,Cross Pan Hd, #8-32 x 3/8"

- pan head machine, No. 8 x 3/8"

4шт.

43

495-31022

WASHER,#10

4шт.

44

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 5/64") 5/16"

4шт.

45

1981843C1

COMPRESSOR

- air

1шт.

47

1981848C1

HARNESS

ASSEMBLY - wire

1шт.

48

1343833C1

TUBE

GUARD - harness

2шт.

49

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

51

1343853C1

LEVER ASSY & KNOB

KNOB - flex shock

1шт.

52

138-317

LOCK PIN,1/8" x 5/8", Slotted

PIN, 1/8" x 5/8", Slotted

1шт.

53

1990645C1

LATCH

ASSEMBLY - isolator, Includes: Ref. 54

1шт.

54

1981850C1

GRIP

KNOB - isolator

1шт.

55

187-1069

SELF-TAP SCREW,5/16" - 18 x 3/4"

SCREW - hex tap, 5/16 NC x 5/8 inch

2шт.

1990644C1

PACKAGE

BEARING KIT, Includes: Ref. 5, 24 and 25

1шт.
