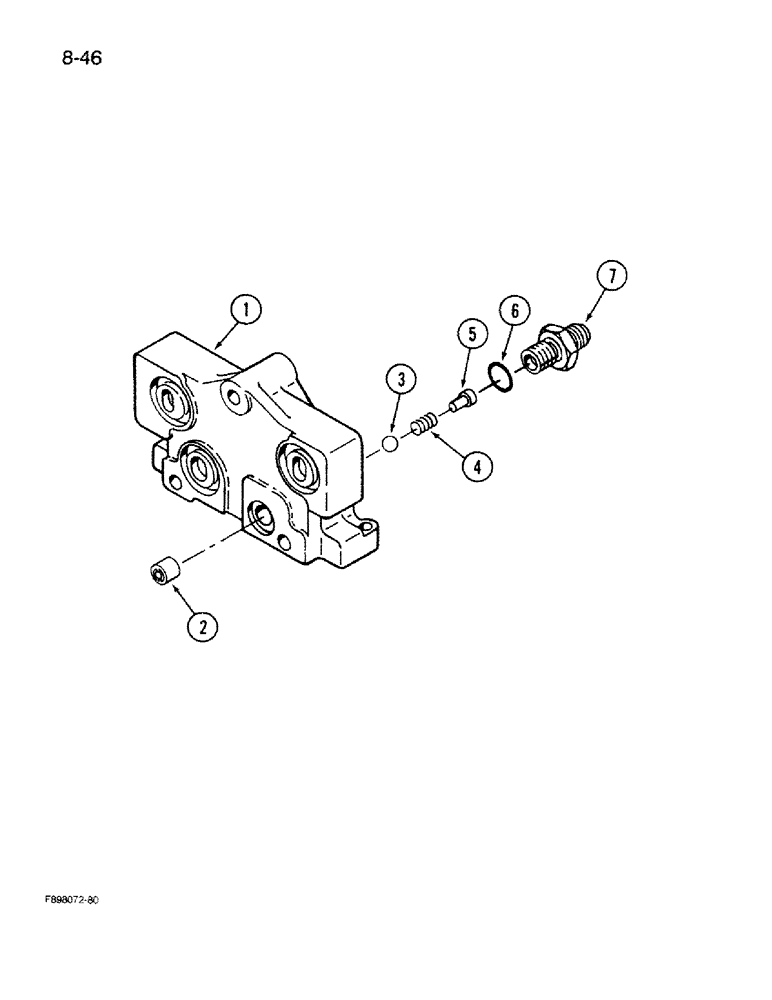

Запчасти Case IH 9280 (8-46) - HYDRAULIC REMOTE VALVE INLET (08) - HYDRAULICS

50-3603T1

COVER

ASSEMBLY - inlet (Replaces A47169), Incl 1

1шт.

REPLACED BECAUSE THE OLD NUMBER HAD A CHECK VALVE IN IT THAT ALLOWED THE DUMP TO GO INTO HIGH PRESSURE STANDBY PER F97331.

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - inlet cover

1шт.

2

A47202

SEAT

- valve

1шт.

No Longer Required, Order 50-3603T1 This Application

1шт.

3

211-257

BALL,1/4" Dia

Chrome alloy steel, grade 50 1/4" Dia

1шт.

No Longer Required, Order 50-3603T1 This Application

1шт.

4

A47176

SPRING

- valve

1шт.

No Longer Required, Order 50-3603T1 This Application

1шт.

5

A47214

RETAINER

- spring

1шт.

No Longer Required, Order 50-3603T1 This Application

1шт.

7

A47185

FITTING

- inlet

1шт.

No Longer Required, Order 50-3603T1 This Application

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

No Longer Required, Order 50-3603T1 This Application

1шт.
