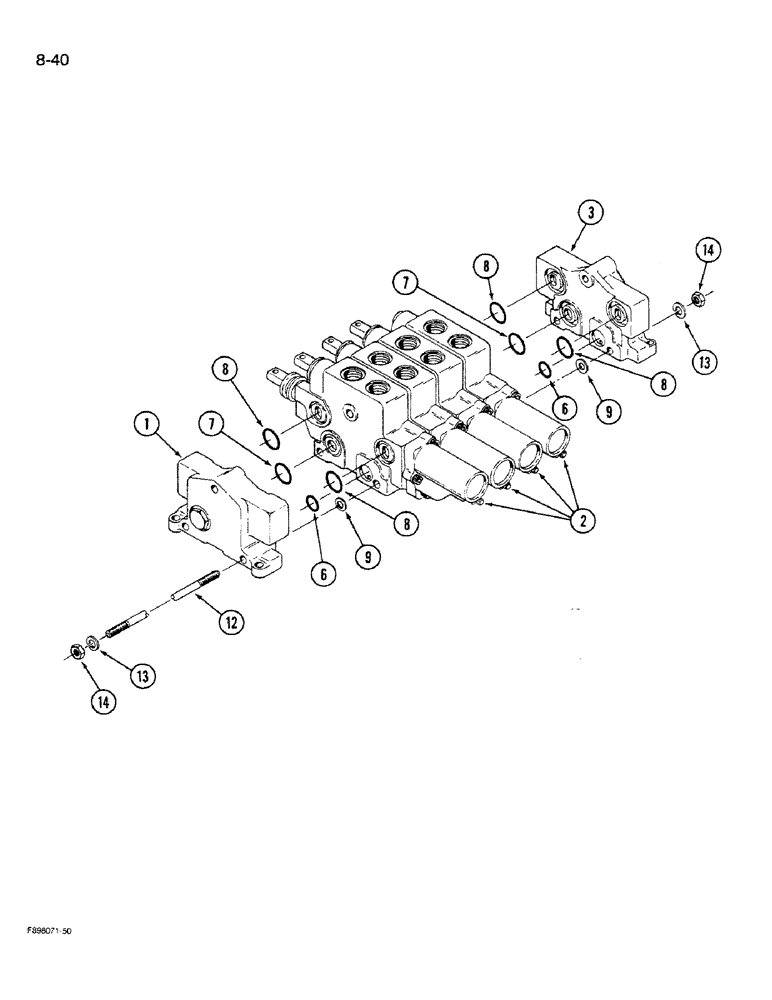

Запчасти Case IH 9280 (8-40) - HYDRAULIC REMOTE VALVE ASSEMBLY (08) - HYDRAULICS

50-3147T91

VALVE, CONTROL

VALVE ASSEMBLY - remote, three spool, Includes: Ref. 1 - 14

1шт.

50-3148T91

VALVE, CONTROL

VALVE ASSEMBLY - remote, four spool, Includes: Ref. 1 - 14

1шт.

1

A52403

BODY

COVER - end

1шт.

2

REF

INSTRUCTION

BODY ASSEMBLY - valve, float, See Figures 8-43 and 8-45

1шт.

3

REF

INSTRUCTION

BODY ASSEMBLY - inlet, See Figure 8-47

1шт.

2-3792T1

SEAL KIT

SEAL KIT - valve section, Includes: Ref. 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - seal

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING - seal

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - seal

2шт.

9

NSS

NOT SOLD SEPARAT

O-RING - seal

3шт.

12

19-5978

STUD

- valve, three spool remote, 3/8 NC x 9-7/8 inch

3шт.

12

19-5977

STUD

- valve, four spool remote, 3/8 NC x 11-3/4 inch

3шт.

13

492-11038

LOCK WASHER,3/8"

6шт.

14

425-106

NUT,3/8"-16, Cl 5

6шт.
