Запчасти Case IH 9280 (6-024) - POWER SHIFT TRANSMISSION ASSEMBLY 9" CLUTCH PACK ASSEMBLY (06) - POWER TRAIN

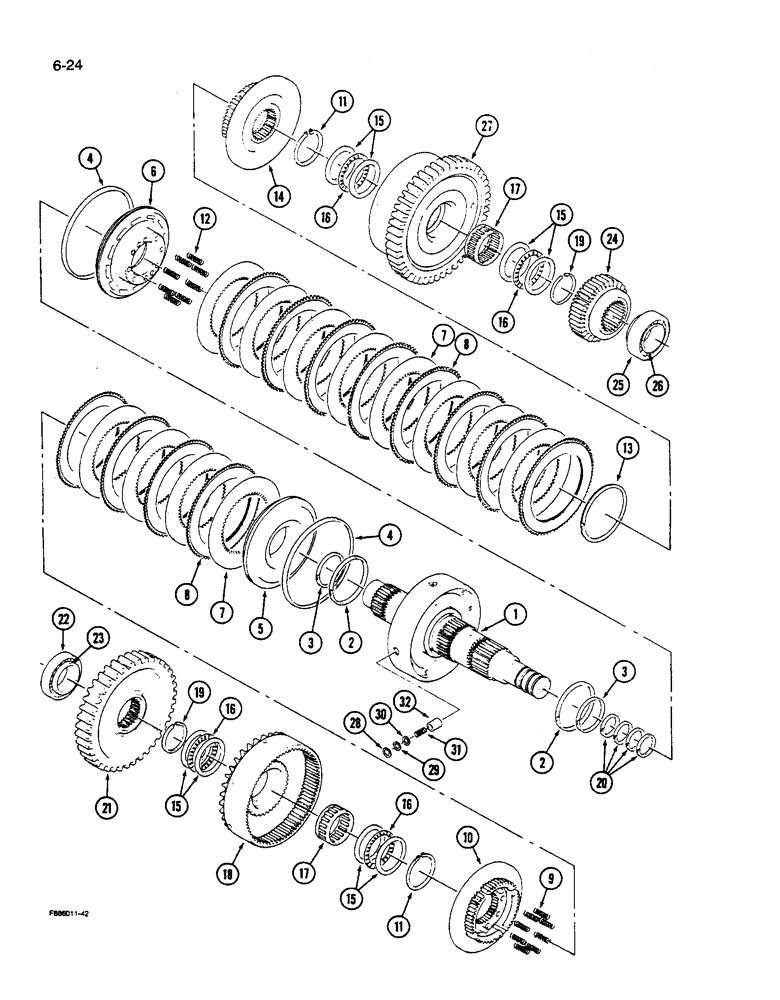

Схема запчастей Case IH 9280 - (6-024) - POWER SHIFT TRANSMISSION ASSEMBLY 9" CLUTCH PACK ASSEMBLY (06) - POWER TRAIN
15
26
5
6
16
3
15
4
22
19
7
3
7
11
20
27
15
8
1
16
12
17
19
11
25
21
24
30
4
23
8
29
17
14
2
28
16
32
16
10
18
15
9
31
2
13

Артикул

Название

Примечание

Количество

90-7016T91

GEARBOX ASSY

TRANSMISSION ASSEMBLY - power shift (Continued), Includes: Ref. 1 - 32

1шт.

313686A1R

REMAN-TRANSMISSION

Remanufactured Transmission 4WD Powershift; On The Steiger 9280 BSN JCB0028400, Harness Part Number 60-6289T1 Must Also Be Ordered When Replacing Original Transmission 90-7016T91.

1шт.

313686A1C

CORE-TRANSMISSION

Return Part Number

1шт.

S5000S00F

CLUTCH HOUSING

CLUTCH PACK ASSEMBLY - 9 inch, Includes: Ref. 1 - 32

1шт.

1

S5900S00F

SHAFT ASSY.

SHAFT ASSEMBLY - drum

1шт.

2

S5520S00F

RING

RING - piston

2шт.

Included in Gasket Kit 33-1559T1

1шт.

3

S5510S00F

RING

RING - piston

2шт.

Included in Gasket Kit 33-1559T1

1шт.

4

S4430S00F

RING

RING - sealing

2шт.

Included in Gasket Kit 33-1559T1

1шт.

5

33-1523T1

PISTON

PISTON - clutch

1шт.

6

33-1522T1

RACE

PISTON - clutch

1шт.

7

S5120S00F

CLUTCH DISC

CLUTCH DISK PLATE - steel, flat, 2.6 mm thick

1шт.

Steel plates, Ref. 7; a total of 12 pieces must be used.

1шт.

7

S5130S00F

CLUTCH DISC

CLUTCH DISK PLATE - steel, flat, 2.4 mm thick

1шт.

Steel plates, Ref. 7; a total of 12 pieces must be used.

1шт.

8

33-1520T1

NOTCHED DISK

PLATE - faced

12шт.

9

S5550S00F

SPRING

SPRING - return, piston

8шт.

10

S5850S00G

HUB

HUB - clutch

1шт.

11

S5100S00F

RING, SNAP

RING SNAP RING - snap

2шт.

12

S5540S00F

SPRING

SPRING - return, piston

8шт.

13

S5490S00F

RING

RING - retaining

1шт.

14

S5840S00G

HUB

HUB - clutch

1шт.

15

S5230S00F

BEARING WASHER

WASHER - thrust, bearing

8шт.

16

S5050S00F

THRUST BEARING

BEARING - thrust

4шт.

17

S5070S00F

BEARING, NEEDLE,76.2mm ID x 85.5mm OD x 31.5mm W

BEARING - needle

2шт.

18

S5080S00F

PINION

GEAR - clutch (37 Tooth)

1шт.

19

S5040S00F

RING

RING - retaining

2шт.

20

S3070S00F

RING

RING - sealing

4шт.

Included in Gasket Kit 33-1559T1

1шт.

21

S5060S00F

PINION

GEAR - input (43 Tooth)

1шт.

22

ST967

BEARING, CUP,2.5" ID x 4.4385" OD x 1.1955"

CUP - bearing

1шт.

23

ST2016A

BEARING

CONE ASSEMBLY - bearing

1шт.

24

S5270S00F

PINION

GEAR - drive (21 Tooth)

1шт.

25

90-6579T1

BEARING CUP

CUP - bearing

1шт.

26

ST2018A

BEARING ASSY,66.67mm ID x 30.24mm W

CONE ASSEMBLY - bearing

1шт.

27

S5280S00F

GEAR

GEAR - clutch (46 Tooth)

1шт.

28

SM9222160

RING, SNAP

RING SNAP RING - snap

2шт.

29

S3220S00F

SHIM

SHIM - valve

1шт.

30

S3230S00F

SHIM

SHIM - valve

1шт.

31

S3210S00F

SPRING

SPRING - valve

2шт.

32

S3200S00F

DRAIN VALVE

VALVE - drain

2шт.

33-1559T1

GASKET

GASKET KIT - transmission, Includes: Ref. 2, 3, 4 & 20

1шт.

Выбрано товаров: 44
