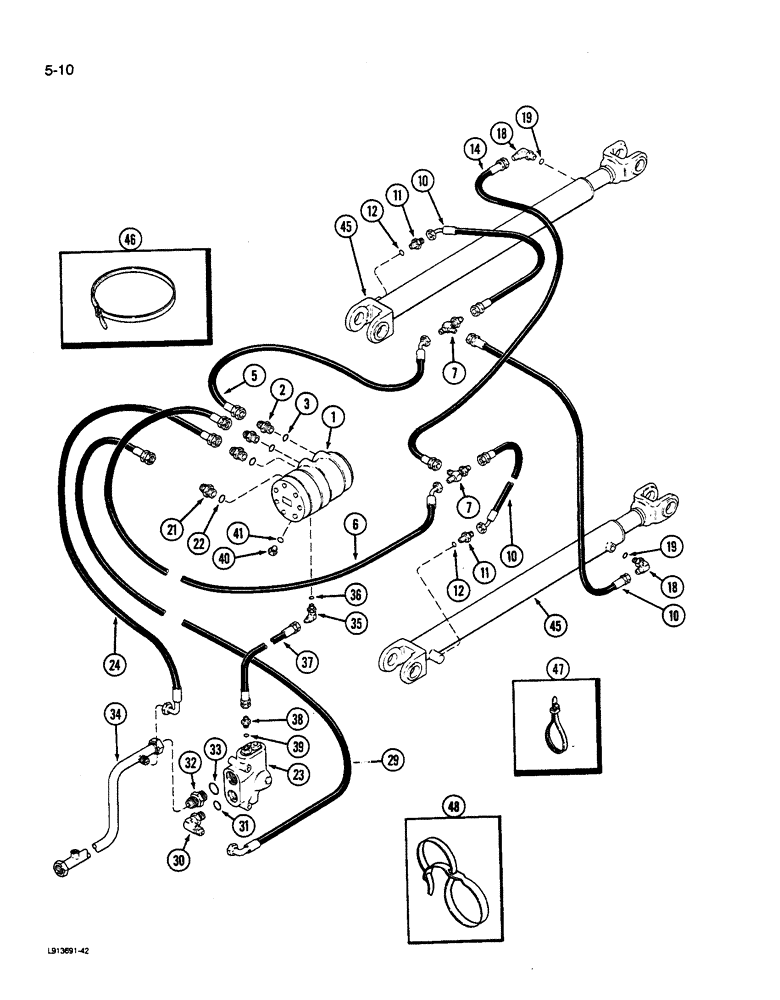

Запчасти Case IH 9280 (5-010) - SYSTEM HYDRAULICS (05) - STEERING

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, steering (See Figure 5-12)

1шт.

2

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 7/8-14 flare x 1-1/16-12 inch, Includes: Ref. 3

3шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

5

31-2958

HOSE

ASSEMBLY - control valve to left cylinder tee (92 inch)

1шт.

6

31-2959

HOSE,15.88mm ID x 2743mm L

ASSEMBLY - control valve to cylinder right tee (108 inch)

1шт.

7

31-2894

TEE

- adapter, 3/4-16 inch thread

2шт.

10

31-2960

HOSE

ASSEMBLY - steering cylinder to tee (27 inch)

2шт.

11

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - straight, 3/4-16 inch thread, Incl. Ref 12

2шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

14

31-2961

HOSE

ASSEMBLY - cylinder elbow to tee (63 inch)

2шт.

18

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree adjustable, 3/4-16 inch thread, Includes: Ref. 19

2шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

21

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR - straight, 1-1/16-12 inch thread, Incl. Ref. 22

2шт.

22

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

- 1-3/64 ID x 1/64 inch

1шт.

23

REF

INSTRUCTION

VALVE ASSEMBLY - priority (See Figure 8-24)

1шт.

24

31-2820

HOSE

ASSEMBLY - control valve to filter tube (30 inch)

1шт.

29

31-1041

HOSE,19.05mm ID x 838mm L

ASSEMBLY - control valve to priority valve (33 inch)

1шт.

30

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, adjustable, 1-1/16-12 inch thread, Incl. Ref. 31

1шт.

31

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

32

218-5072

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/8" - 12 Male ORB

CONNECTOR - straight, 1-5/8-12 inch thread, Includes: Ref. 33

1шт.

33

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

34

REF

INSTRUCTION

TUBE ASSEMBLY - priority valve to filter (See page 8-5)

1шт.

35

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree adjustable, 7/16-20 inch thread, Includes: Ref. 36

1шт.

36

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

37

31-2814

HOSE

ASSEMBLY - load sense, control valve (28 inch)

1шт.

38

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR - straight, 7/16-20 inch thread, Incl. Ref. 39

1шт.

39

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

40

9672438

PLUG,7/16" - 20 ORB

Incl. Ref. 41 Hex Hd, 7/16"-20 ORB

1шт.

41

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

45

REF

INSTRUCTION

CYLINDER ASSEMBLY - steering (See Figure 5-14)

2шт.

46

50-2037T1

STRAP

- nylon, hose retainer

1шт.

47

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch long

1шт.

48

D147773

CLAMP

STRAP - double, hose retaining

2шт.
