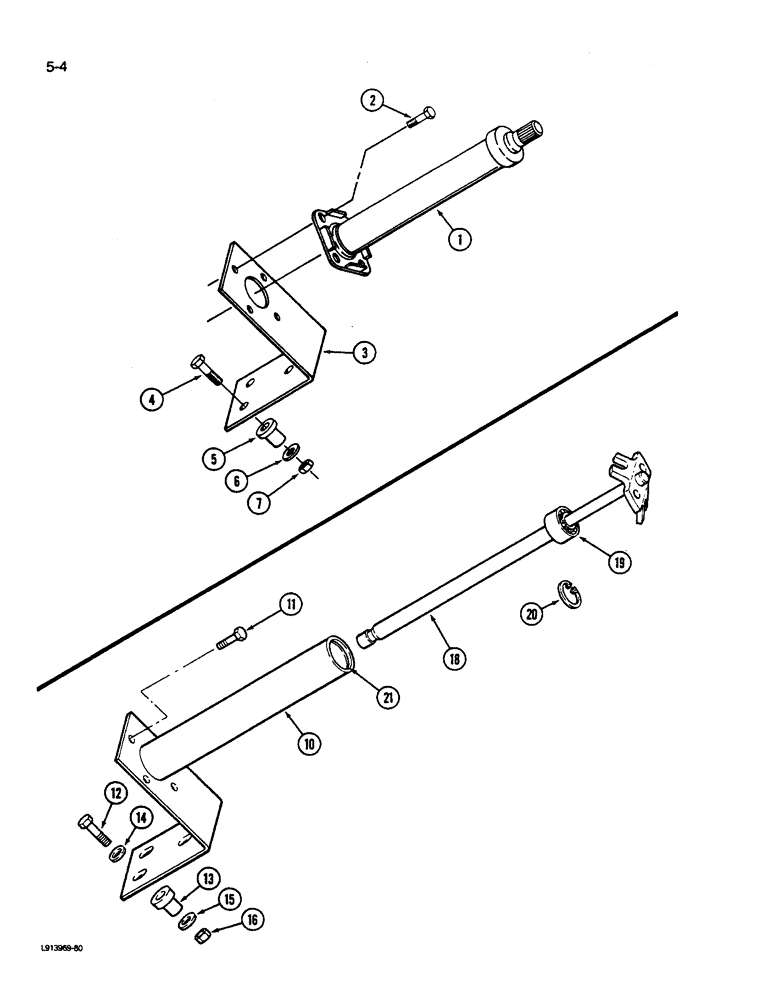

Запчасти Case IH 9280 (5-004) - COLUMN LOWER SHAFT PRIOR TO P.I.N. JCB0028400 (05) - STEERING

1

60-4230T1

STEERING COLUMN

SHAFT ASSEMBLY - steering

1шт.

Prior to S/N JCB0028400

1шт.

2

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

3

60-4231T1

SUPPORT

BRACKET - mounting, steering shaft

1шт.

4

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

3шт.

5

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

CUSHION - rubber

3шт.

6

495-21044

WASHER,3/8"

3шт.

7

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

3шт.

10

60-6665T1

STEERING COLUMN

COLUMN - steering, lower shaft, Start Serial: JCB0028400

1шт.

S/N JCB0028400 & After

1шт.

11

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, Grade 8, Start Serial: JCB0028400

4шт.

12

426-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 8

- hex, 3/8 NC x 1-1/2 inch, Grade 8, Start Serial: JCB0028400

3шт.

13

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

CUSHION - rubber, Start Serial: JCB0028400

3шт.

14

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8", Start Serial: JCB0028400

6шт.

15

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

- flat, 13/32 x 1-1/4 x 3/32 inch, Start Serial: JCB0028400

3шт.

16

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC, Start Serial: JCB0028400

3шт.

18

NSS

NOT SOLD SEPARAT

SHAFT ASSEMBLY - lower, steering (Order 60-6665T1), Includes: Ref. 19 and 20, Start Serial: JCB0028400

1шт.

19

60-6177T1

BALL BEARING,0.7874" ID x 1.8504" OD x 0.5512"

BEARING - ball, Start Serial: JCB0028400

1шт.

20

19-5860

SNAP RING,#75, Ext

Ring, Snap, #75, Ext, Start Serial: JCB0028400

1шт.

21

100-21185

SNAP RING,1.852", Int, #185

Ring, Snap, 1.852", Int, #185, Start Serial: JCB0028400

1шт.
