Запчасти Case IH 9280 (4-048) - BATTERIES & CABLES (04) - ELECTRICAL SYSTEMS

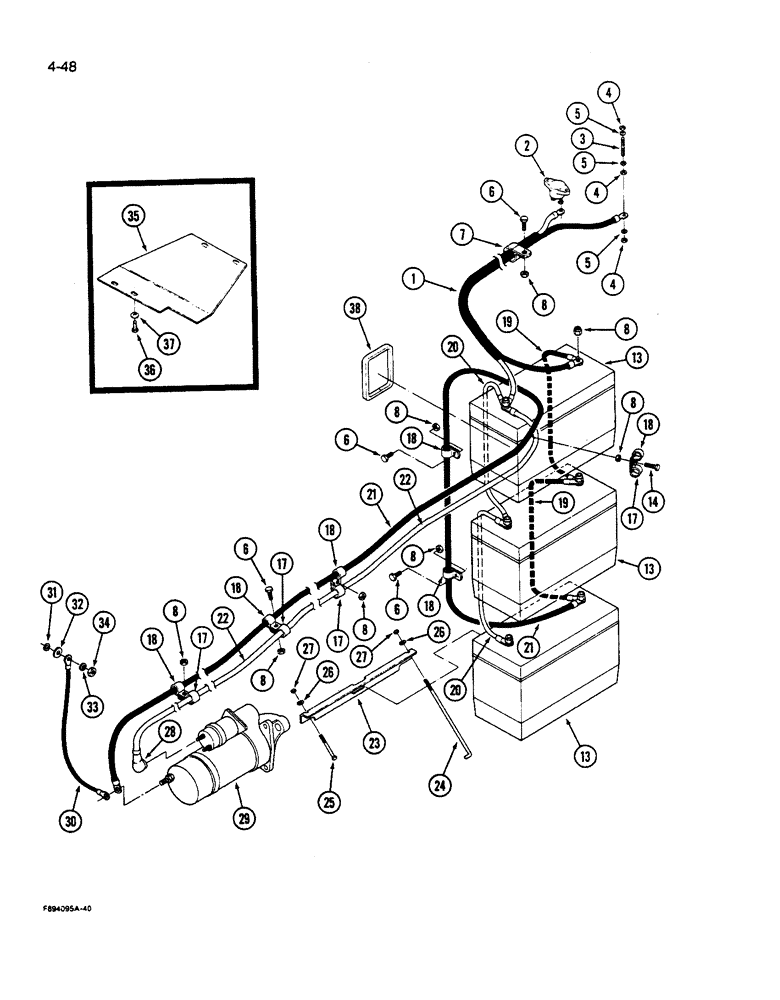

Схема запчастей Case IH 9280 - (4-048) - BATTERIES & CABLES (04) - ELECTRICAL SYSTEMS
26
17
28
4
13
17
33
26
31
36
5
17
38
32
8
7
24
20
18
21
34
37
25
21
18
4
18
14
4
23
13
17
18
8
6
20
29
27
5
8
2
27
22
8
18
6
8
1
3
8
35
8
30
8
5
19
18
22
6
13
6
19

Артикул

Название

Примечание

Количество

1

20-2458T1

HARNESS

- cab power

1шт.

2

20-2041T1

CIRCUIT-BREAKER

BREAKER - circuit

1шт.

3

60-1880T1

STUD

- ground

1шт.

4

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

4шт.

5

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

6

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

4шт.

7

31-1427

MOUNTING CLIP

CLAMP - P-type, retaining

1шт.

8

425-106

NUT,3/8"-16, Cl 5

12шт.

13

BMF31FS

DRY BATTERY

BATTERY - tractor, 12 volt

3шт.

14

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

17

T50104

CLAMP

- P-type, retaining

4шт.

18

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

P-type, Retaining 7/8", Insul, 3/8" Bolt

6шт.

19

20-2459T1

CABLE

- battery

2шт.

20

20-2094T2

CABLE

- battery

2шт.

21

60-6790T1

CABLE

- battery, used, Start Serial: JCB0028400

1шт.

21

20-2456T1

CABLE

- battery, shown, used, Serial Range: -JCB0028400

1шт.

22

20-2457T1

CABLE

- battery

1шт.

23

70-5548T1

ANGLE BAR

BRACKET - angle

3шт.

24

1-1946

TRUSS ROD

ROD - battery retaining

3шт.

25

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch

3шт.

26

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch

6шт.

27

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

9шт.

28

20-2424T1

BOOT

- cable end

1шт.

29

REF

INSTRUCTION

STARTER - engine, parts lists Figures 4-50 - 4-52D

1шт.

30

60-6785T1

CABLE

- starter, ground, used, Start Serial: JCB0028400

1шт.

30

22-33

CABLE

- starter, ground, shown, Serial Range: -JCB0028400

1шт.

31

493-41065

LOCK WASHER,Ext Tooth, 5/8"

WASHER - external tooth lock, 5/8 inch

1шт.

32

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.

33

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

34

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

35

60-4661T1

COVER

- cab power supply

1шт.

36

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- hex, 1/4 NC x 3/4 inch, grade 8

4шт.

37

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

4шт.

38

NSS

NOT SOLD SEPARAT

TRIM - edge, cut from 31-1785 bulk trim, see below

1шт.

31-1785

GROMMET

TRIM - edge, bulk, 120 inch (3048 mm) long

1шт.

178149A1

SOLENOID SWITCH

KIT cover, battery

1шт.

Выбрано товаров: 36
