Запчасти Case IH 9280 (4-034) - FRONT HEADLIGHT HARNESS P.I.N. JCB0028400 & AFTER (04) - ELECTRICAL SYSTEMS

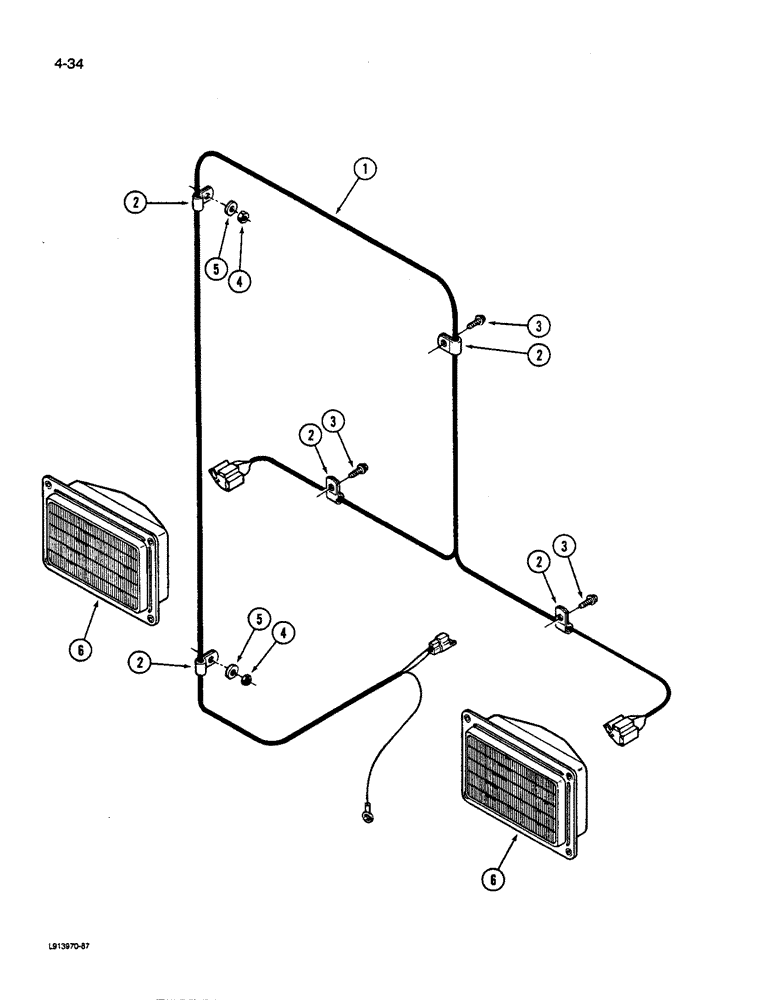

Схема запчастей Case IH 9280 - (4-034) - FRONT HEADLIGHT HARNESS P.I.N. JCB0028400 & AFTER (04) - ELECTRICAL SYSTEMS
4
3
2
2
2
2
1
5
5
4
3
6
6
3
2

Артикул

Название

Примечание

Количество

1

60-6783T1

HARNESS

ASSEMBLY - headlamp

1шт.

2

155850H1

CLAMP,3/8", 1/4" Bolt

- retaining, tube

5шт.

3

281-14712

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

BOLT - hex flange, 1/4 NC x 3/4 inch

3шт.

4

425-106

NUT,3/8"-16, Cl 5

3шт.

5

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

3шт.

6

20-2022T1

HARNESS

LAMP ASSEMBLY - head (See Figure 4-62)

2шт.

Выбрано товаров: 6
