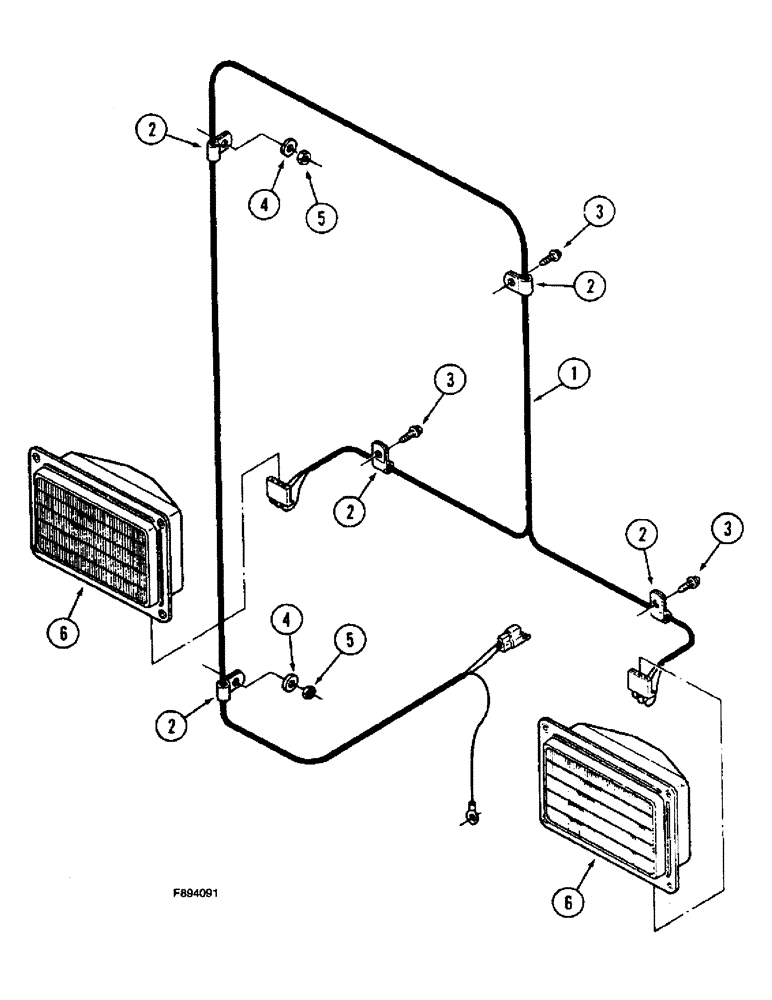

Запчасти Case IH 9280 (4-032) - FRONT HEADLIGHT HARNESS PRIOR TO P.I.N. JCB0028400 (04) - ELECTRICAL SYSTEMS

1

20-2022T1

HARNESS

ASSEMBLY - headlamp

1шт.

2

155850H1

CLAMP,3/8", 1/4" Bolt

- retaining

6шт.

3

281-13712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - flanged tap, 1/4 NC x 3/4 inch

3шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

5

425-106

NUT,3/8"-16, Cl 5

2шт.

6

20-2063T1

HEADLIGHT

LAMP ASSEMBLY - head (See Figure 4-60)

2шт.
