Запчасти Case IH 9280 (4-031A) - TRANSMISSION HARNESS SYNCHROMESH & SYNCHROSHIFT TRANSMISSION P.I.N. JEE0033501 & AFTER (04) - ELECTRICAL SYSTEMS

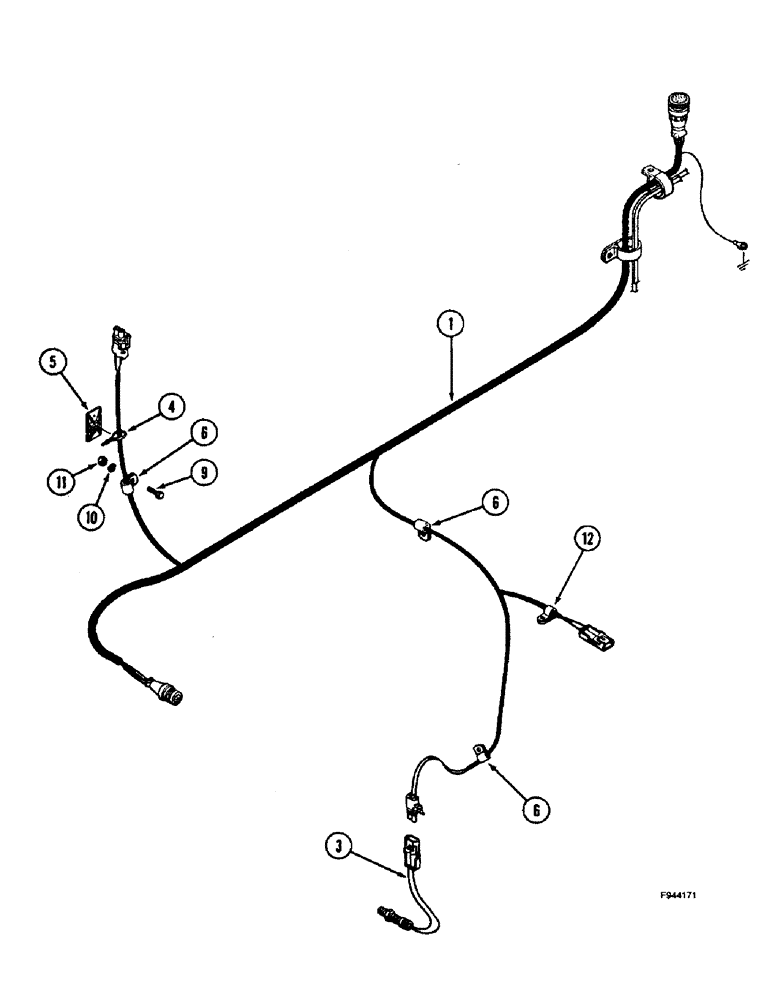

Схема запчастей Case IH 9280 - (4-031A) - TRANSMISSION HARNESS SYNCHROMESH & SYNCHROSHIFT TRANSMISSION P.I.N. JEE0033501 & AFTER (04) - ELECTRICAL SYSTEMS
6
1
9
3
6
5
10
11
12
6
4

Артикул

Название

Примечание

Количество

1

60-7074T1

HARNESS

- transmission, includes clamps

1шт.

3

60-6085T1

SENSOR

- magnetic, MPH

1шт.

4

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch long

1шт.

5

22-823

MOUNT

MOUNT - adhesive back, strap

1шт.

6

155850H1

CLAMP,3/8", 1/4" Bolt

- P-type

4шт.

9

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8

1шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

11

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

12

515-2563

CLAMP,1/4", Insul, 1/2" Bolt

P-type, Harness 1/4", Insul, 1/2" Bolt

1шт.

Выбрано товаров: 9
