Запчасти Case IH 9280 (4-002) - LOWER CAB HARNESS SYNCHROSHIFT TRACTOR (04) - ELECTRICAL SYSTEMS

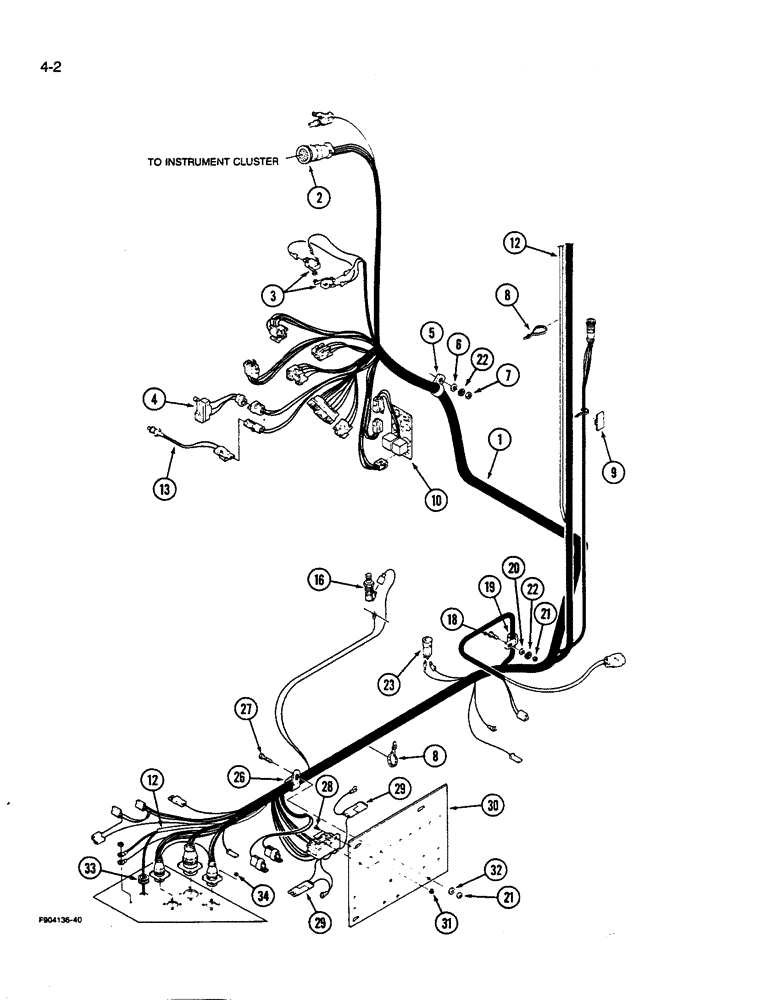

Схема запчастей Case IH 9280 - (4-002) - LOWER CAB HARNESS SYNCHROSHIFT TRACTOR (04) - ELECTRICAL SYSTEMS

Артикул

Название

Примечание

Количество

1

60-6724T2

HARNESS

ASSEMBLY - cab main, Includes: Ref. 2, Start Serial: JCB0028400

1шт.

1

60-6553T2

HARNESS

ASSEMBLY - main, cab (Shown), Includes: Ref. 2, Serial Range: -JCB0028400

1шт.

2

1301191C1

CONNECTION

RING - lock, connector

1шт.

3

20-1976T1

IGNITION SWITCH

SWITCH - micro, fan or compressor clutch (See Figure 9-94)

2шт.

4

20-2333T1

SWITCH

- micro, clutch (See Figure 6-70)

1шт.

5

308576R1

CLAMP

- retaining

1шт.

6

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

7

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.

8

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

9

22-823

MOUNT

MOUNT - strap, adhesive backed

1шт.

10

REF

INSTRUCTION

FLASHER ASSEMBLY - time base (See Figure 4-88)

1шт.

12

60-6300T1

HARNESS

ASSEMBLY - overhead power, Serial Range: -JCB0028400

1шт.

12

60-6807T1

HARNESS

ASSEMBLY - overhead power, Start Serial: JCB0028400

1шт.

13

60-6027T1

SENSOR

ASSEMBLY - proximity (See Figure 6-70)

1шт.

16

245175C1

SWITCH

- park lock (See Figure 7-4)

1шт.

18

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- hex, 1/4 NC x 3/4 inch, grade 8

1шт.

19

T50104

CLAMP

- retaining

1шт.

20

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

21

280129

NUT,1/4"-20

NUT - hex lock, 1/4 inch NC

2шт.

22

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

23

245576C1

LIGHTER, CIGARETTE

LIGHTER ASSEMBLY - cigar, 12 volt

1шт.

26

31-1349

MOUNTING CLIP

CLAMP - retainer

1шт.

27

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

- hex, 1/4 NC x 1 inch

1шт.

28

459-1108

SCREW,Slotted Pan Hd, #10-32 x 1/2"

- pan head machine, No. 10 NF x 1/2 inch

2шт.

29

22-738

DIODE

- electrical

4шт.

30

REF

INSTRUCTION

PLATE - mounting, relay (See Figure 4-18)

1шт.

31

19-481

SERRATED NUT

- hex keps, No. 10 NF

2шт.

32

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch

1шт.

33

22-766

GROMMET

- protective

1шт.

34

19-5564

LOCK NUT,#6-32, GB

NUT - hex lock, No. 6 NC

12шт.

Выбрано товаров: 30
