Запчасти Case IH 9280 (3-008) - THROTTLE CONTROLS ROPS MODELS ONLY (03) - FUEL SYSTEM

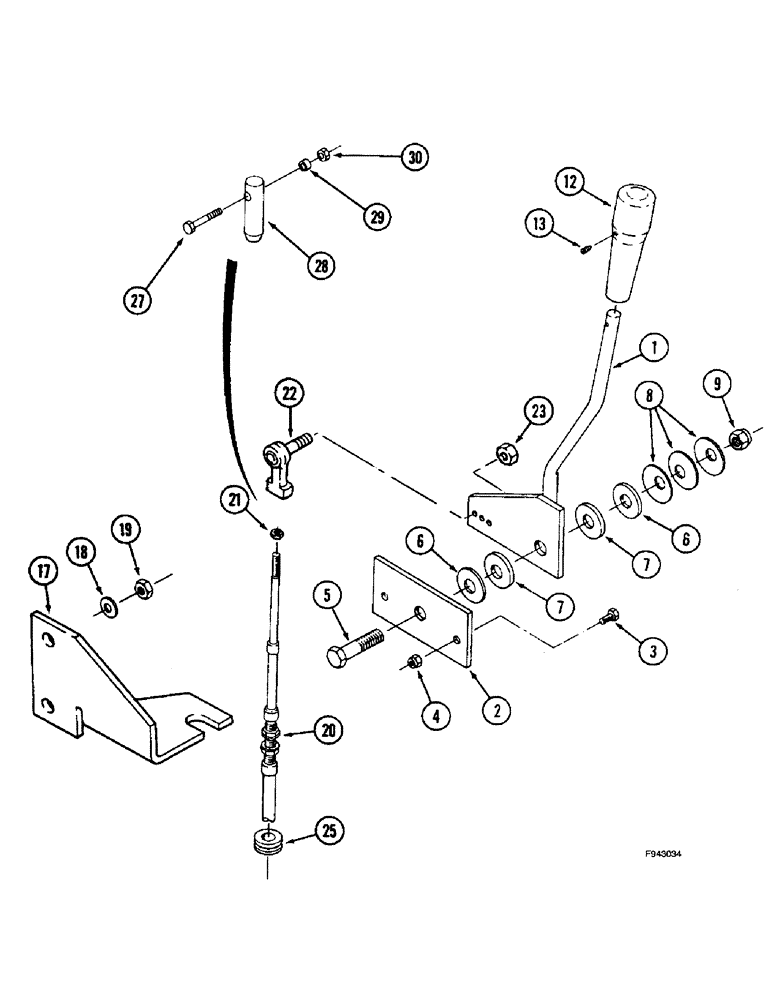

Схема запчастей Case IH 9280 - (3-008) - THROTTLE CONTROLS ROPS MODELS ONLY (03) - FUEL SYSTEM
29
6
7
7
12
6
9
19
1
3
28
17
25
20
22
13
21
18
4
2
23
27
8
5
30

Артикул

Название

Примечание

Количество

1

60-5850T1

LEVER ASSY.

LEVER - throttle control

1шт.

2

60-5851T1

LARGE PLATE

PLATE - mounting, throttle control

1шт.

3

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- hex, 1/4 NC x 3/4 inch, grade 8

2шт.

4

111626C1

NUT

- hex, self-locking, special, 1/4 inch NC

2шт.

5

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

- hex, 1/2 NC x 1-3/4 inch, grade 8

1шт.

6

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

2шт.

7

54-294

THRUST WASHER

- flat, 1/2 x 1-3/8 x 1/8 inch

2шт.

8

19-5648

SPRING WASHER

SPRING - Belleville, 1/2 inch

3шт.

9

19-653

LOCK NUT

- hex, self-locking, 1/2 inch NC

1шт.

12

60-2050T3

BALL KNOB

KNOB - control lever

1шт.

13

19-5798

SET SCREW

SCREW - set, No. 8 NC

1шт.

17

60-6532T1

SUPPORT

BRACKET - retaining, cable

1шт.

18

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

19

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

20

60-6424T1

CABLE

- throttle, Includes: Ref. 21

1шт.

21

225-14210

NUT,#10-32

1шт.

22

A75447

BALL JOINT

JOINT - ball, no longer available, order Ref. 27 - 30

1шт.

23

9411893

LOCK NUT,#10-32, GB

NUT - hex, self-locking, No. 10 NF, use with A75447 only

1шт.

25

22-609

GROMMET

cable

1шт.

27

163-55

SCREW,Hex, #10 - 24 x 1 1/4", Gr 5

- machine, hex, No. 10 NC x 1-1/4 inch

1шт.

28

H433283

BALL JOINT

JOINT - ball

1шт.

29

90-7749T1

SPACER

Throttle

1шт.

30

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

1шт.

Выбрано товаров: 23
