Запчасти Case IH 9280 (3-006) - THROTTLE & DECELERATOR CONTROLS CAB MODELS ONLY (03) - FUEL SYSTEM

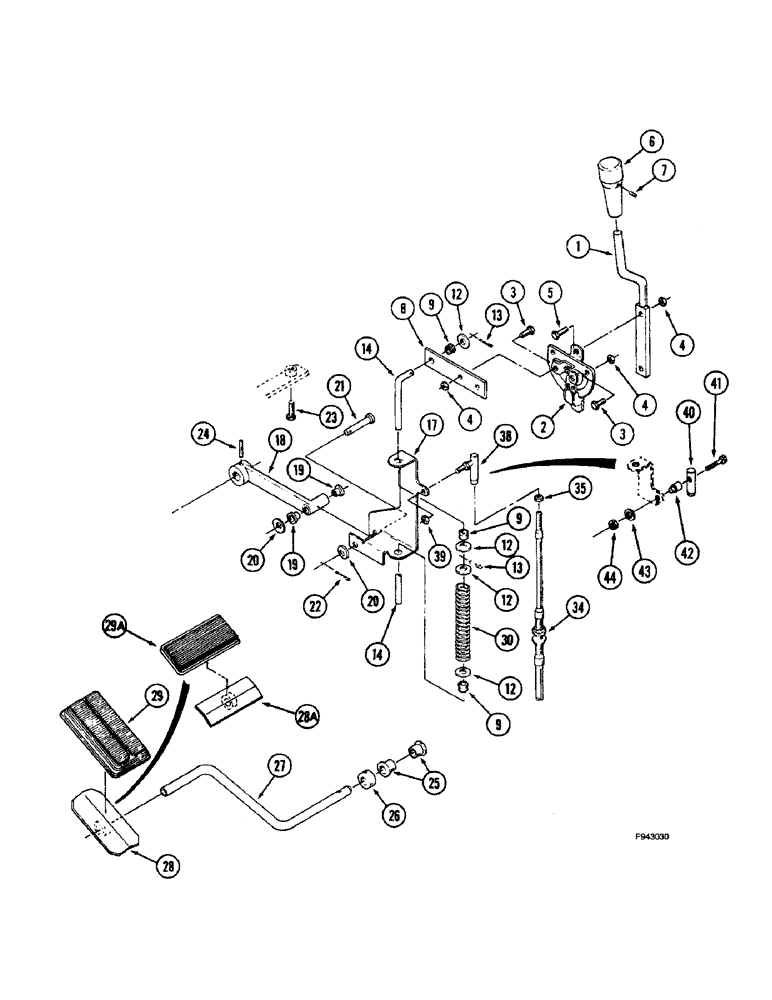

Схема запчастей Case IH 9280 - (3-006) - THROTTLE & DECELERATOR CONTROLS CAB MODELS ONLY (03) - FUEL SYSTEM
19
8
3
23
39
14
20
40
29
41
38
30
7
4
14
34
13
6
29a
9
12
4
25
18
2
24
42
12
9
27
44
3
12
21
5
22
1
43
26
35
4
19
9
28
13
20
12
28a
17

Артикул

Название

Примечание

Количество

1

90-7644T1

LEVER

- throttle control (Replaces 60-4686T2)

1шт.

2

60-3783T1

ACTUATOR

BELLCRANK - throttle control

1шт.

3

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- hex, 1/4 NC x 3/4 inch, grade 8

4шт.

4

111626C1

NUT

- hex, self-locking, special, 1/4 inch NC

6шт.

5

426-416

BOLT,Hex, 1/4" - 20 x 1", Gr 8

2шт.

6

60-2050T3

BALL KNOB

KNOB - control lever

1шт.

7

19-5798

SET SCREW

SCREW - set, No. 8 NC

1шт.

8

60-3696T1

LINING

LEVER - bellcrank

1шт.

9

19-6113

NYLON BEARING,0.484" ID x 0.578" OD x 0.14"

BUSHING - nylon, split, flanged

3шт.

12

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

13

432-816

COTTER PIN,1/8" x 1"

1/8" x 1"

2шт.

14

60-6278T1

ROD

- actuating

1шт.

17

60-6277T1

SUPPORT

BRACKET - rod and spring retaining

1шт.

18

60-6276T1

LEVER

- decelerator

1шт.

19

60-1948T1

BUSHING,0.3135" ID x 0.5" OD x 0.312"

- flange

2шт.

20

19-5995

SPRING WASHER

- spring, 5/16 inch

2шт.

21

19-5664

CLEVIS PIN,5/16" x 2"

PIN - clevis, 5/16 x 2 inch

1шт.

22

32-610

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

1шт.

23

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

1шт.

24

138-2067

PIN,3/16" x 1", Coiled

1шт.

25

24-206

BEARING CONE,0.5" ID x 0.75" OD x 0.3"

BUSHING - flange

2шт.

26

19-490

COLLAR

- locking

1шт.

27

60-4926T1

STEM

ROD - pedal, decelerator

1шт.

28

60-3688T1

PEDAL

- decelerator, Serial Range: -JEE0033501

1шт.

28a

60-7066T1

PEDAL

- decelerator, Start Serial: JEE0033501

1шт.

29

24-13

PROTECTION STRIP

PAD - pedal, Serial Range: -JEE0033501

1шт.

29a

1958503C1

PROTECTIVE COVER

PAD - pedal, Start Serial: JEE0033501

1шт.

30

60-3702T1

SPRING

- compression

1шт.

34

60-6425T1

CABLE,3048mm L

- throttle, Includes: Ref. 35

1шт.

35

225-14210

NUT,#10-32

1шт.

38

A75447

BALL JOINT

JOINT - ball, no longer available, order Ref. 41 - 44

1шт.

39

9411893

LOCK NUT,#10-32, GB

NUT - hex, self-locking, No. 10 NF, use with A75447 only

1шт.

41

163-55

SCREW,Hex, #10 - 24 x 1 1/4", Gr 5

- machine, hex, No. 10 NC x 1-1/4 inch

1шт.

42

H433283

BALL JOINT

JOINT - ball

1шт.

43

90-7749T1

SPACER

Throttle

1шт.

44

86625057

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

1шт.

Выбрано товаров: 36
