Запчасти Case IH 9280 (3-004) - FUEL SENSOR ASSEMBLY (03) - FUEL SYSTEM

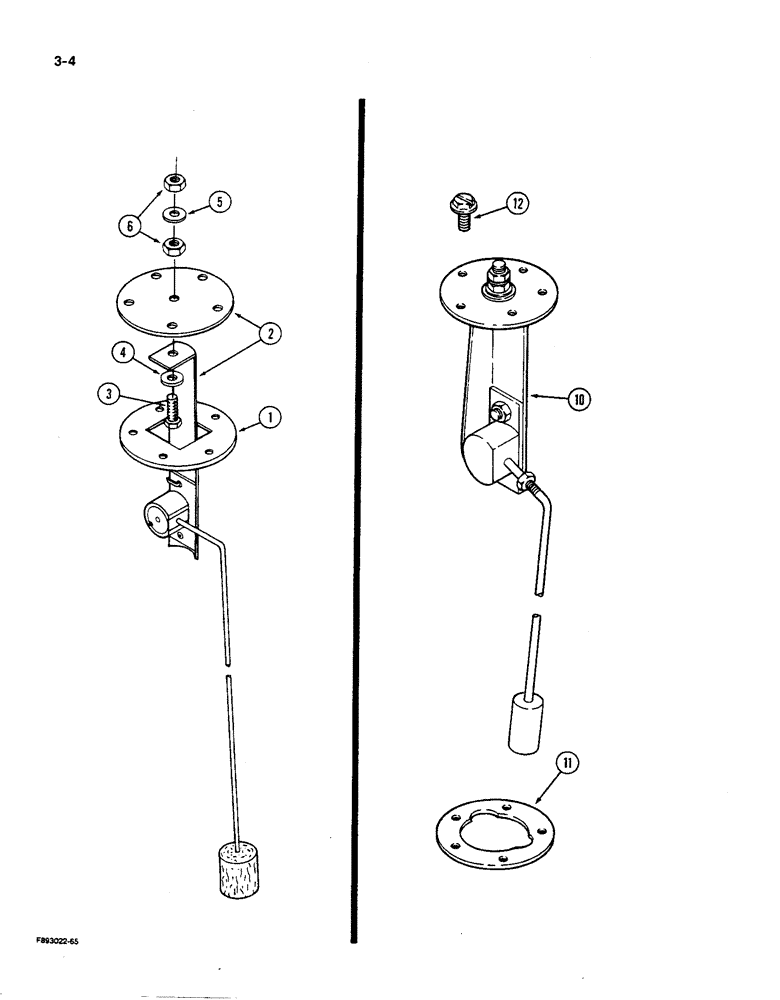

Схема запчастей Case IH 9280 - (3-004) - FUEL SENSOR ASSEMBLY (03) - FUEL SYSTEM
3
10
1
5
4
6
11
12
2

Артикул

Название

Примечание

Количество

60-6242T92

FUEL GAUGE

SENSOR ASSEMBLY - fuel, order 60-6831T91, sensor assembly, Ref. 10, Includes: Ref. 1 - 6

1шт.

1

60-6243T1

GASKET

- fuel sensor

1шт.

2

NSS

NOT SOLD SEPARAT

SENSOR - fuel

1шт.

3

60-6244T1

TERMINAL CONNECTOR

TERMINAL - fuel sensor

1шт.

4

60-6245T1

ISOLATOR

INSULATOR - terminal

1шт.

5

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

1шт.

6

225-14210

NUT,#10-32

2шт.

10

60-6831T91

SENDER UNIT

SENSOR - fuel

1шт.

11

104812C3

GASKET,3.05mm Thk

- fuel level sender

1шт.

12

463-3108

SCREW,Hex Wash Hd, #10-24 x 1/2"

- machine, hex washer head, No. 10 NC x 1/2 inch

5шт.

Выбрано товаров: 10
