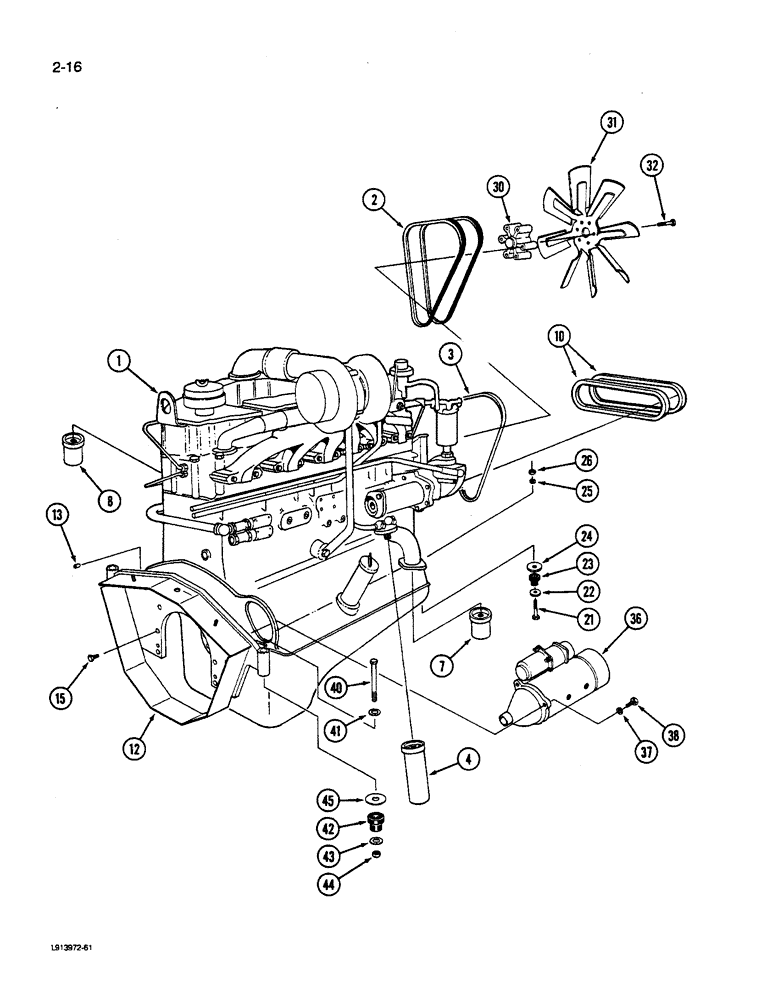

Запчасти Case IH 9280 (2-016) - ENGINE MOUNTS & ATTACHING PARTS (02) - ENGINE

1

NSS

NOT SOLD SEPARAT

ENGINE ASSEMBLY - NTA-855-A BC111, 335 horsepower (9270), Includes: Ref. 2 - 8

1шт.

1

NSS

NOT SOLD SEPARAT

ENGINE ASSEMBLY - NTA-855-A BC111, 375 horsepower (9280), Includes: Ref. 2 - 8

1шт.

2

2-4432T1

SET OF BELTS

2, V-Belt

1шт.

3

90-2383T1

BELT,43.60" L, 6 Ribs

V, Water pump 43.60" L, 6 Ribs

1шт.

4

90-7101T1

FILTER, ENGINE OIL

ELEMENT - filter, oil

1шт.

7

A77544

FILTER

- coolant conditioner, service

1шт.

8

90-3941T1

SEPARATOR

FILTER - fuel

1шт.

10

90-1375T1

SET OF BELTS,0.53" W x 45.92" L

V-Belt, Alternator (Set of 2) 0.53" W x 45.92" L

1шт.

12

90-7553T1

SUPPORT

HOUSING - flywheel (Replaces 90-7123T2)

1шт.

13

NSS

NOT SOLD SEPARAT

PIN - dowel, 9/16 x 1-1/8 inch (Serviced through Cummins)

2шт.

15

114-640

BOLT,Hex, 5/8" - 18 x 1-1/4", Gr 5

9шт.

21

426-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 8

- hex, 5/8 NC x 4 inch, Grade 8

2шт.

22

19-408

WASHER

- flat, 5/8 x 2-1/2 x 3/16 inch

2шт.

23

24-231

RUBBER MOUNTING

MOUNT - isolator, rubber front

2шт.

24

51-128

WASHER

- flat, 5/8 x 3-1/2 x 3/16 inch

2шт.

25

67872C1

WASHER

- flat, 21/32 x 1-1/4 x 1/4 inch

2шт.

26

232-4110

NUT - hex lock, 5/8 inch NC

2шт.

30

90-3569T1

SPACER

- fan

1шт.

31

90-4238T1

FAN

- engine

1шт.

32

326-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8

6шт.

36

REF

INSTRUCTION

STARTER ASSEMBLY - engine (See Figure 4-50)

1шт.

37

19-912

WASHER

- flat, 5/8 x 1-3/16 x 3/16 inch

3шт.

38

19-907

12 PT SCREW,Flg, 5/8" - 11 x 2", Gr 8

BOLT - 12 point, 5/8 NC x 2 inch, Grade 8

3шт.

40

426-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 8

- hex, 3/4 NC x 7-1/2 inch, grade 8

2шт.

41

496-11081

WASHER,13/16" x 1 1/2" x .134", HDN

Flat 13/16" x 1 1/2" x .134", HDN

2шт.

42

47-4172

SHOCK ABSORBER

MOUNT - rubber, isolator rear

2шт.

43

495-21081

WASHER,3/4"

- flat, 13/16 x 2 x 5/32 inch

2шт.

44

131-1252

LOCK NUT,7/8"-14, GC

NUT - hex lock, 3/4 inch NC

2шт.

45

19-6150

WASHER,19.84mm ID x 95.25mm OD x 4.78mm Thk

- flat, 25/32 x 3-3/4 x 3/16 inch

2шт.

A77424

FILLER CAP

CAP oil filler

1шт.
