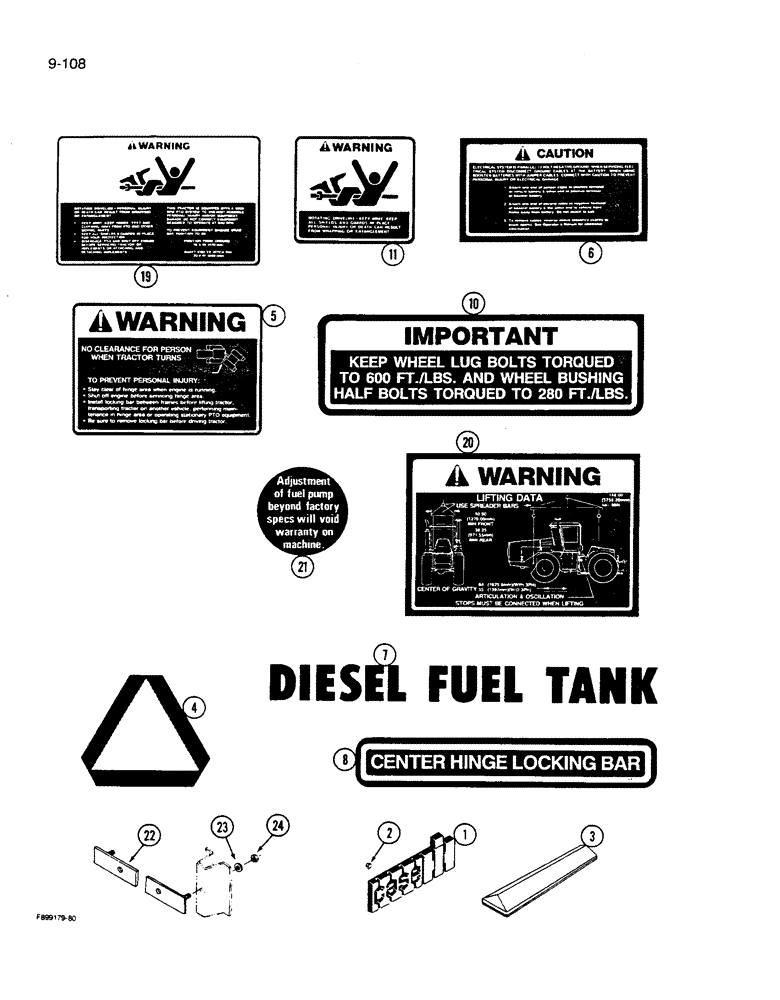

Запчасти Case IH 9280 (9-108) - DECALS (09) - CHASSIS/ATTACHMENTS

1

A181900

EMBLEM

- Case IH

1шт.

1

A181538

EMBLEM CASE/IH

EMBLEM - overhead console, adhesive backed

1шт.

2

131-431

PUSH-ON NUT,Self, Threading, 1/4"

NUT - emblem retaining

2шт.

3

1968108C1

INDICATOR STRIP

TRIM - hood sight

1шт.

4

321-4311

DECAL

- SMV emblem adhesive backed

1шт.

4

26-1

TRAFFIC SIGN

DECAL - slow moving vehicle, metal plate backed

1шт.

19-1061

SELF-TAP SCREW,Flg, 1/4" x 3/8"

SCREW - flange tap, 1/4 NC x 3/8 inch (Decal to mounting bracket, not shown)

2шт.

5

2-6876T1

DECAL

- Warning, center hinge

1шт.

6

2-6875T1

DECAL

- Caution, booster battery

1шт.

7

26-242T1

DECAL

- diesel fuel tank

1шт.

8

2-6874T1

DECAL

- locking bar, center hinge

1шт.

10

2-7215T2

ADHESIVE

DECAL - Important, wheel bolts

1шт.

11

2-7126T1

DECAL

- Warning, drive shaft

1шт.

19

2-7125T1

DECAL

- Warning, PTO drive shaft

1шт.

20

2-6935T1

DECAL

- Warning, lifting data

1шт.

21

A189007

DECAL

- warranty, adjustment of fuel pump

1шт.

22

60-5969T1

LARGE PLATE

PLATE - mounting, medallion

1шт.

23

495-31025

WASHER,3/16"

- flat, 1/4 x 9/16 x 1/16 inch

2шт.

24

19-5563

LOCK NUT

- hex lock, No. 10 NC

2шт.
