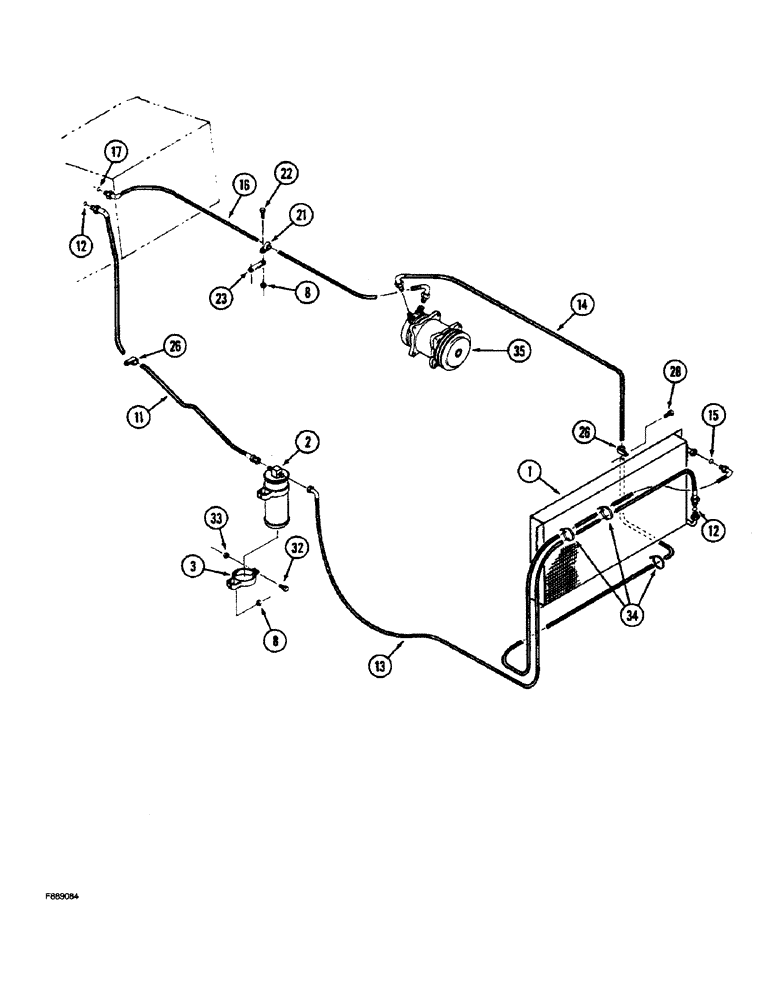

Запчасти Case IH 9280 (9-100) - CAB AIR CONDITIONING PLUMBING CONDENSER & RECEIVER-DRIER PRIOR TO P.I.N. JEE0031850 (09) - CHASSIS/ATTACHMENTS

1

60-6711T1

CONDENSER

- air conditioning, Serial Range: JCB0028400-JEE0031849

1шт.

1

60-4335T2

CONDENSER

- air conditioning, Serial Range: -JCB0028400

1шт.

2

60-5818T3

CONDENSER

RECEIVER-DRIER - air conditioning

1шт.

3

1-8563

CLAMP BRACKET

BRACKET - mounting, receiver-drier

2шт.

8

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

3шт.

11

31-2751

HOSE,7.94mm ID x 1981.2mm L

78 inch (1981 mm) long, receiver-drier to thermal expansion

1шт.

12

31-1807

O-RING

O-RING, 5/16 ID x 1/16 inch wide

2шт.

13

31-2575

HOSE,7.94mm ID x 2641.6mm L

104 inch (2642 mm) long, Serial Range: condenser-receiver-drier

1шт.

14

31-1892

HOSE,10.41mm ID x 3352.8mm L

132 inch (3353 mm) long, discharge, Serial Range: compressor-condenser

1шт.

15

31-1808

O-RING

O-RING, 7/16 ID x 1/16 inch wide, hose

1шт.

16

31-2746

HOSE,15.88mm ID x 1778mm L

- suction

1шт.

17

31-1809

O-RING

9/16 ID x 1/16 inch wide, hose, 9/16 x 11/16 inch

1шт.

21

515-23270

CLAMP,1 1/16", Insul, 3/8" Bolt

- P-type, 1-1/16 inch ID, retaining

1шт.

22

426-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8

1шт.

23

60-5816T1

SUPPORT

BRACKET - mounting, clamp

1шт.

26

31-1776

MOUNTING CLIP

CLAMP - P-type, hose

2шт.

28

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

1шт.

32

426-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 8

- hex, 1/4 NC x 1-1/2 inch, grade 8

2шт.

33

232-4114

LOCK NUT,1/4"-20, GC

NUT, LOCK, 1/4"-20, GC

2шт.

34

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch long

3шт.

35

REF

INSTRUCTION

COMPRESSOR - air conditioning, parts list Figure 9-104

1шт.
