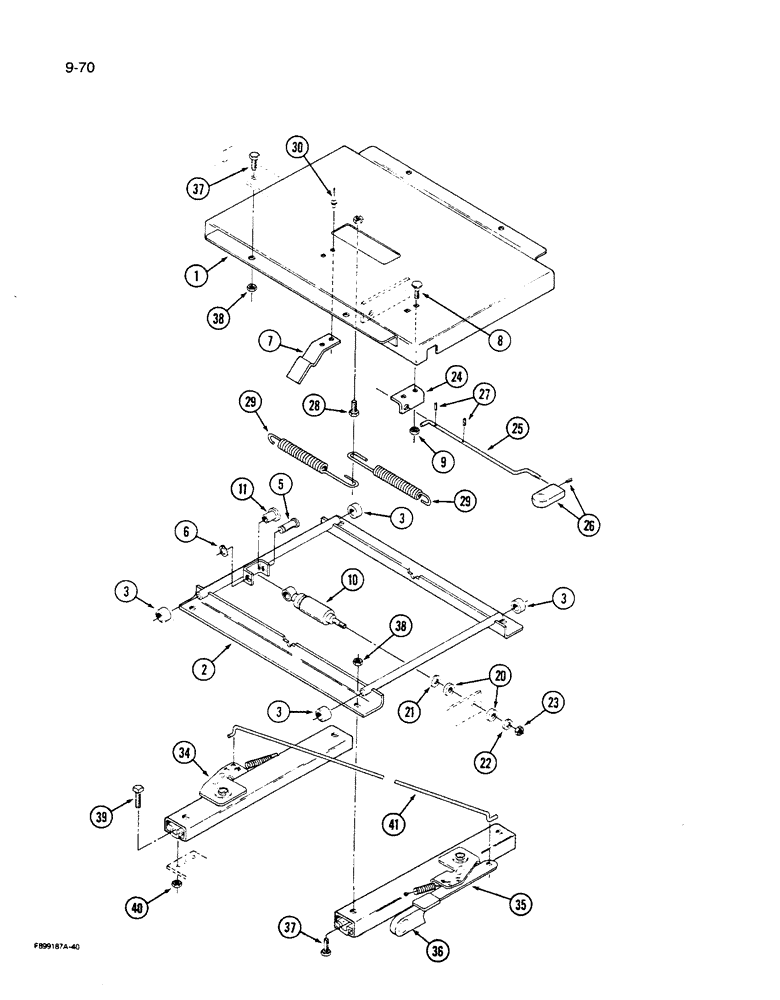

Запчасти Case IH 9280 (9-070) - CLOTH SEAT AIR RIDE SUSPENSION SEAT SWIVEL ASSEMBLY (09) - CHASSIS/ATTACHMENTS

1987159C2

SEAT ASSY.

SEAT ASSEMBLY - air ride suspension (Continued), Includes: Ref. 1 - 41

1шт.

1344001C1

SET OF PARTS

ISOLATOR ASSEMBLY - suspension (with lateral adjustment), Includes: Ref. 1 - 41

1шт.

1

1344023C1

SIDE PLATE

PLATE - lateral, isolator track

1шт.

2

1344024C1

SUPPORT

- lateral, isolator track

1шт.

3

135512A3

PACKAGE

ROLLER - suspension (Replaces NSS)

4шт.

5

1344025C1

PIVOT PIN

PIN - shock absorber

1шт.

6

A27804

CIRCLIP,#50, .392" Dia, E-Type

Ring, Retaining, #50, .392" Dia, E-Type

1шт.

7

1344026C1

SPRING

- latch

1шт.

8

111-255

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G5

2шт.

9

131-1353

LOCK NUT,5/16"-18, GA

NUT, LOCK, 5/16"-18, GA

2шт.

1987219C1

SET OF PARTS

SHOCK ASSEMBLY - left and right, Includes: Ref. 10, 11 and 20

1шт.

10

NSS

NOT SOLD SEPARAT

SHOCK ABSORBER - suspension

1шт.

11

NSS

NOT SOLD SEPARAT

BUSHING - shock absorber

1шт.

20

A49679

BUSHING

- shock absorber

2шт.

21

A49678

WASHER

- flat, 1 inch

1шт.

22

1974732C1

WASHER

- flat

1шт.

23

131-1169

LOCK NUT,5/16"-24, GA

NUT, LOCK, 5/16"-24, GA

1шт.

24

1344027C1

ANGLE BAR

MOUNT - latch, lateral isolator

1шт.

25

1344029C1

ROD

- latch

1шт.

26

1344031C1

GRIP

KNOB - lateral isolator

1шт.

27

138-2057

PIN,5/32" x 5/8", Coiled

2шт.

28

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

1987290C1

SET OF PARTS

SPRING KIT - isolator, Includes: Ref. 29 and 30

1шт.

29

NSS

NOT SOLD SEPARAT

SPRING - isolator

2шт.

30

NSS

NOT SOLD SEPARAT

RIVET - latch spring

2шт.

34

1981823C1

SLIDE

- seat, right

1шт.

Not included in the kits above.

1шт.

35

1981822C1

SLIDE

- seat, left (with handle)

1шт.

Not included in the kits above.

1шт.

36

1981829C1

WINDOW STAY

KNOB - seat slide

1шт.

Not included in the kits above.

1шт.

37

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

8шт.

38

131-1353

LOCK NUT,5/16"-18, GA

NUT, LOCK, 5/16"-18, GA

8шт.

39

117-101

BOLT

BOLT - square head, 5/16 NC x 3/4 inch

4шт.

40

131-351

LOCK NUT,5/16"-18, GA

NUT - hex lock, 5/16 inch NC

4шт.

41

1981825C1

ELECTRICAL WIRE

WIRE - slide

1шт.
