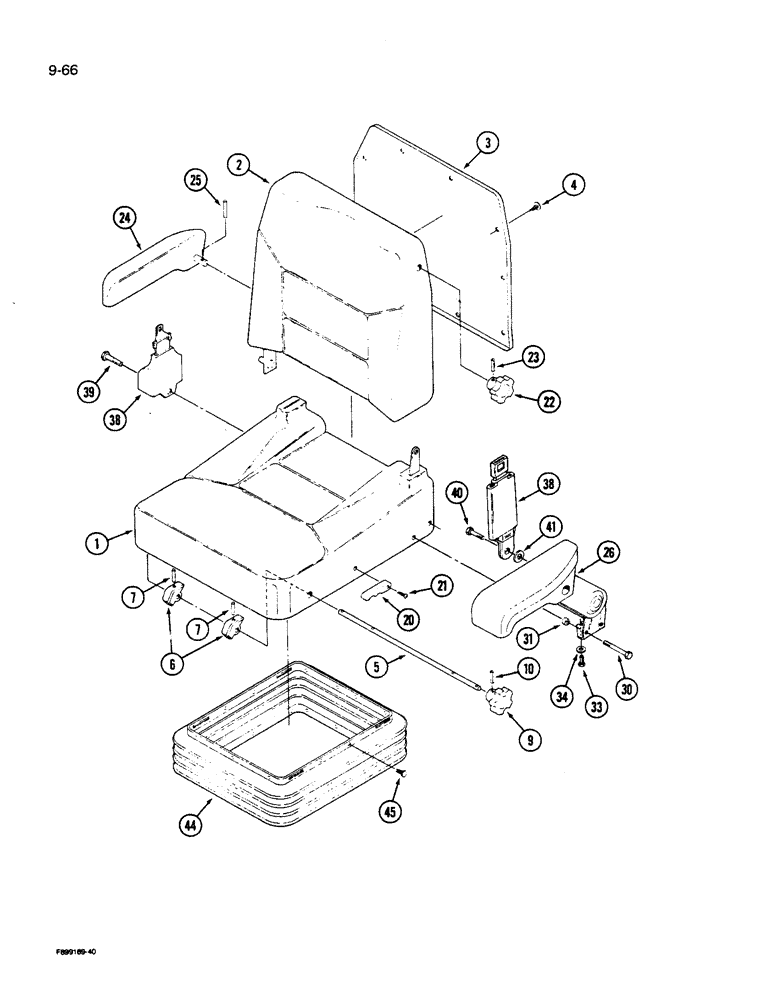

Запчасти Case IH 9280 (9-066) - CLOTH SEAT AIR RIDE SUSPENSION (09) - CHASSIS/ATTACHMENTS

1987159C2

SEAT ASSY.

SEAT ASSEMBLY - air ride suspension, Includes: Ref. 1 - 45

1шт.

1344004C2

PACKAGE

SEAT AND BACKREST KIT - air ride seat, Includes: Ref. 1 - 45

1шт.

1

NSS

NOT SOLD SEPARAT

CUSHION ASSEMBLY - seat (Order 1974701C1), Includes cushion kit, pad, and ring

1шт.

1974701C1

SET OF PARTS

CUSHION KIT - seat service, Includes pad and ring

1шт.

NSS

NOT SOLD SEPARAT

PAD - seat

1шт.

NSS

NOT SOLD SEPARAT

RING - hog

48шт.

2

NSS

NOT SOLD SEPARAT

CUSHION ASSEMBLY - backrest (Order 1974702C1), Includes cushion kit, pad and ring

1шт.

1974702C1

SET OF PARTS

CUSHION KIT - backrest service, Includes pad and ring

1шт.

1974702C2-is w/o inside frame. If looking for back cushion w/frame use 132886A1

1шт.

NSS

NOT SOLD SEPARAT

PAD - seat

1шт.

NSS

NOT SOLD SEPARAT

RING - hog

44шт.

3

1974713C1

PACKAGE

COVER - seat backrest, Includes: Ref. 4

1шт.

4

1974722C1

CLIP,ELECTRICAL

CLIP - retaining

10шт.

5

1343847C1

SHAFT ASSY.

SHAFT ASSEMBLY - seat tilt, Includes: Ref. 6 and 7

1шт.

6

1343828C1

CAM

- seat tilt

2шт.

7

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

2шт.

9

1981826C1

KNOB

- seat tilt

1шт.

10

138-85

LOCK PIN,5/32" x 2", Slotted

PIN, 5/32" x 2", Slotted

1шт.

20

1987212C1

PACKAGE

KNOB - backrest tilt

1шт.

21

30299R1

SCREW,Cross Oval Hd, M6 x 12

- oval head machine, 6 x 12 mm

1шт.

22

1981828C1

BUTTON

KNOB - lumbar control

1шт.

23

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

24

1974703C2

ARMREST ASSY.

ARMREST KIT - seat, right, Includes: Ref. 25

1шт.

25

NSS

NOT SOLD SEPARAT

PIN - drive

1шт.

26

1344182C1

SET OF PARTS

ARMREST KIT - left, with actuating arm and armrest pad

1шт.

26

1974704C1

ARMREST

KIT - seat, left, armrest pad only

1шт.

30

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

- hex, 5/16 NC x 2-3/4 inch

2шт.

31

1343875C1

SPACER

- 25/64 ID x 1/2 inch

2шт.

33

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

34

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

38

1344158C1

SET

BELT ASSEMBLY - seat

1шт.

(P/N 1344158C1) - both sides included

1шт.

39

328-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 8

1шт.

40

328-716

BOLT,Hex, 7/16" - 20 x 1", Gr 8

1шт.

41

1974732C1

WASHER

- flat, 25/64 x 1-1/8 x 1/8 inch

1шт.

44

1990647C1

PACKAGE

BOOT KIT - suspension, Includes: Ref. 45 and pin kit

1шт.

45

NSS

NOT SOLD SEPARAT

PIN - seat boot (Order 700709502, package of 25 pins)

22шт.

700709502

FASTENER

PIN KIT - seat boot (Package of 25)

1шт.
