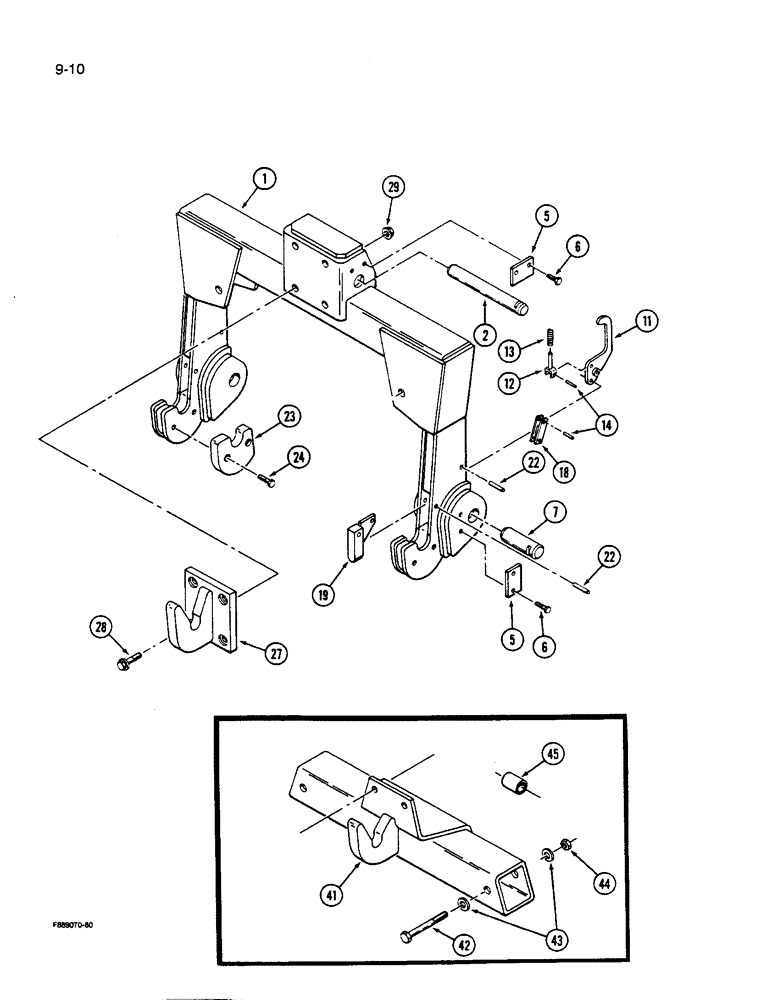

Запчасти Case IH 9280 (9-010) - QUICK HITCH COUPLER CATEGORY IVN (09) - CHASSIS/ATTACHMENTS

35-1470T91

FAST HITCH

COUPLER KIT - quick hitch, Category IVN (Machinery Item), Includes: Ref. 1 - 29

1шт.

1

70-1919T2

HITCH ASSY, TRAILER

HITCH - quick attachment

1шт.

2

70-1895T1

PIN

- hitch, upper

1шт.

5

70-3082T2

LARGE PLATE

BLOCK - pin retaining

3шт.

6

19-1108

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, Grade 8

6шт.

7

70-1894T1

PIN

- hitch, lower

2шт.

11

70-1880T1

LATCH

HANDLE - hitch release

2шт.

12

70-1884T1

PITMAN

LINK - spring return

2шт.

13

2-4345T1

SPRING

- return, handle

2шт.

14

9416325

LOCK PIN,5/16" x 1 1/8", Slotted

Pin, 5/16" x 1 1/8", Slotted

6шт.

18

70-1887T1

PITMAN

LINKAGE - connecting, Serial Range: handle-catch

2шт.

19

70-1890T2

STOP

CATCH - hitch release

2шт.

22

19998R1

PIN,1/2" x 2 1/2", Coiled

4шт.

23

70-1920T1

CAP

- spacer, right (Category IVN only)

1шт.

23

70-1921T1

CAP

- spacer, left (Category IVN only)

1шт.

24

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

27

70-1869T1

HOOK

- quick attachment, Category IVN

1шт.

28

19-5787

BOLT,Hex, 3/4" - 10 x 2 1/2", Gr 8

- hex flange, 3/4 NC x 2-1/2 inch, Grade 8

4шт.

29

19-5727

NUT,Flg, 3/4"-10, G8

- hex flange lock, 3/4 inch NC

4шт.

35-1376T91

HOOK

CONVERSION KIT - Category IVN to Category III (Machinery Item), Includes: Ref. 41 - 45

1шт.

41

70-1913T1

HOOK

- quick attachment, Category III conversion kit

1шт.

42

26-16120

BOLT,Hex, 1" - 8 x 7-1/2", Gr 8

- hex, 1 NC x 7-1/2 inch, Grade 8, catergory III conversionkit

2шт.

43

19-5739

WASHER

- flat, 1 x 2 x 5/32 inch, category III conversion kit

4шт.

44

19-610

NUT,1"-8, G5

- hex, 1 inch NC, catergory III converstion kit

2шт.

45

2-5306T1

SPACER

- conversion, Category III kit

2шт.
