Запчасти Case IH 9280 (2-006) - AIR INDUCTION SYSTEM (02) - ENGINE

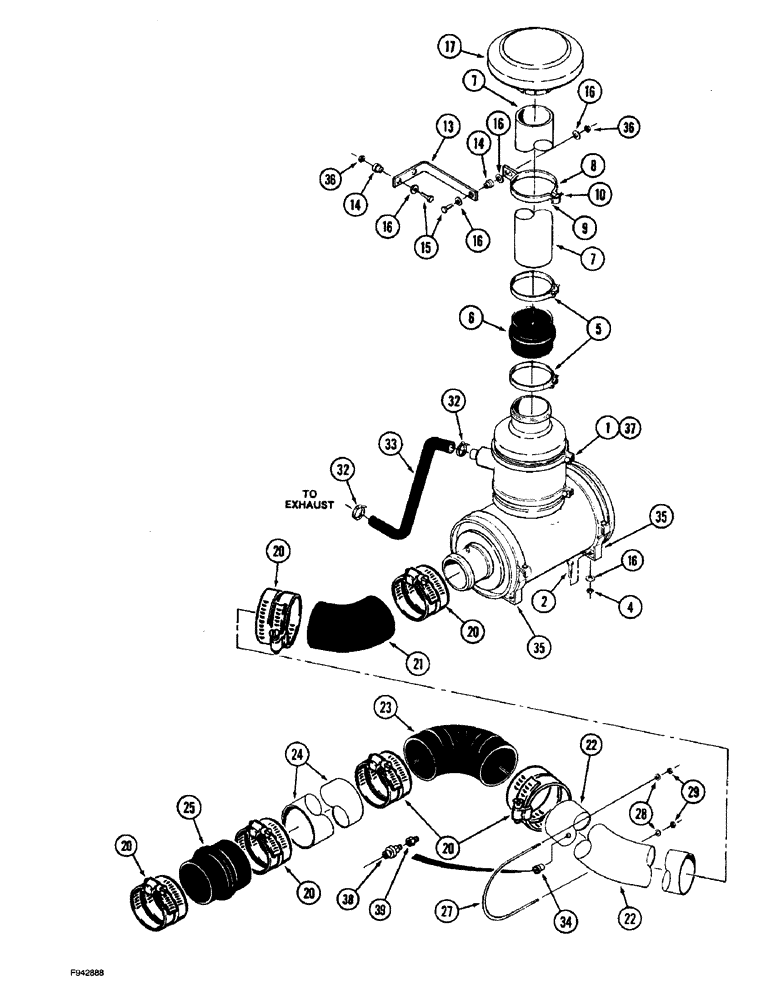

Схема запчастей Case IH 9280 - (2-006) - AIR INDUCTION SYSTEM (02) - ENGINE
20
36
20
13
8
37
6
1
25
22
20
27
16
16
32
15
29
35
16
24
28
14
36
21
39
5
20
38
2
32
10
23
22
35
4
14
20
7
16
7
33
9
17
16
34

Артикул

Название

Примечание

Количество

1

90-4206T91

AIR CLEANER

ASSEMBLY - engine, parts list Figure 2-8, Serial Range: -JEE0033501

1шт.

2

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

4шт.

3

492-11038

LOCK WASHER,3/8"

4шт.

4

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

4шт.

5

214-32120

HOSE CLAMP,6-3/4" - 7-5/8", HD Worm, W/ Liner

CLAMP - adj, 6-3/4 - 7-5/8 inch dia

2шт.

6

9-73

HOSE

- coupling, 7 inch ID

1шт.

7

90-3869T1

TUBE,7 mm OD x 44 mm L

- air inlet

1шт.

8

60-2764T1

MOUNTING CLIP

CLAMP, support

1шт.

9

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

1шт.

10

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

13

90-6870T1

SUPPORT

BRACKET - support, air inlet tube

1шт.

14

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR - rubber, brace, replaces 196504C1 bushing

3шт.

15

426-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

- hex, 3/8 NC x 1-3/4 inch, grade 8

3шт.

16

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

5шт.

17

9-120

CAP ASSY.

CAP - air inlet, see page 2-9

1шт.

20

214-32104

HOSE CLAMP,5-3/4" - 6-5/8", HD Worm, W/ Liner

CLAMP - adj, 5-3/4 - 6-5/8 inch dia

6шт.

21

90-6892T1

ELBOW

- 70 degree

1шт.

22

90-6991T2

AIR INTAKE TUBE,6 mm OD x 41.94, 9.51 mm L

TUBE - air intake

1шт.

23

9-22

ELBOW

- 90 degree

1шт.

24

90-6895T1

AIR INTAKE TUBE,6" OD x 15.25" L

TUBE - air intake, 15-1/4 inch (387) long

1шт.

24

90-7348T1

AIR INTAKE TUBE,6" OD x 18" L

TUBE - air intake, 18 inch (457) long

1шт.

25

9-76

HOSE,6.00" ID x 6.00"

Coupling 6.00" ID x 6.00"

1шт.

27

44-13T1

U-BOLT,5/16" - 18 x 7.29", Class 8.8

tube mounting

1шт.

28

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

29

231-1445

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

2шт.

32

27725R1

HOSE CLAMP,#36, 1.81/2.75 Type F Worm, W/liner

CLAMP - adj, 1-3/32 - 2-3/4 inch dia

2шт.

33

90-3979T1

HOSE,2.00" ID

Aspirator, Air Cleaner to Exhaust 2.00" ID

1шт.

34

A172784

RESTRICTION SWITCH

SWITCH - air restriction, Serial Range: -JEE0033501

1шт.

35

90-3871T1

CLIP

CLAMP - air cleaner

2шт.

36

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex, self-locking, 3/8 inch NC

3шт.

37

90-7779T91

AIR CLEANER

ASSEMBLY - engine, includes precleaner and mounting parts, parts list Figure 2-9A, Start Serial: JEE0033501

1шт.

38

221-1335

COUPLING,Pipe, 1/8" NPT

, Start Serial: JEE0033501

1шт.

39

1983233C1

RESTRICTION SWITCH

SWITCH - air restriction, Start Serial: JEE0033501

1шт.

Выбрано товаров: 33
