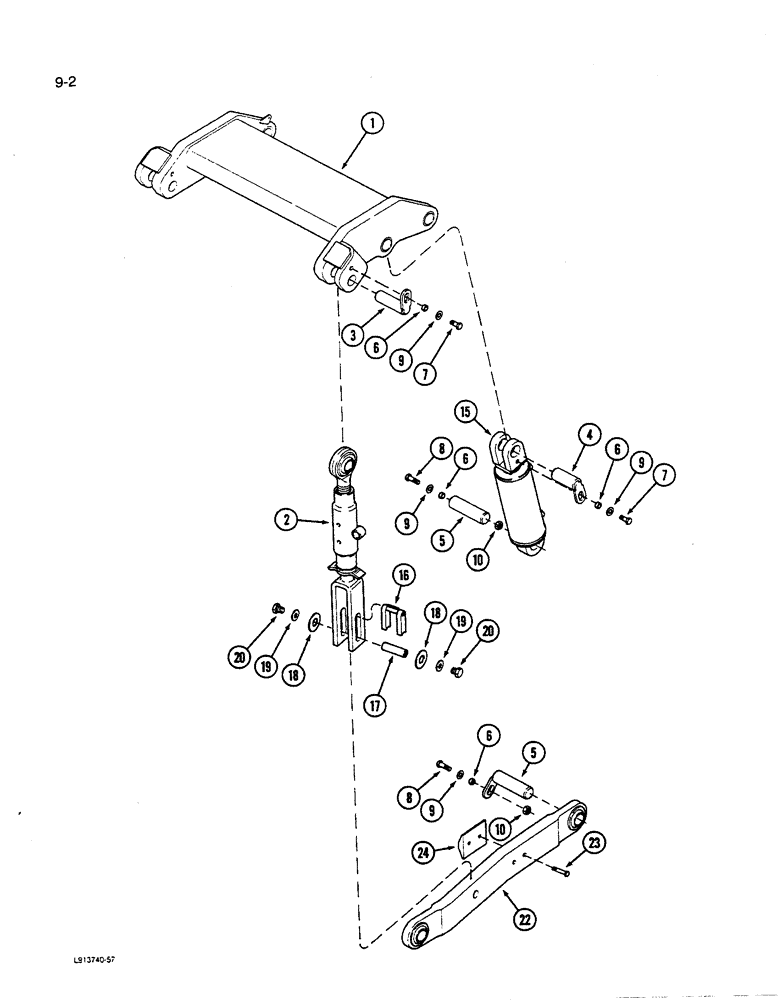

Запчасти Case IH 9280 (9-002) - HITCH CYLINDERS & LOWER LIFT ARMS (09) - CHASSIS/ATTACHMENTS

35-1828T92

HITCH KIT - three point, electronic controlled (For tractors with factory PTO) (Machinery item)

1шт.

35-1829T92

HITCH KIT - three point, electronic controlled (For tractors with factory PTO) (Machinery item)

1шт.

35-1824T92

HITCH KIT - manual three point (For tractors equipped with factory PTO) (Machinery item)

1шт.

35-1825T92

HITCH KIT - manual three point (For tractors without factory PTO) (Machinery item)

1шт.

1

70-6009T91

ROCKSHAFT

ROCKERSHAFT ASSEMBLY - hitch (See Figure 9-6)

1шт.

2

REF

INSTRUCTION

LINK ASSEMBLY - lift (See Figure 9-8)

2шт.

3

70-6147T2

PIN

lift link, upper, flanged, 5.81 inch long

2шт.

4

70-5973T2

PIN

cylinder, upper, flanged, 3.56 inch long

2шт.

5

70-5972T2

PIN

cylinder, lower, flanged and draft arm, 7.75 inch long

4шт.

6

70-5967T1

SPACER,16.7mm ID x 22.2mm OD x 11.2mm

- pin

8шт.

7

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

- hex, 5/8 NC x 1-1/2 inch, grade 8

4шт.

8

426-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

- hex, 5/8 NC x 2 inch, grade 8

4шт.

9

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

8шт.

10

425-1010

NUT,5/8"-11, G5

4шт.

15

50-3410T91

CYLINDER ASSY.

CYLINDER ASSEMBLY - hitch lift (See Figure 8-60)

2шт.

16

REF

INSTRUCTION

BLOCK ASSEMBLY - locking clevis (See Figure 9-6 for correct block)

2шт.

17

70-2059T1

PIN

- lift link, lower

2шт.

18

495-21138

WASHER,1 1/4"

- flat, 1-1/4 x 3 x 11/64 inch

4шт.

19

495-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 9/64 inch

4шт.

20

413-1012

BOLT,Hex, 5/8" - 11 x 3/4", Gr 5

- hex, 7/8 NC x 3/4 inch

4шт.

22

70-1923T2

ROCKER ARM

ARM - draft, lift link

2шт.

23

426-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

- hex, 1/2 NC x 2-1/2 inch, grade 8

4шт.

24

70-6016T1

LARGE PLATE

PLATE - wear

2шт.

70-4633T1

SHIM

fits between wear plates

1шт.
