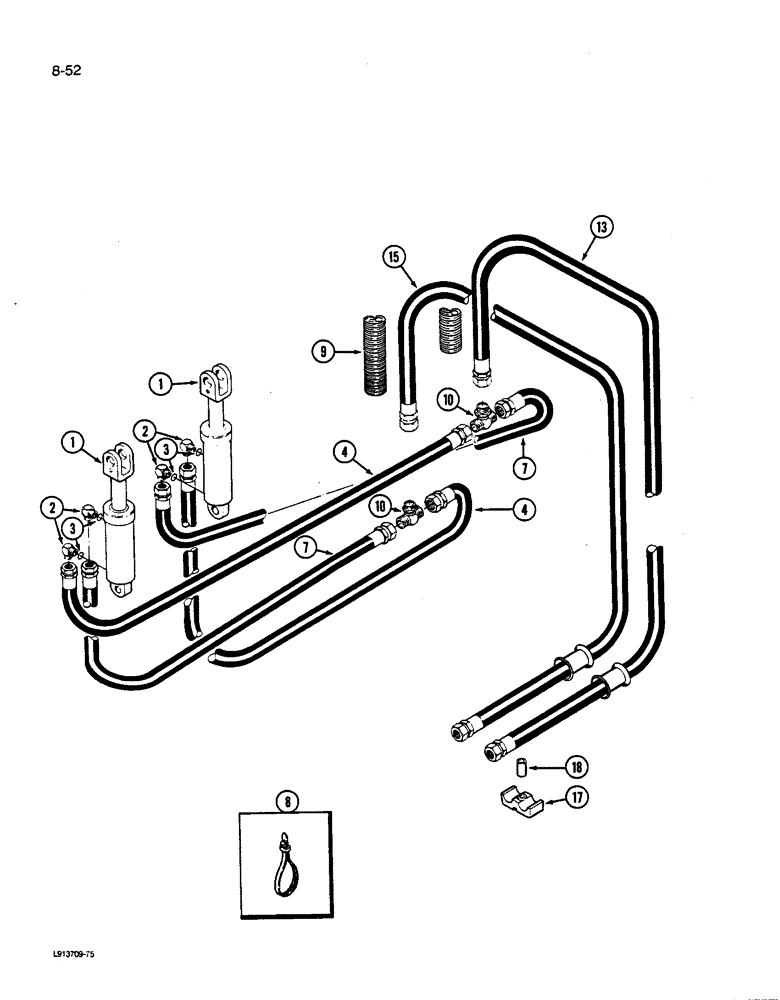

Запчасти Case IH 9280 (8-052) - 3-PT HITCH HYDRAULICS ELECTRIC CONTROLLED HITCH SYSTEM (08) - HYDRAULICS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - three point hitch (See Figure 8-54)

2шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree adjustable, 3/4-16 inch thread, Includes: Ref. 3

4шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

31-2954

HOSE

-, Serial Range: tee-cylinder

2шт.

7

31-1440

HOSE

-, Serial Range: tee-cylinder

2шт.

8

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch long

6шт.

9

50-3087T1

CONDUIT

GUARD - hose, flex (59 inch) (Order S119717, Serial Range: cut-length)

2шт.

10

218-1236

TEE,3/4"-16, 37 Degree, Blkhd

adapter, 3/4-16 inch thread, Replaces: 31-2894

2шт.

13

31-2956

HOSE

hitch, valve tee to cylinder tee, 113 inch

1шт.

15

31-2997

HOSE

cylinder tee to return tube, 121 inch, Replaces: 31-2995

1шт.

17

50-3396T1

FIXING BRACKET

CLAMP - half, hose

1шт.

18

19-6249

SPACER

- clamp

1шт.
