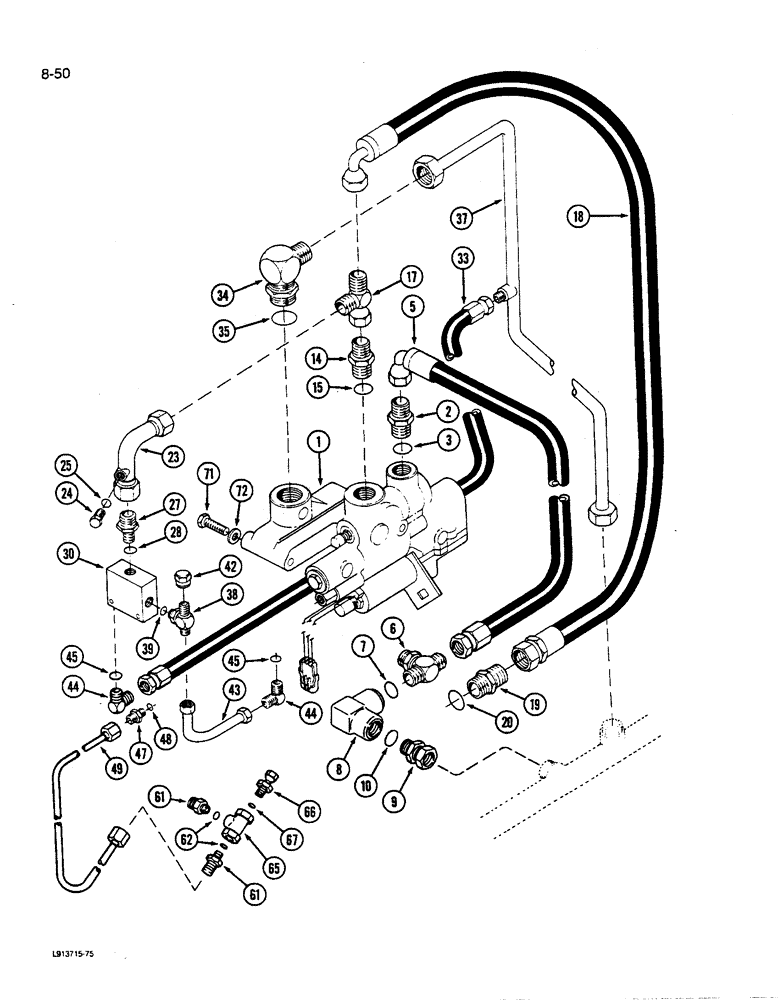

Запчасти Case IH 9280 (8-050) - 3-PT HITCH HYDRAULICS ELECTRIC CONTROLLED VALVE (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control (See Figure 8-56)

1шт.

2

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

5

31-2965

HOSE

ASSEMBLY - hitch valve to cylinder lift line

1шт.

6

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 7/8-14 inch flare branch x flare x adj O-ring boss, Includes: Ref. 7

1шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

8

REF

INSTRUCTION

VALVE ASSEMBLY - relief (See Figure 8-58)

1шт.

9

31-2964

TEE

ADAPTER - straight, 7/8-14 inch thread, Includes: Ref. 10

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

14

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 7/8-14 x 1-1/16-12 inch thread, Includes: Ref. 15

1шт.

15

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch

1шт.

17

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

- swivel, 7/8-14 inch thread

1шт.

18

31-2847

HOSE

- hitch control valve to control valve

1шт.

19

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch thread, Incl. Ref. 20

1шт.

20

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch

1шт.

23

50-3186T1

HYD TUBE

TUBE - hitch control valve to pressure reducing valve

1шт.

24

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 25 Hex Hd, 9/16"-18 ORB

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

27

218-5360

HYD CONNECTOR,7/8"-14, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, 7/8-14 x 9/16-18 inch thread, Includes: Ref. 28

1шт.

28

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

30

REF

INSTRUCTION

VALVE ASSEMBLY - pressure reducing (See Figure 8-58)

1шт.

33

31-1668

HOSE

- pressure reducing valve to drain tube, 14 inch

1шт.

34

218-5118

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

- 90 degree adjustable, 1-1/16 x 1-5/16 inch thread, Includes: Ref. 35

1шт.

35

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

37

50-3195T1

HYD TUBE

TUBE - hitch control valve to drain tube

1шт.

38

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- adjustable, 9/16-18 inch thread, Includes: Ref. 39

1шт.

39

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

42

218-754

CAP,37 Degree, 9/16"-18

- hex, 9/16 inch NF

1шт.

43

50-3111T1

HYD TUBE

TUBE - pressure reducing valve to hitch control valve

1шт.

44

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree adjustable , 9/16-18 inch thread, Includes: Ref. 45

2шт.

45

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

47

218-5318

HYD CONNECTOR,9/16"-18, 37 Degree x 1/2"-20, O-Ring

ADAPTER - straight, 1/2-20 x 9/16-18 inch thread, Includes: Ref. 48

1шт.

48

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.

49

50-3204T1

HYD TUBE

TUBE - hitch control valve to shuttle valve

1шт.

61

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

ADAPTER - straight, 9/16-18 x 7/16-20 inch thread, Includes: Ref. 62

2шт.

62

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

65

31-1778

VALVE

ASSEMBLY - shuttle

1шт.

66

218-5268

HYD CONNECTOR,7/16" - 20 ORB x 1/4" - 18 NPT

ADAPTER - adjustable, 1/4 PT x 7/16 inch thread, Includes: Ref. 67

1шт.

67

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

71

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

72

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

35-1828T92

HITCH KIT - three point, electronic controlled (when tractor is equipped with PTO system) (Machinery item)

1шт.

For the part #'s 35-1828T92 / 35-1829T92, the installation instructions are P/N 8-82040.

1шт.

35-1829T92

HITCH KIT - three point, electronic controlled (when tractor is equipped without PTO system) (Machinery item)

1шт.

For the part #'s 35-1828T92 / 35-1829T92, the installation instructions are P/N 8-82040.

1шт.
